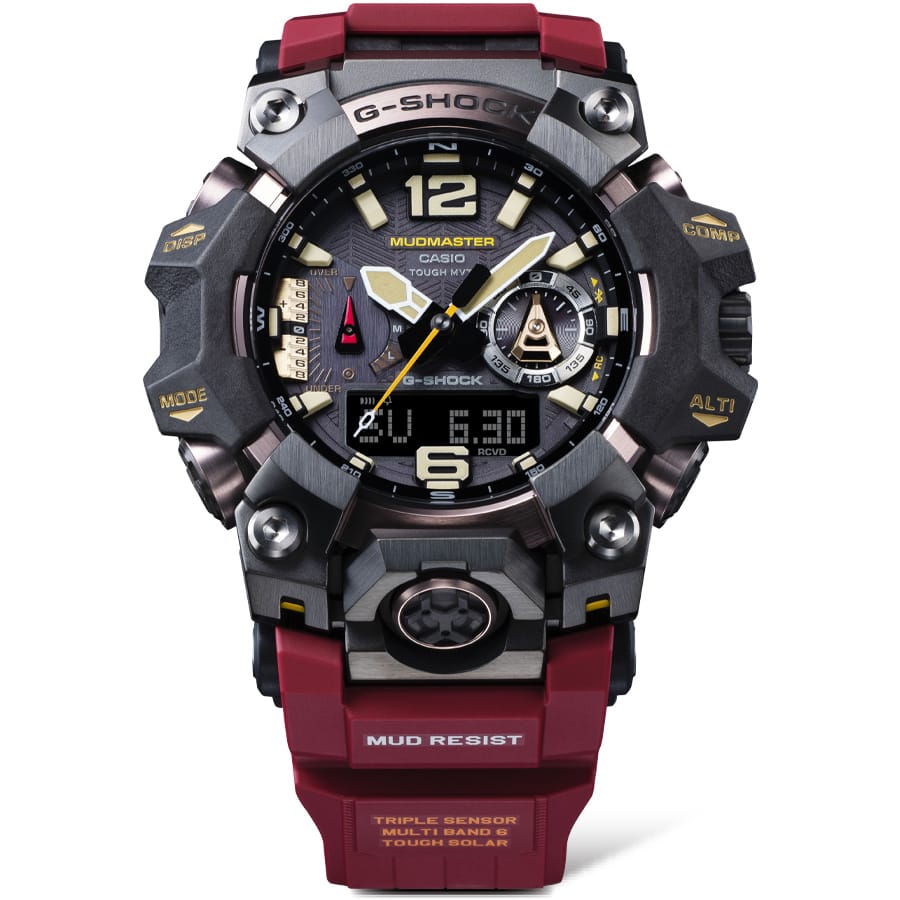

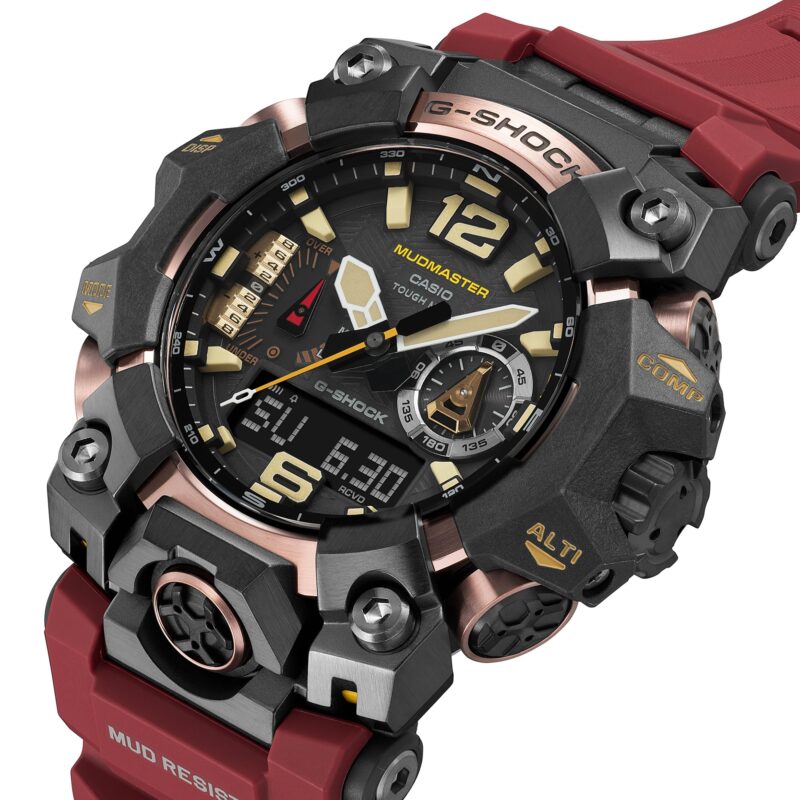

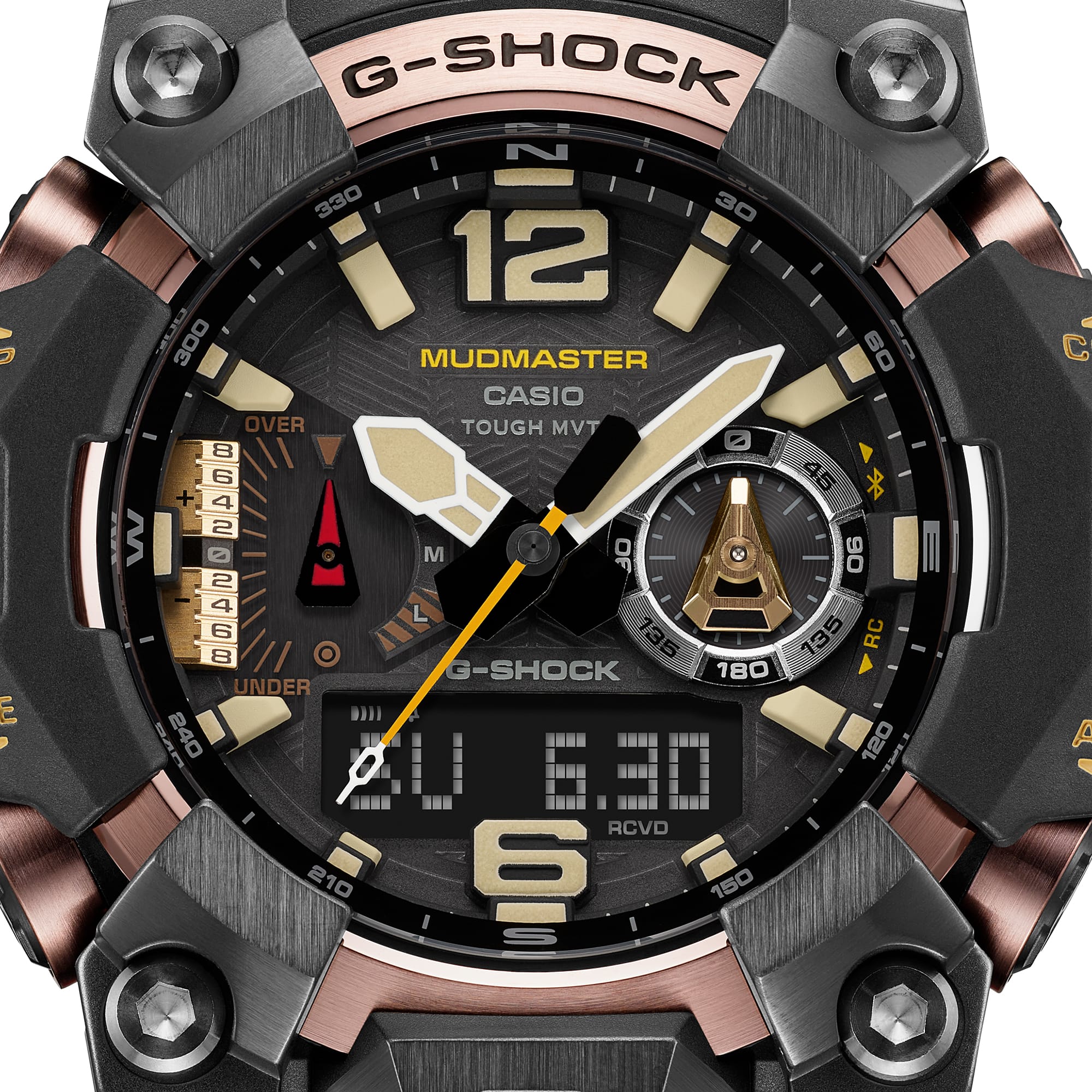

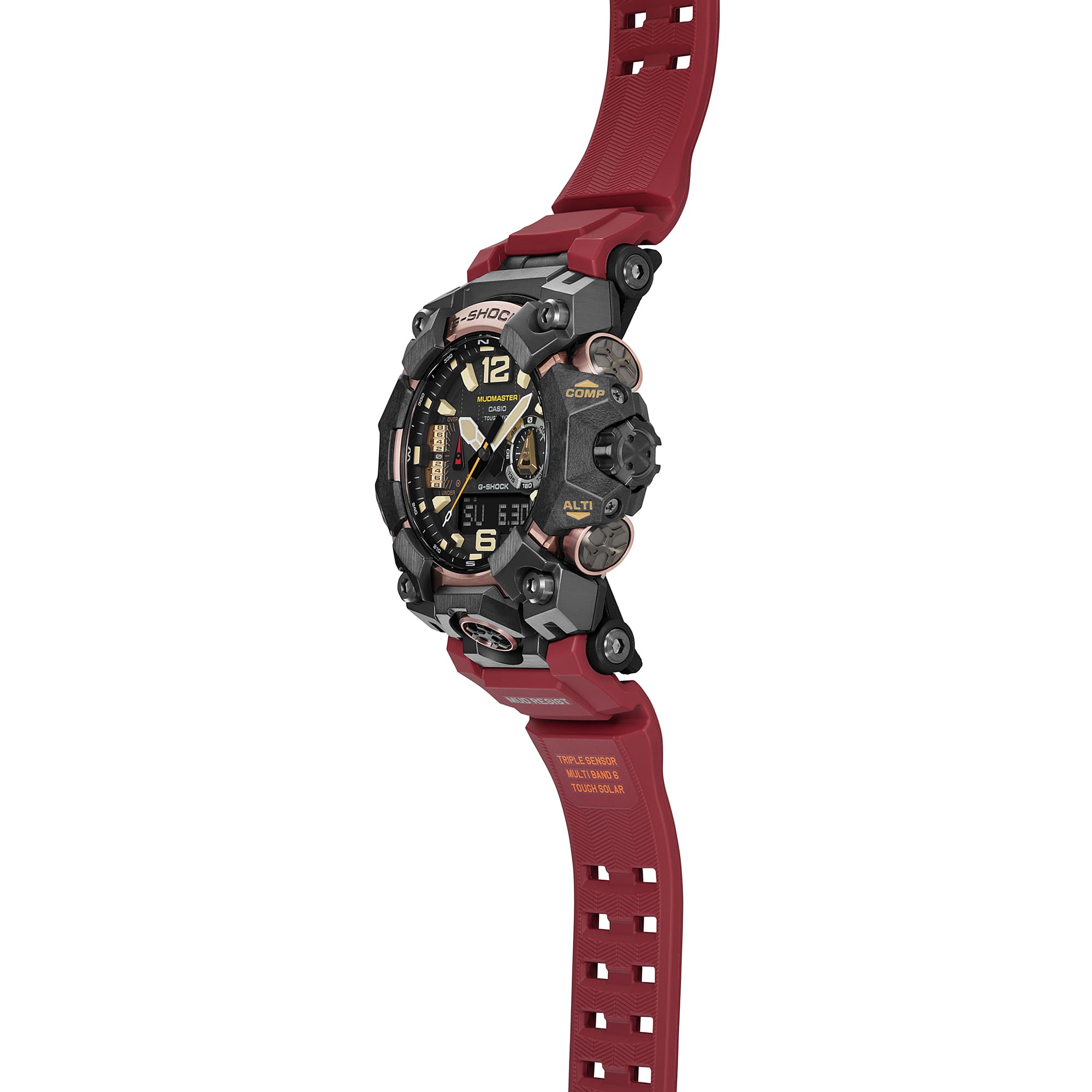

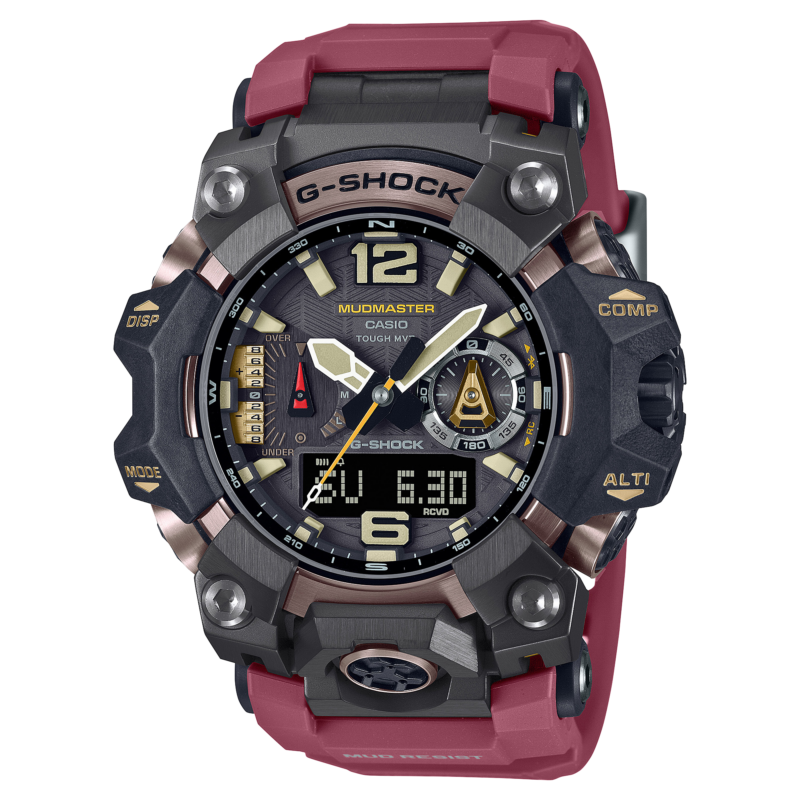

Experience extreme adventures with the GWG-B1000 from the G-SHOCK Mudmaster series.
Designed to resist even the most difficult situations, this Master of G is particularly resistant to impacts, dust and mud thanks to the seal system and the completely redesigned protection structure which integrates components made of different materials: for the exterior in metal High-precision forging techniques are used, while the case is made of resin reinforced with carbon fiber.
The watch is equipped with a triple sensor that provides data on altitude, barometric pressure and temperature to follow you everywhere. And with the position indicator you will always follow the correct direction, even when visibility is limited.
The functions of this model are completed by solar charging and the radio control and smartphone connectivity system for greater precision and reliability.
The double LED lights and sapphire glass also guarantee high readability, so you can always see the time and other data in all light conditions.
For greater attention to the environment, the case, bezel and strap are made of bio-based resins
*Due to the characteristics of carbon fiber reinforced resin, the pattern and color tone that appears on the surface will vary model by model.
Case dimensions (H x W x D)
58.7 × 52.1 × 16.2 mm
Weight
114 g
Case and bezel material
Bio-based resin/Stainless steel

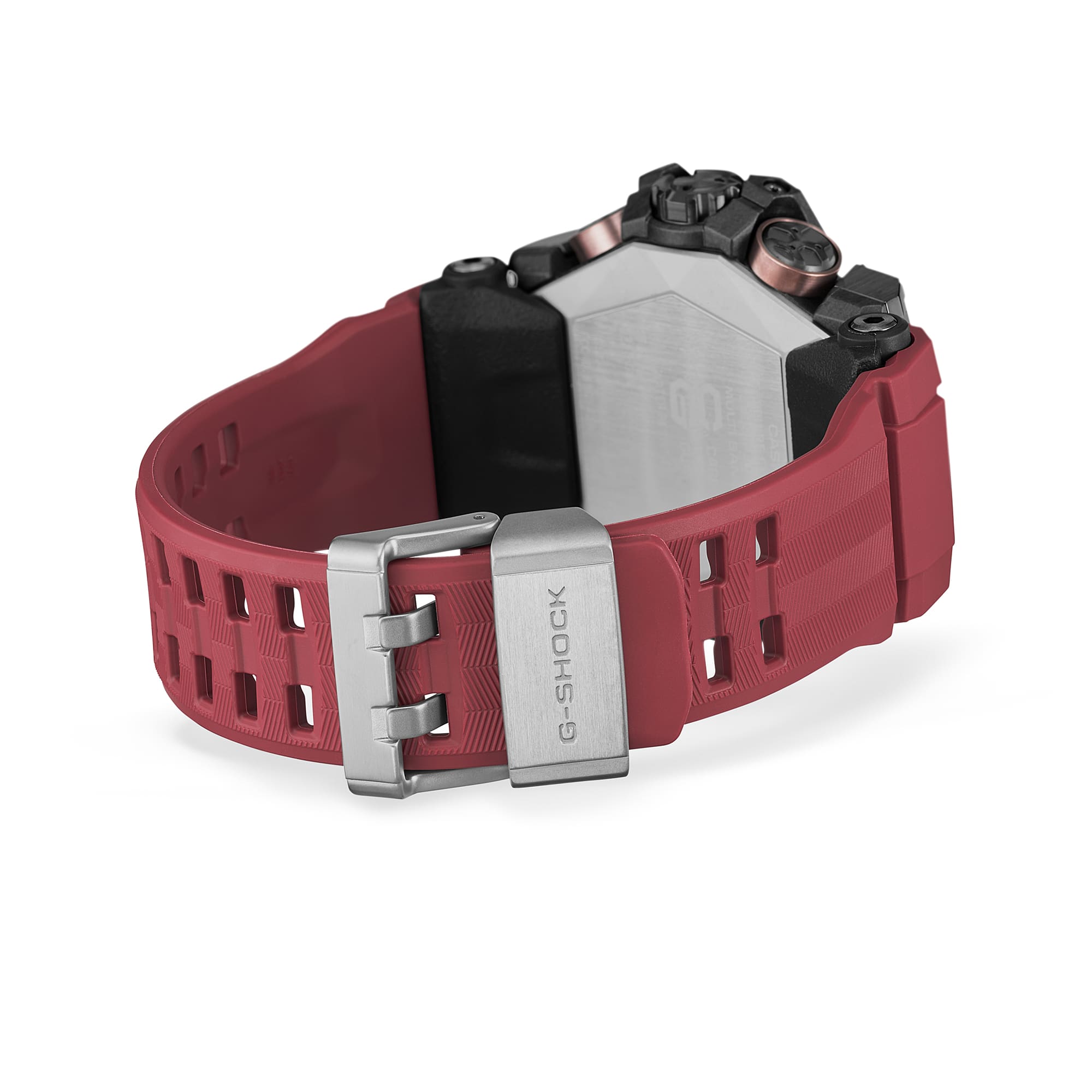

Strap
Stainless steel strap bio-based resin
Structure
Shock resistant
Vibration resistant
Mud resistant

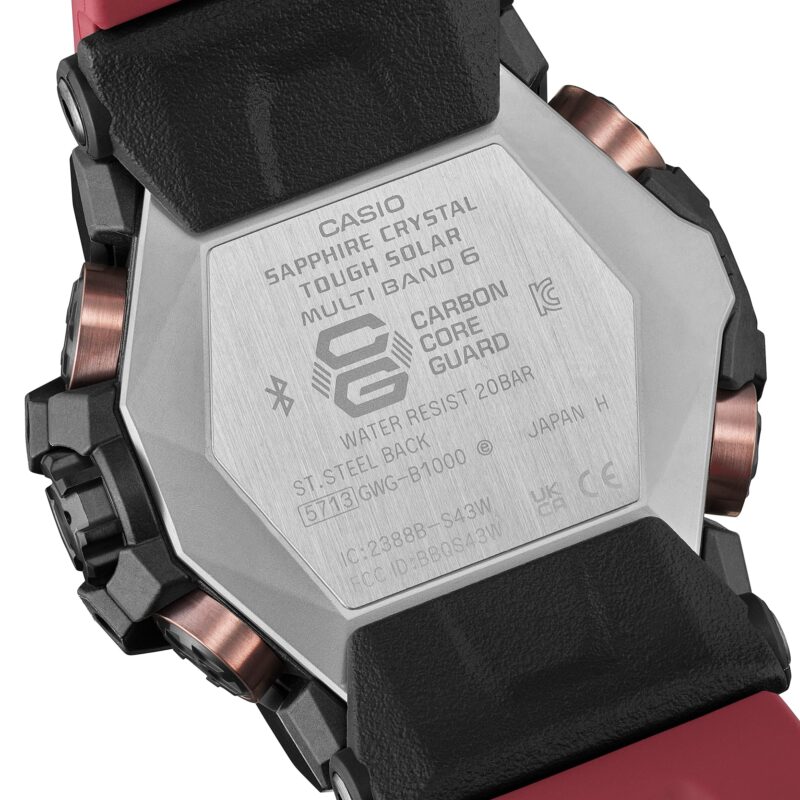

Structure Carbon Core Guard
Water resistance
Water resistant up to 20 bar
Time adjustment
Radio controlled watch; Multi Band 6
Bluetooth: connects to a smartphone and automatically adjusts the time
Power and battery life
Tough Solar (solar powered)< /div>
Sensor function

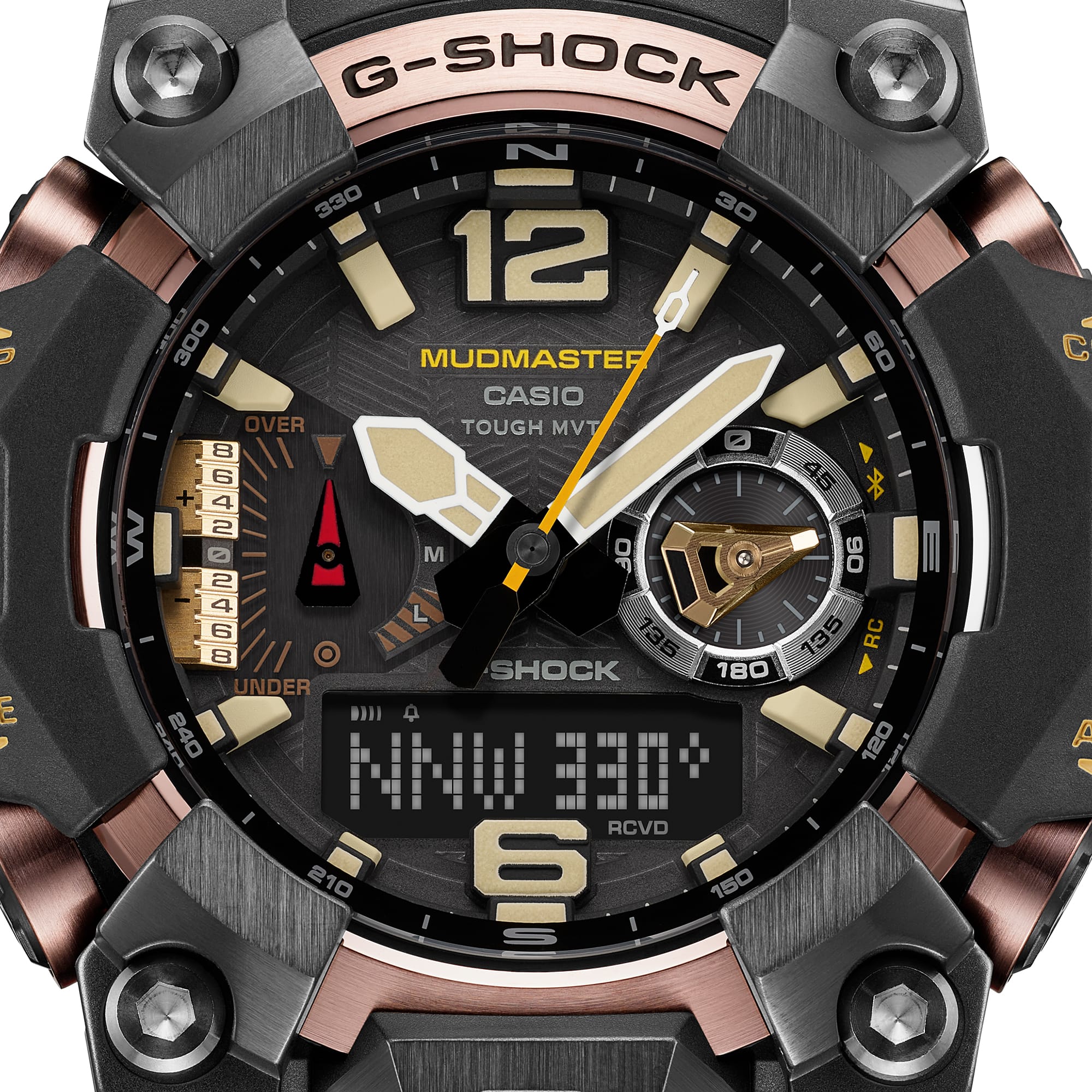

Compass function:
16 directions/direction angle measurement (0-359°), continuous direction measurement (60 seconds), north direction guideline function.
Direction memory function. Automatic horizontal, magnetic declination and orientation calibration function.

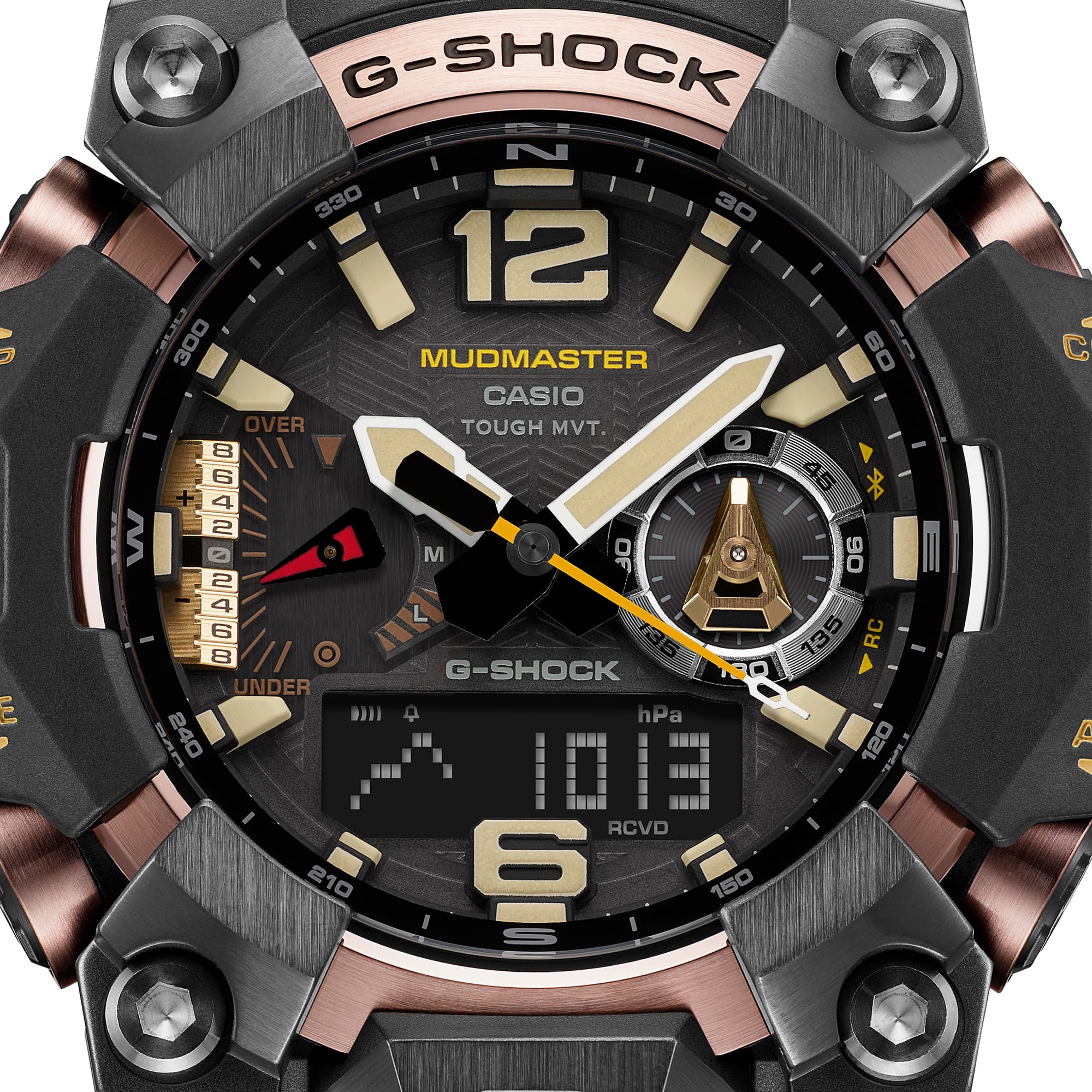

Barometric pressure measurement function
(measurement range: 260~1,100 hPa (7.65~32.45 inHg), 1hPa (0.05 inHg)),
Barometric pressure trend graph display (last 20 hours display), pressure difference indicator (±10hPa)
Barometric pressure trend information alert (change in an air pressure characteristic is notified via arrows and audible alert)
The pressure trend graph can be changed to take a measurement every 30 minutes.
This is for the last 5 hours.
*Conversion between hPa and inHg

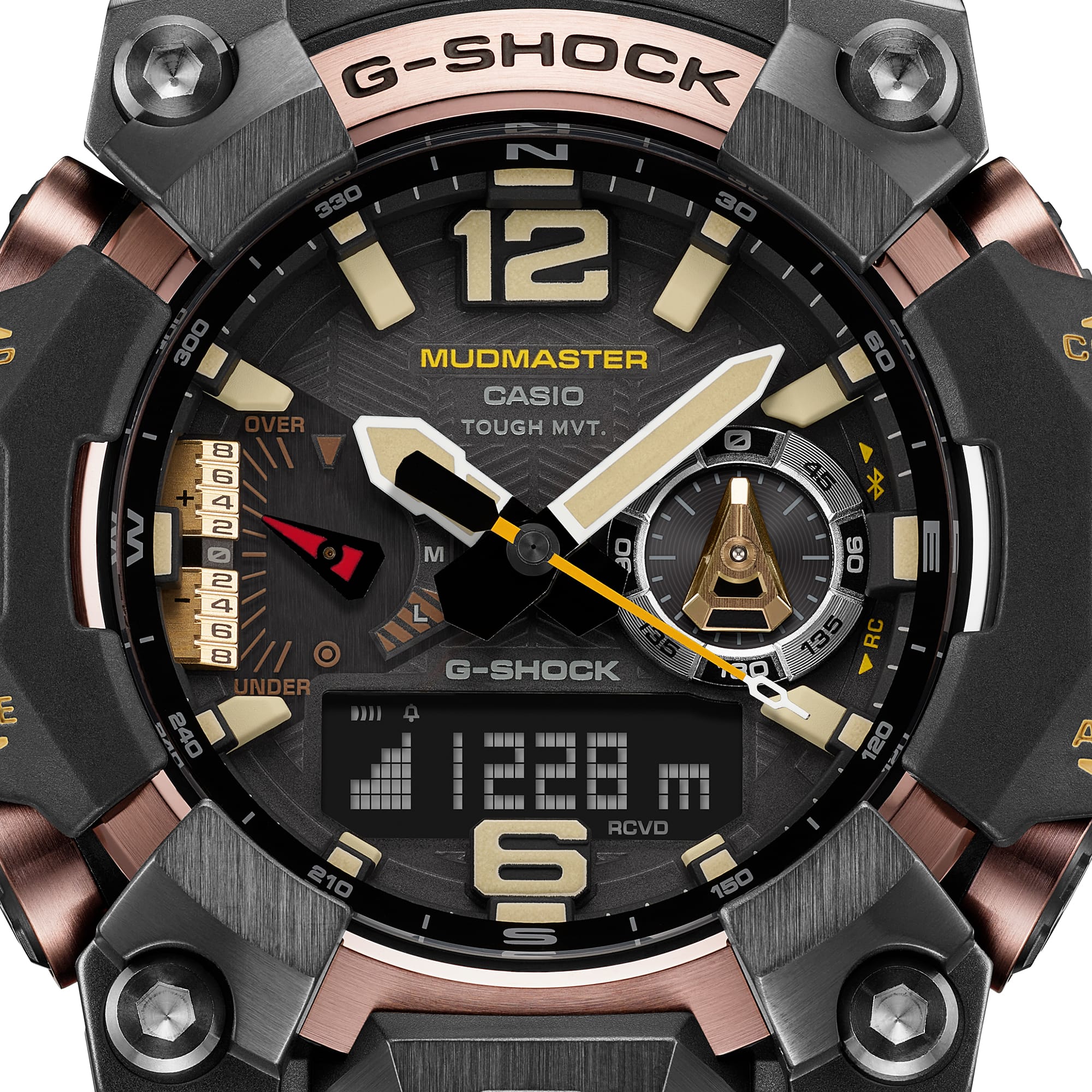

Altitude measurement/relative altimeter function
(Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft), in units of 1 m (5 ft))
Advanced memory (up to 30 manual memories of date, month, measurement time and altitude),
Automatic recording data (maximum/minimum altitude, automatic accumulation memory (ascent/descent))
Altitude trend graph, altitude difference indicator (±100 m/±1,000 m)
Measurement interval setting function (every 5 seconds/2 minutes)
*Every second for the first 3 minutes only
*Conversion between meters (m) and feet (ft)

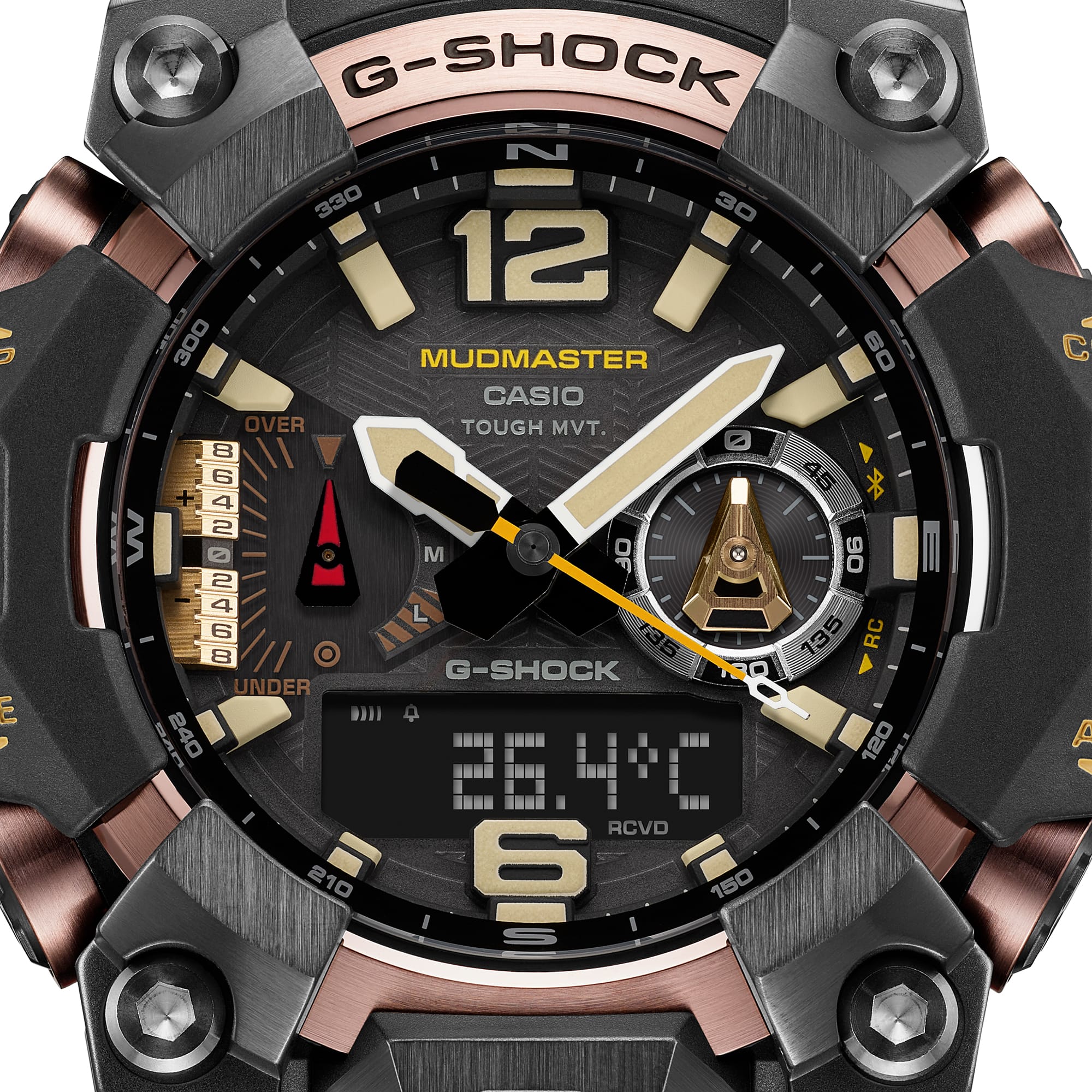

Temperature measurement function
(Measuring range: -10 to 60°C (14°F to 140°F), 0.1°C (0.2°F))
*Conversion between Celsius (℃) and Fahrenheit (℉)
Smartphone connection function
Mobile Link (wireless connection via Bluetooth®)
App
h2>CASIO WATCHES
App connection function
Automatic watch adjustment
Easy setting of the watch
World time in approximately 300 cities
About the app
Time and location
Mission log
Location indicator
Location Memory
Customizing display mode/switching
Automatic altitude calibration
Find phone
Glass
Sapphire glass with anti-reflective coating
Crown
Crown with screw closure
Treatment of surface
DLC-coated bezel
Rose gold ion-plated bezel
Adjustable strap
From 145 to 215 mm
Miscellaneous
Neobrite
World time
World time
38 time zones (55 cities + Coordinated Universal Time), daylight saving time on/off, automatic daylight saving time (DST) switching, switching between your Home City and World Time City div>
Sunrise and sunset display
Sunrise and sunset time display
Sunrise and sunset time for specific date
Stopwatch
Hundredths of a second stopwatch
Measuring capacity: 23:59’59.99”
Measurement modes: elapsed time, split time, 1st and 2nd place times
Timer
Countdown timer
Unit of measurement: 1 second
Countdown interval: 60 minutes
Countdown start time setting range: 1 minute to 60 minutes (1 minute increments)
Audible Reminder / Time Tone
5 daily audible reminders
Time signal

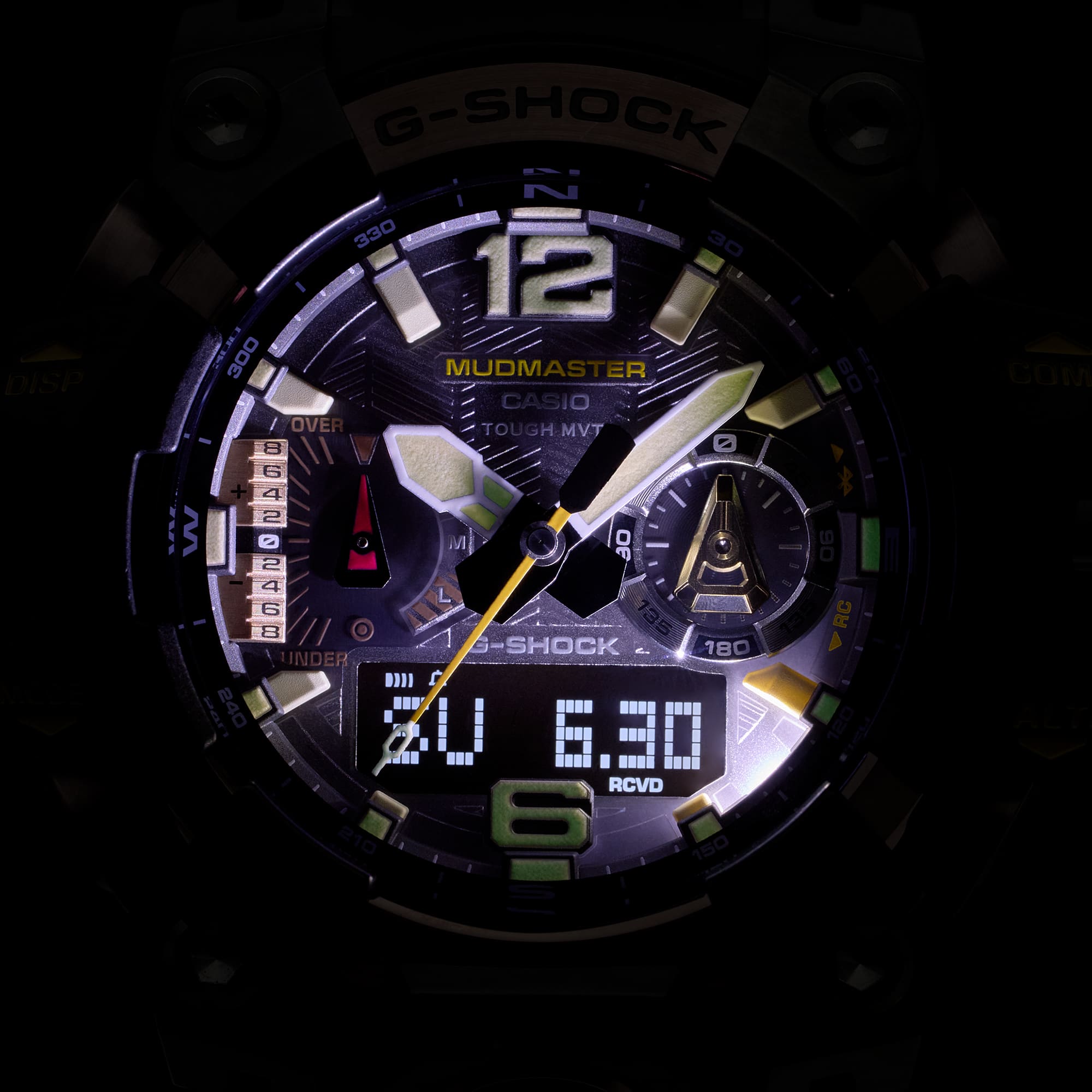

Light
Double LED light
LED light for the dial (fully automatic LED illumination, Super Illuminator, selectable illumination duration (1.5 or 3 seconds), luminescence)
LED backlight for the digital display (fully automatic LED lighting, Super Illuminator, selectable lighting duration (1.5 or 3 seconds), luminescence)
Light color
LED: white
Light color
LED: white
Calendar
Full automatic calendar (up to the year 2099)
Mute the volume
Turn the signal on/off acoustic button pressing
Correction of the initial position of the hand
Automatic correction of the initial position of the hands
Energy saving function
Energy saving (the display turns off and the hands stop to save energy when the watch is left in the dark)
Battery status display/alert
Battery level indicator battery
Ride timing
Approximate battery run time:
6 months with rechargeable battery (operation period for normal use without exposure to light after charging)
24 months with rechargeable battery (operating period when stored in completely dark conditions with the energy saving function activated after a full charge)
Accuracy
Accuracy: ±15 seconds per month (without signal calibration and Mobile Link function)
Other features
12/24 hour format
Hand movement function (the hands move so as not to block the display of the contents of the digital display).
Regular timekeeping:
Analog: 3 hands (hour, minute (hand moves every 10 seconds), second),
2 dials
Digital: hour, minute, second, pm, month, date, day
Time adjustment details
Time calibration signals
Station Name: DCF77 (Mainflingen, Germany)
Frequency: 77.5kHz
Station Name: MSF (Anthorn, England)
Frequency: 60.0kHz
Station Name: WWVB (Fort Collins, United States)
Frequency: 60.0kHz
Station Name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima)/60.0 kHz (Fukuoka/Saga)
Station Name: BPC (Shangqiu City, Henan Province, China)
Frequency: 68.5 kHz
Time calibration signal reception
Automatic reception up to six* times a day (remaining automatic receptions are canceled when successful)
*5 times a day for Chinese calibration signal
Manual reception
The latest results of signal reception

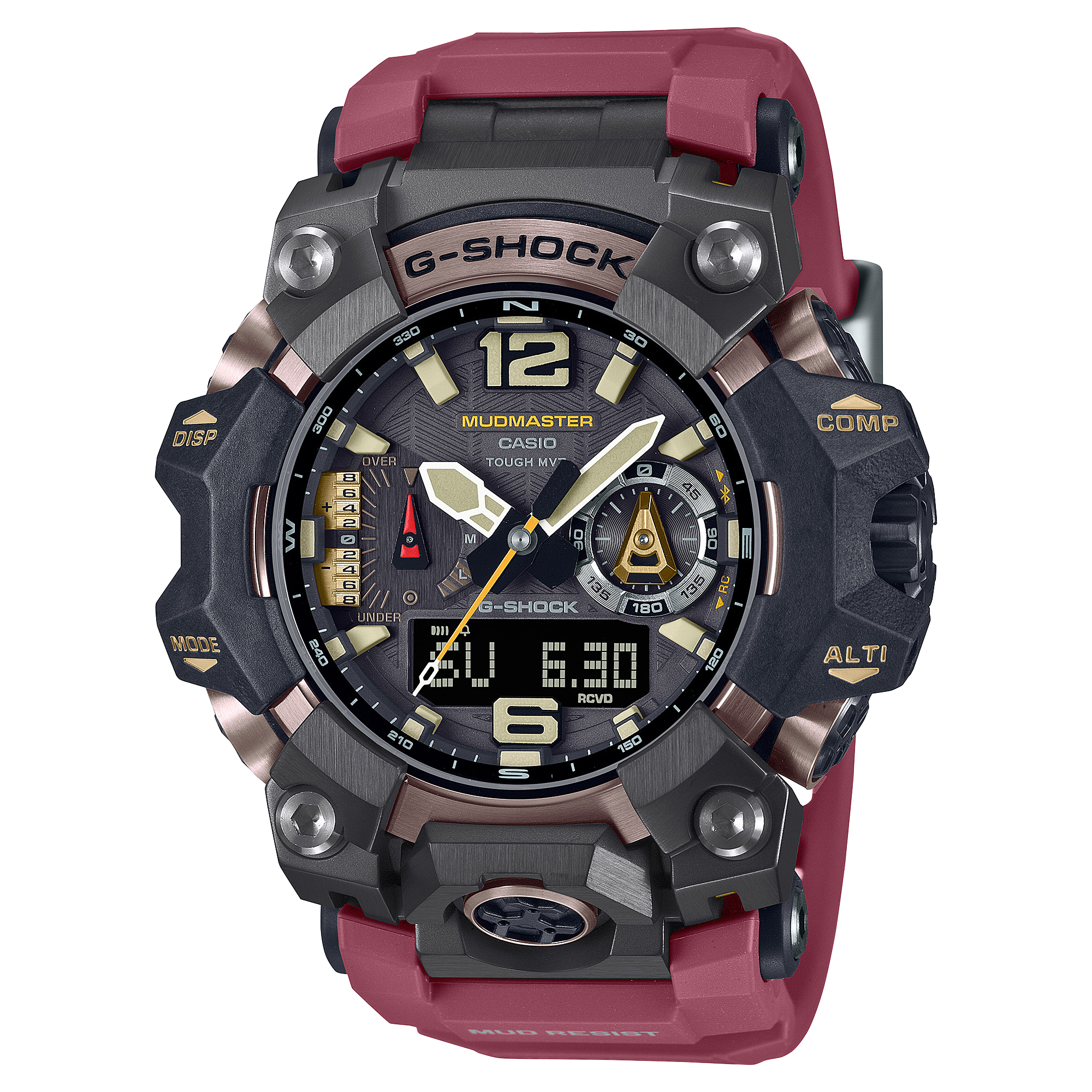

GWG-B1000-1A4
Case dimensions (H x W x D)
58.7 × 52.1 × 16.2 mm
Weight
114 g
Case and bezel material
Bio-based resin/Stainless steel
Strap
Stainless steel strap bio-based resin
Structure
Shock resistant
Vibration resistant
Mud resistant
Structure Carbon Core Guard
Water resistance
Water resistant up to 20 bar
Time adjustment
Radio controlled watch; Multi Band 6
Bluetooth: connects to a smartphone and automatically adjusts the time
Power and battery life
Tough Solar (solar powered)< /div>
Sensor function
Compass function:
16 directions/direction angle measurement (0-359°), continuous direction measurement (60 seconds), north direction guideline function.
Direction memory function. Automatic horizontal, magnetic declination and orientation calibration function.
Barometric pressure measurement function
(measurement range: 260~1,100 hPa (7.65~32.45 inHg), 1hPa (0.05 inHg)),
Barometric pressure trend graph display (last 20 hours display), pressure difference indicator (±10hPa)
Barometric pressure trend information alert (change in an air pressure characteristic is notified via arrows and audible alert)
The pressure trend graph can be changed to take a measurement every 30 minutes.
This is for the last 5 hours.
*Conversion between hPa and inHg
Altitude measurement/relative altimeter function
(Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft), in units of 1 m (5 ft))
Advanced memory (up to 30 manual memories of date, month, measurement time and altitude),
Automatic recording data (maximum/minimum altitude, automatic accumulation memory (ascent/descent))
Altitude trend graph, altitude difference indicator (±100 m/±1,000 m)
Measurement interval setting function (every 5 seconds/2 minutes)
*Every second for the first 3 minutes only
*Conversion between meters (m) and feet (ft)
Temperature measurement function
(Measuring range: -10 to 60°C (14°F to 140°F), 0.1°C (0.2°F))
*Conversion between Celsius (℃) and Fahrenheit (℉)
Smartphone connection function
Mobile Link (wireless connection via Bluetooth®)
App
h2>CASIO WATCHES
App connection function
Automatic watch adjustment
Easy setting of the watch
World time in approximately 300 cities
About the app
Time and location
Mission log
Location indicator
Location Memory
Customizing display mode/switching
Automatic altitude calibration
Find phone
Glass
Sapphire glass with anti-reflective coating
Crown
Crown with screw closure
Treatment of surface
DLC-coated bezel
Rose gold ion-plated bezel
Adjustable strap
From 145 to 215 mm
Miscellaneous
Neobrite
World time
World time
38 time zones (55 cities + Coordinated Universal Time), daylight saving time on/off, automatic daylight saving time (DST) switching, switching between your Home City and World Time City div>
Sunrise and sunset display
Sunrise and sunset time display
Sunrise and sunset time for specific date
Stopwatch
Hundredths of a second stopwatch
Measuring capacity: 23:59’59.99”
Measurement modes: elapsed time, split time, 1st and 2nd place times
Timer
Countdown timer
Unit of measurement: 1 second
Countdown interval: 60 minutes
Countdown start time setting range: 1 minute to 60 minutes (1 minute increments)
Audible Reminder / Time Tone
5 daily audible reminders
Energy saving (the display turns off and the hands stop to save energy when the watch is left in the dark)
Accuracy: ±15 seconds per month (without signal calibration and Mobile Link function)
