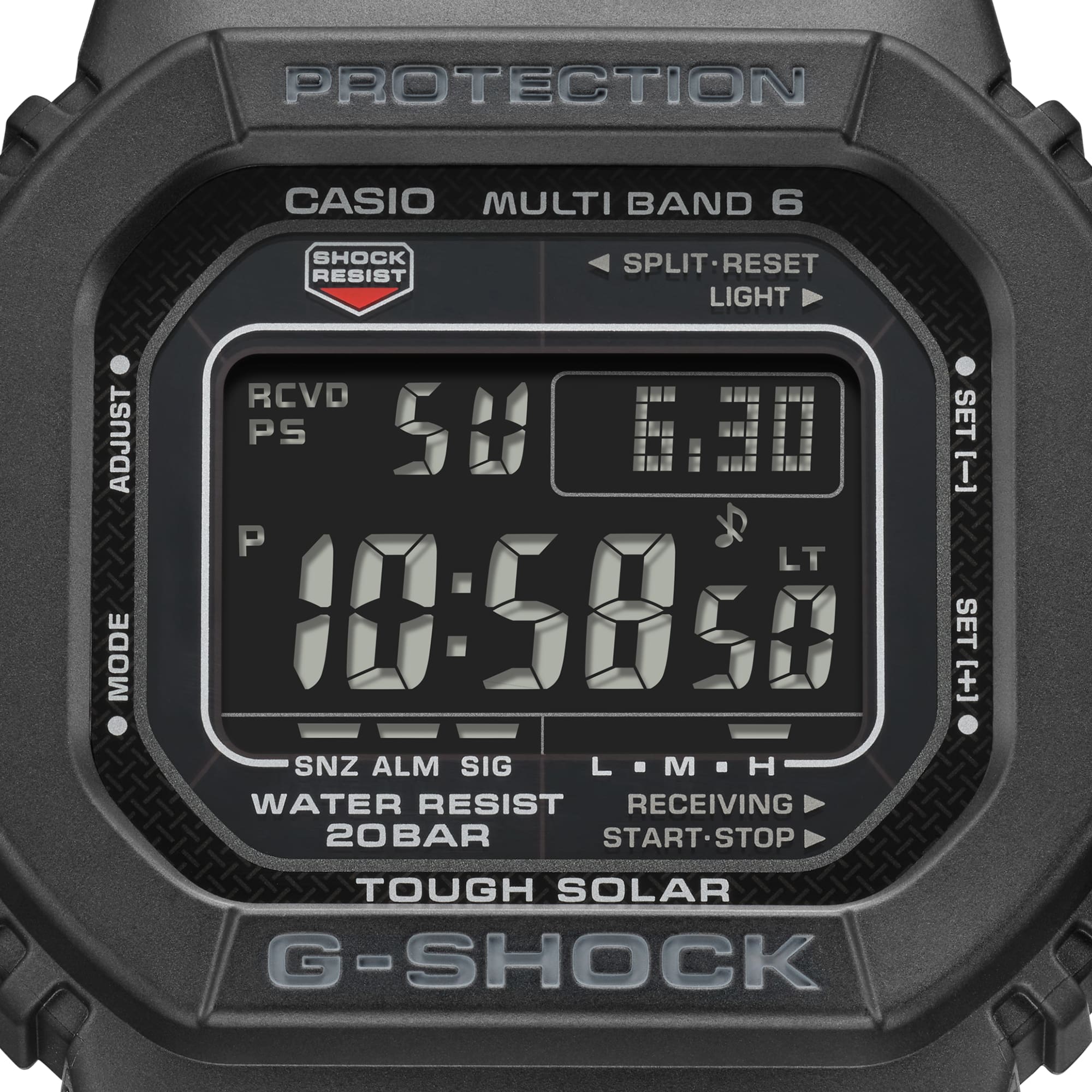

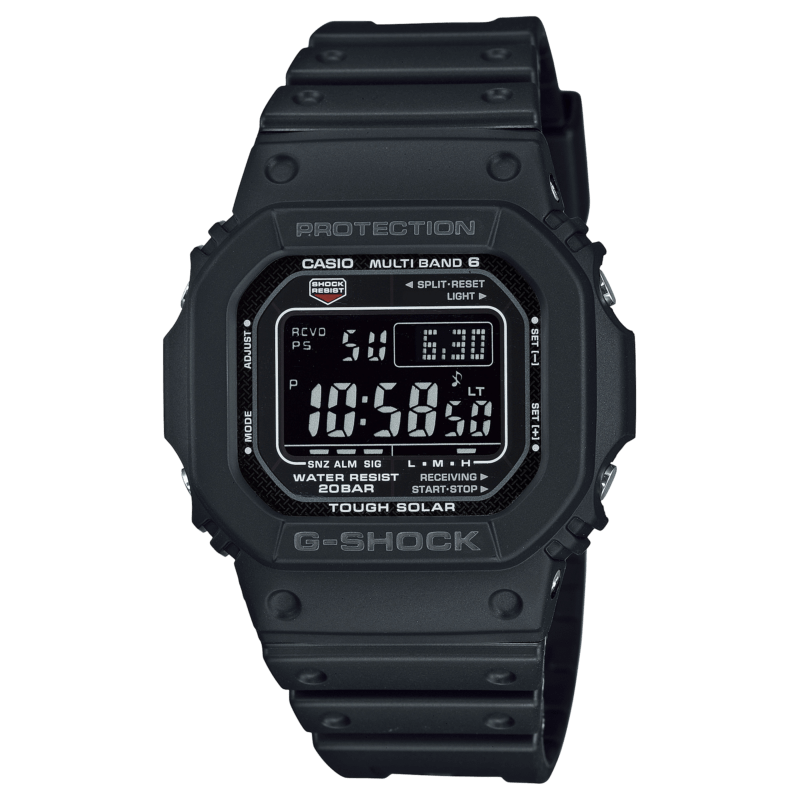

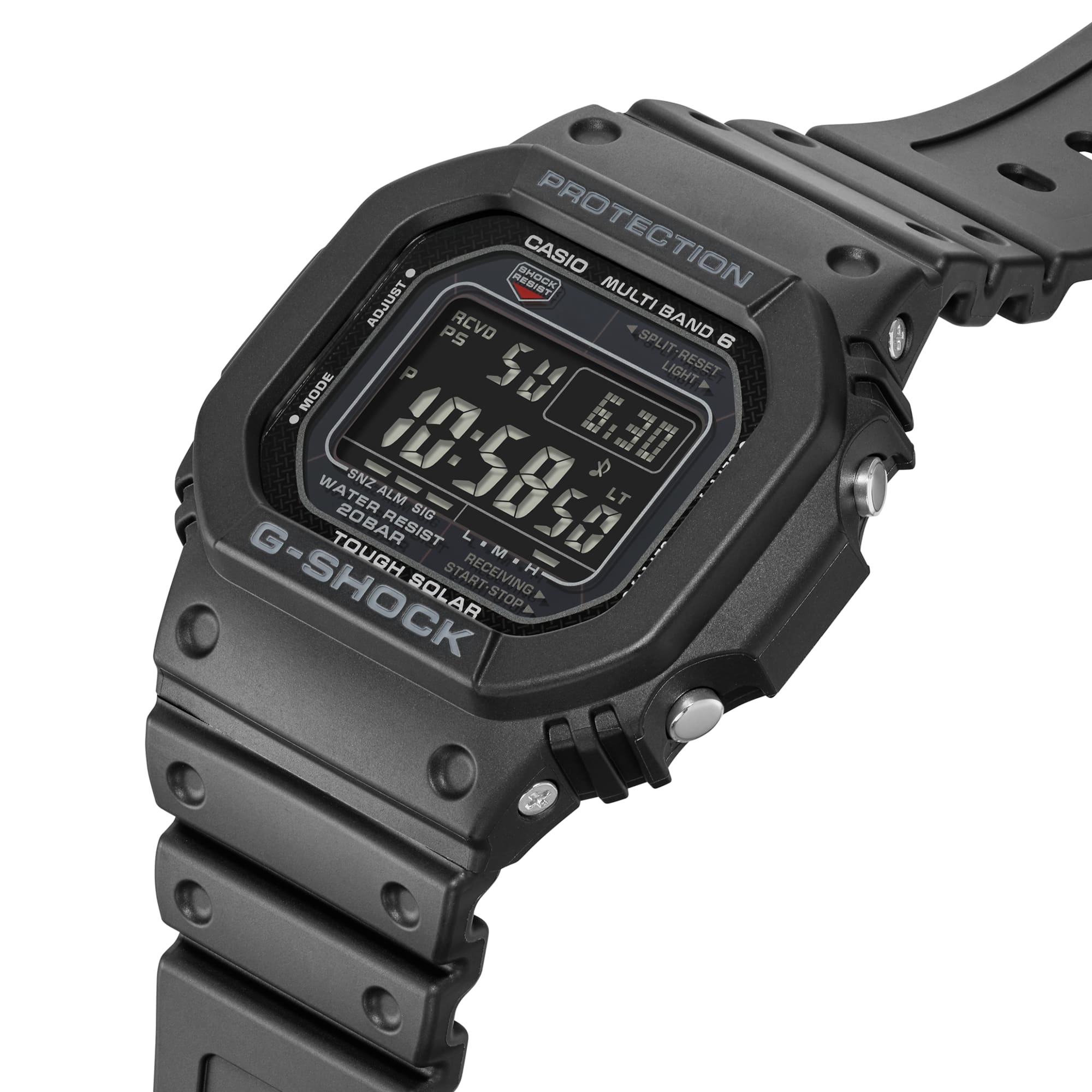

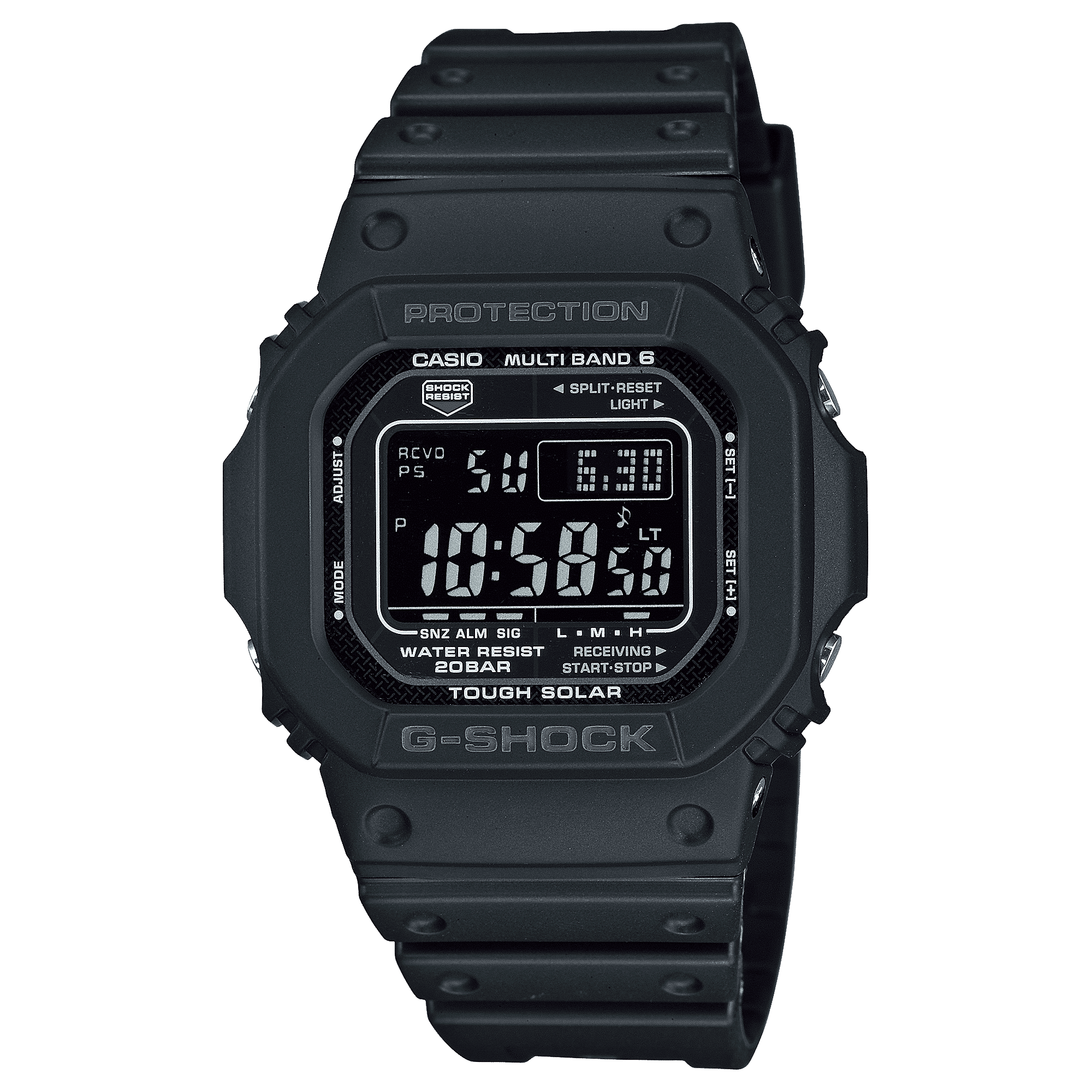

The GW-M5610 series is inspired by the iconic design of the DW-5000C, which first appeared in 1983. This popular series has evolved with features such as Tough Solar technology and Multi-Band 6. While maintaining the classic shape of the case and dial design of the original DW-5000, adds a modern touch with a black case and strap paired with an inverted LCD display. All colored sections are done in dark grey, for a sleek, monochromatic look. As G-SHOCK continues to evolve its concept of ruggedness, this model proudly takes the DNA of the first model to the next level.
Case dimensions (H x W x D)
46.7 × 43.2 × 12.7 mm
Weight
52 g
Case and bezel material
resin

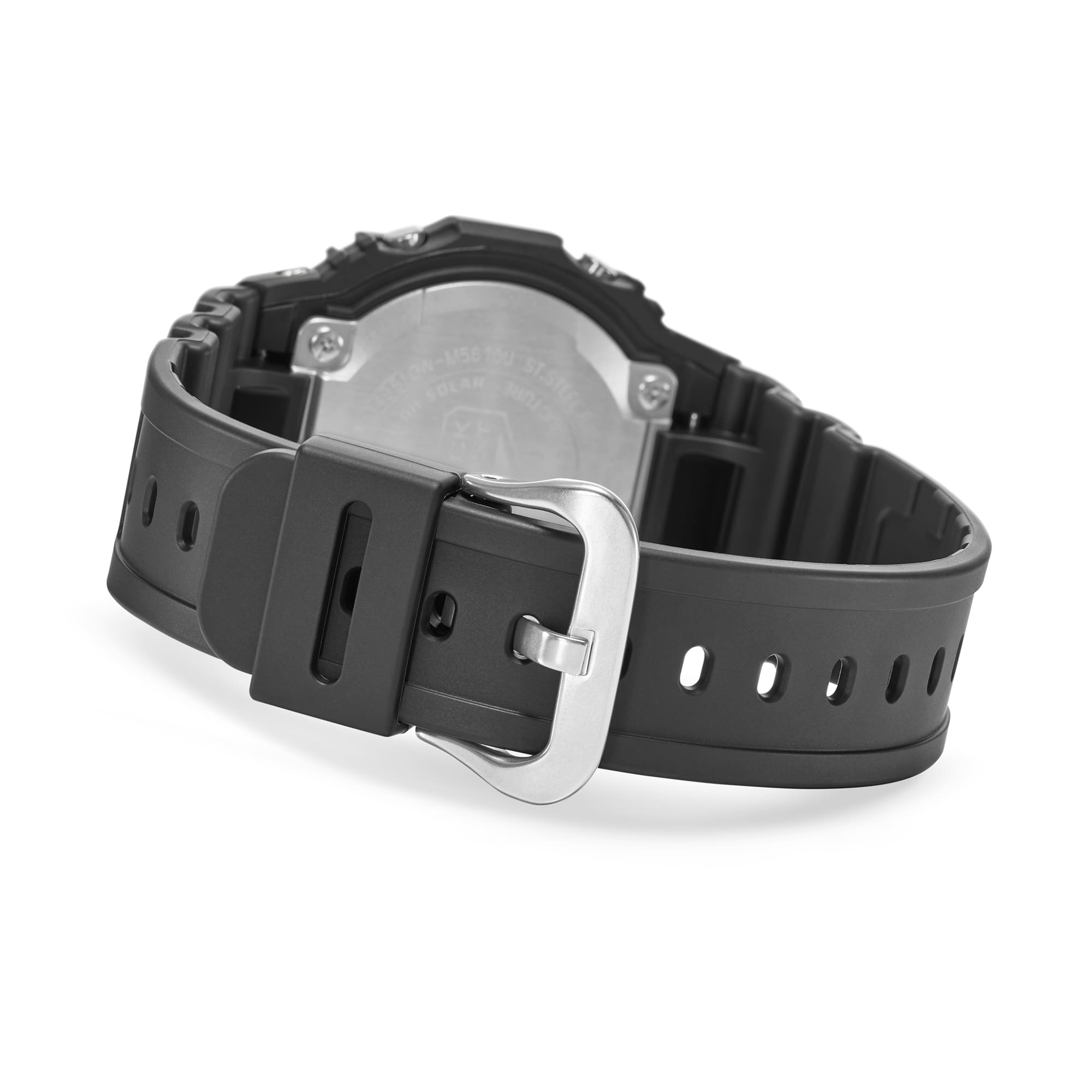

Strap
Resin strap
Structure
Shock resistant
Water resistance
Water resistant up to 20 bar
Time adjustment
Radio controlled watch; Multi Band 6
Power and battery life
Tough Solar (solar powered)
Glass
Mineral glass
World time
5 World time
31 time zones (48 cities + Coordinated Universal Time), daylight saving time on/off, switching between local time and world time
Stopwatch
Hundredths of a second stopwatch
Measuring Capability:
00’00”00~59’59”99 (for the first 60 minutes)
1:00’00~23:59’59 (after 60 minutes)
Unit of measurement:
1 hundredth of a second (for the first 60 minutes)
1 second (after 60 minutes)
Measurement modes: elapsed time, split time, 1st and 2nd place times
Timer
Countdown timer
Unit of measurement: 1 second
Countdown interval: 24 hours
Countdown start time setting range: 1 second to 24 hours (1-second increments, 1-minute increments and 1-hour increments)
Audible Reminder / Time Signal
5 daily sound reminders (with 1 delayed sound reminder)
Time signal

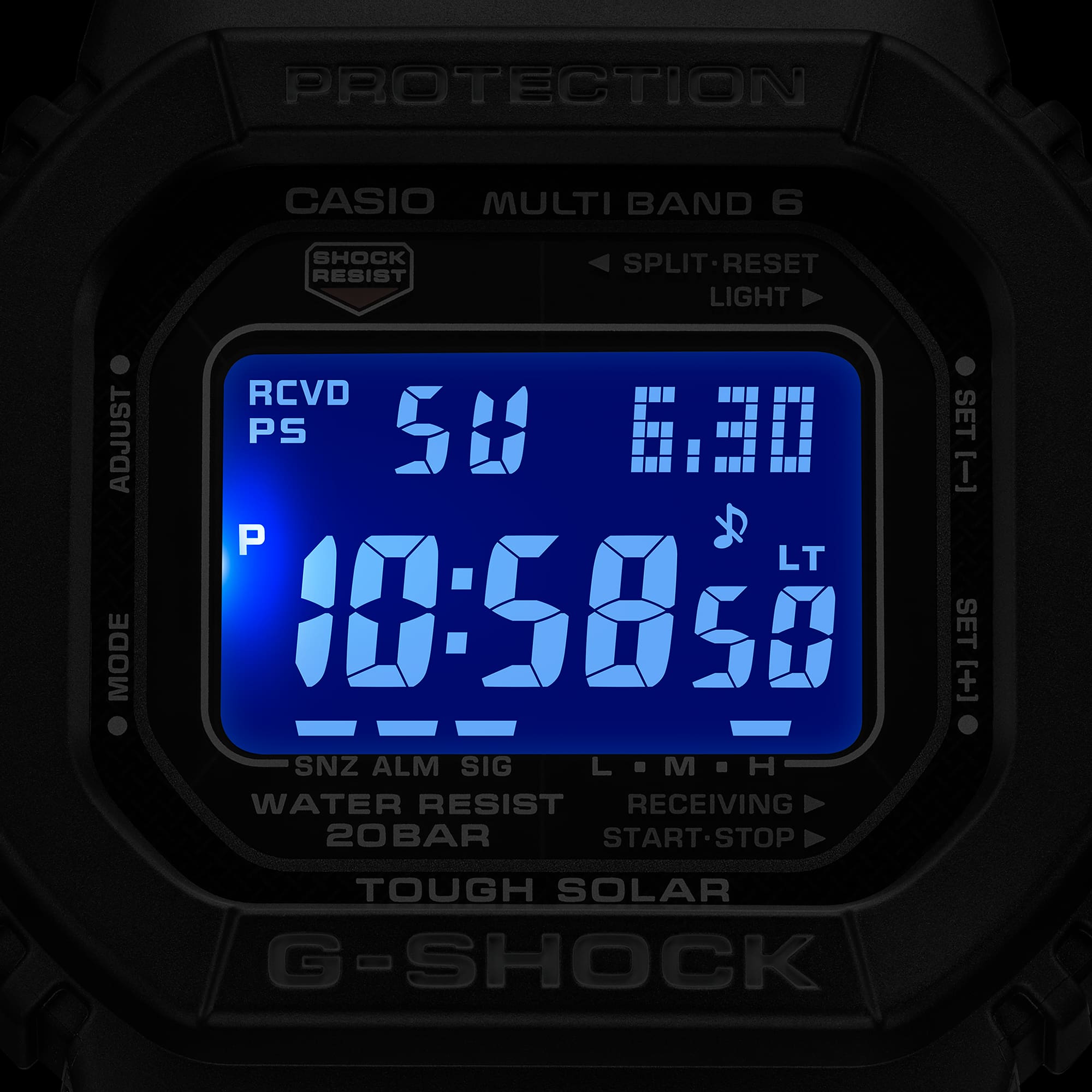

Light
LED backlight (Super Illuminator)
Fully automatic LED lighting, selectable lighting duration (1.5 seconds or 3 seconds), luminescence
Light color
LED: white
Calendar
h2>Full automatic calendar (up to the year 2099)
Muting the volume
Enabling/disabling the button press sound
Display function energy saving
Energy saving (the display turns off to save energy when the watch is left in the dark)
Battery status display/alert
Indicator battery level
Ride timing
Approximate battery run time:
10 months with rechargeable battery (operation period for normal use without exposure to light after charging)
22 months with rechargeable battery (operating period when stored in completely dark conditions with the energy saving function activated after a full charge)
Accuracy
Accuracy: ±15 seconds per month
Other features
12/24 hour format
Date/month display switching
Day display (days of the week selectable in six languages )
Regular timekeeping:
hour, minute, second, pm, month, date, day
Time adjustment details
Receiving the time calibration signal
Automatic reception up to six* times a day (remaining automatic receptions are canceled when successful)
*5 times a day for Chinese calibration signal
Manual reception
The latest signal reception results
Time calibration signals
Station Name: DCF77 (Mainflingen, Germany)
Frequency: 77.5kHz
Station Name: MSF (Anthorn, England)
Frequency: 60.0kHz
Station Name: WWVB (Fort Collins, United States)
Frequency: 60.0kHz
Station Name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima)/60.0 kHz (Fukuoka/Saga)
Station Name: BPC (Shangqiu City, Henan Province, China)
Frequency: 68.5 kHz
GW-M5610U-1B
