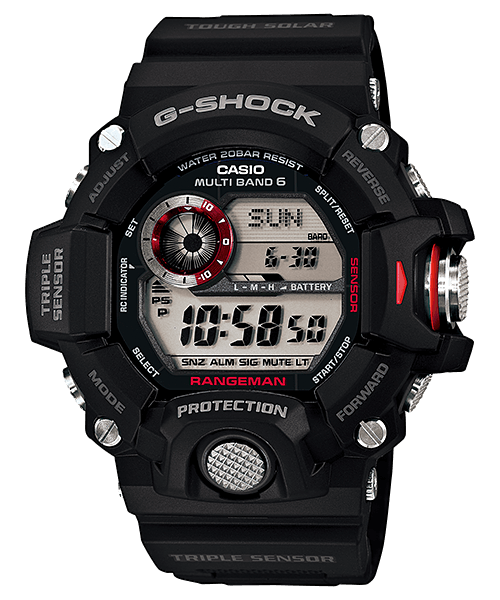

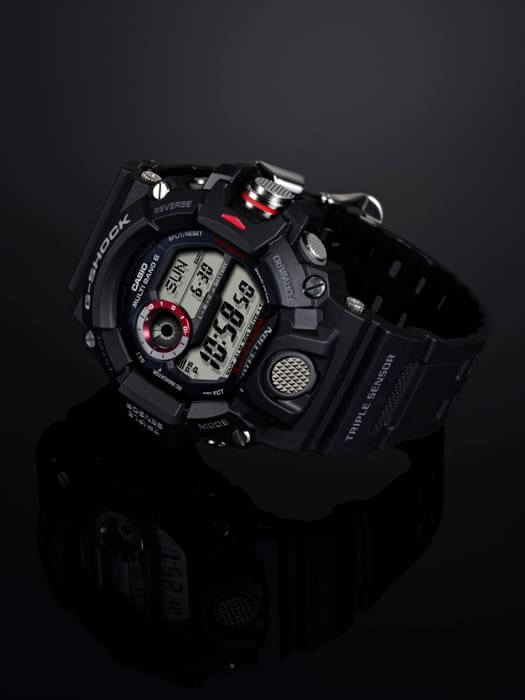

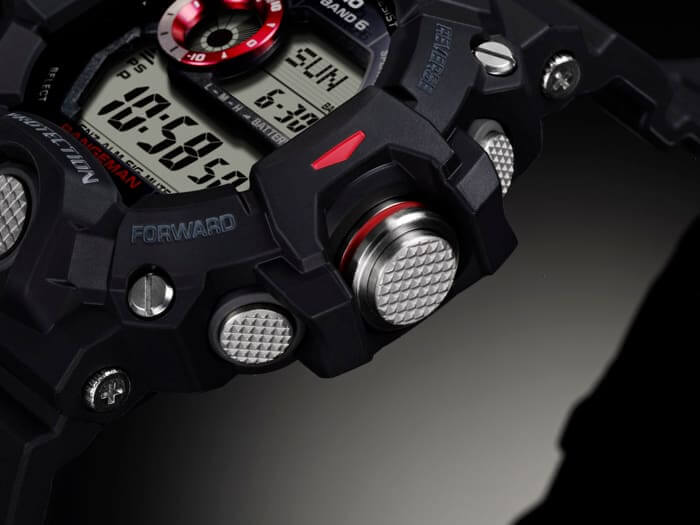

Introducing RANGEMAN, the latest addition to the Master of G series of solid and durable watches, designed and engineered to withstand the most extreme conditions imaginable. RANGEMAN is equipped with a triple sensor that makes it able to keep altitude, barometric pressure, temperature and direction readings at your fingertips. Cylindrical buttons offer exceptional operation and better shock resistance. The frequently used sensor button (center right) has a metal coating that protects it from side impact and prevents foreign objects from entering. Pressing the sensor button in any mode takes you directly to a sensor screen. Each sensor mode has its own beep, which means you can determine the input mode without even looking at the watch. All this, plus one-touch time recording, one-touch elapsed time measurement, the ruggedness and durability of the G-SHOCK, and much more, makes RANGEMAN the perfect choice for rangers, rescue personnel and anyone else whose profession or activities require unparalleled reliability.
Case dimensions (H x W x D)
55.2 × 53.5 × 18.2 mm
Weight
93 g
Case and bezel material
resin
Strap
Strap in resin
Structure
Shock resistant
Waterproof
Waterproof up to 20 bar
Time adjustment
Radio controlled clock; Multi Band 6
Power and battery life
Tough Solar (solar powered)
Sensor function

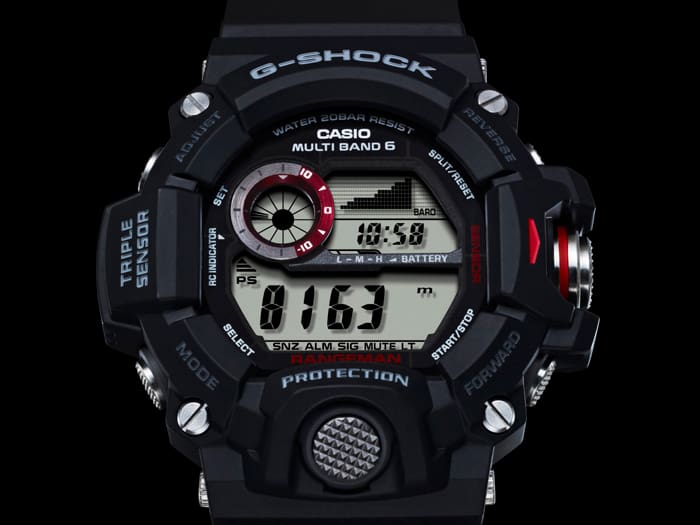

Altimeter Measurement range : -700 to 10,000 m (-2,300 to 32,800 ft) Unit of measurement: 1 m (5 ft) Altitude memory function: Manual readings: 40 records, each containing date and time, heading angle, altitude, barometric pressure and temperature Automatic data saving: high altitude, low altitude, cumulative ascent, cumulative descent (1 value each) Other: relative altitude values ( -3,000 to 3,000 m) Selectable measurement interval: 5 seconds or 2 minutes *1 second only for the first 3 minutes *Conversion between meters (m) and feet (ft)

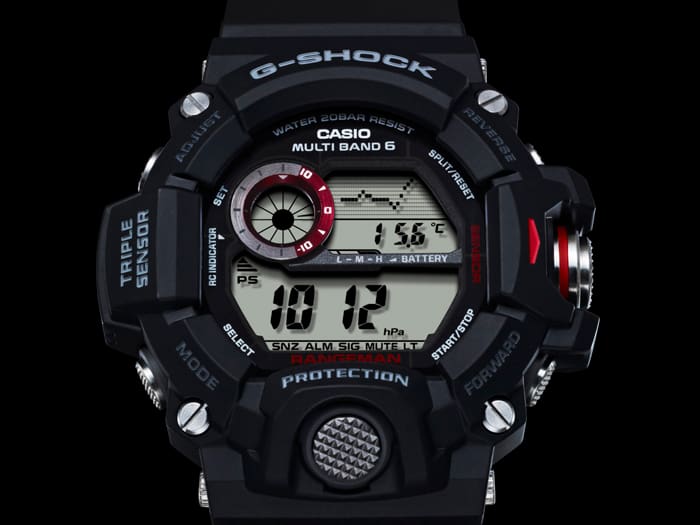

Barometer Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg) Display unit: 1 hPa (0.05 inHg) Barometric pressure trend graph ( last 42 hours of recordings) Barometric pressure difference graph Barometric pressure trend information alert (beeper and arrow indicate changes significant pressure values) *Conversion between hPa and inHg

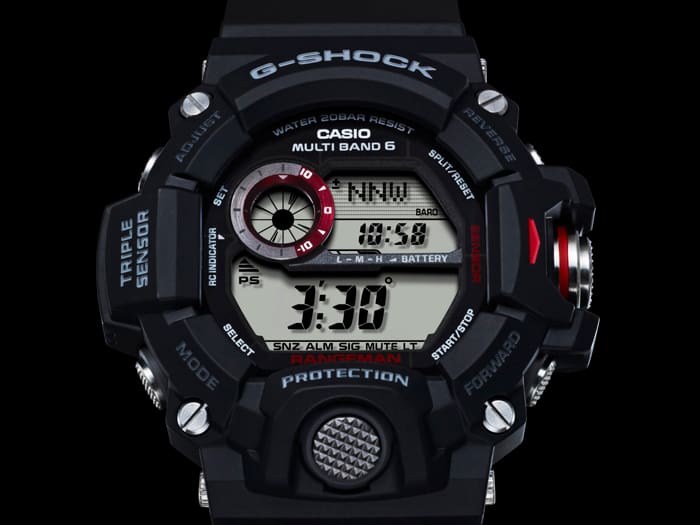

Digital compass
Measures and displays direction as one of 16 points
Measurement range: 0 to 359°
Unit of measurement: 1°
60 seconds continuous measurement
Graphic direction pointer
Bidirectional calibration
Magnetic declination correction
Direction memory
Thermometer
Display range: -10 to 60°C (14 to 140°F)
Display unit: 0.1°C (0.2°F)
*Conversion between Celsius (°C) and Fahrenheit (°F)
Glass
Mineral glass
Adjustable strap
From 145 to 215 mm
World time
World time
31 time zones (48 cities + Coordinated Universal Time), daylight saving time on/off
Sunrise and sunset display
Sunrise and sunset time display
Sunrise and sunset time by specific date, daylight indicators
Stopwatch
1/100 second stopwatch
Measuring capacity: 999:59’59.99”
Measurement modes: elapsed time, split time, 1st and 2nd place times
Timer
Countdown timer
Unit of measurement: 1 second
Countdown interval: 24 hours
Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments)
Sound Reminder / Time Tone
5 reminders daily sounds (with 1 delayed sound reminder)
Time signal

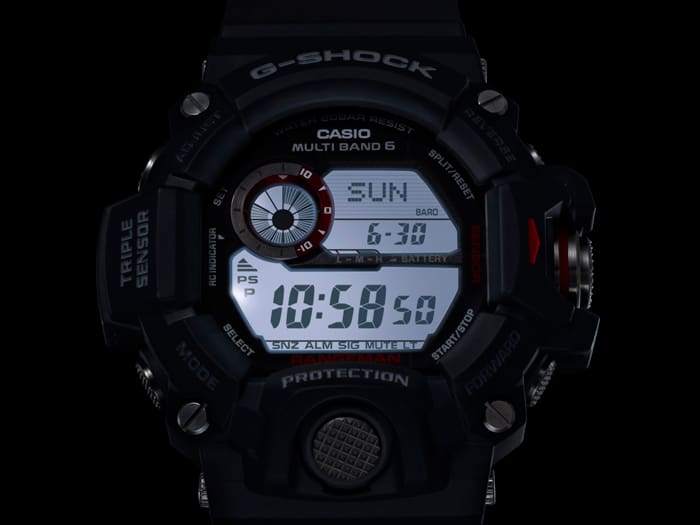

Light
LED backlight (Super Illuminator) Fully automatic LED lighting, selectable lighting duration, luminescence
Light color
LED: white
Calendar
Full automatic calendar ( up to the year 2099)
Deactivating the volume
Activating/deactivating the button press acoustic signal
Saving function Energy saving
Energy saving (the display turns off to save energy when the watch is left in the dark)
Battery status display/alert
Battery indicator battery level
Ride timing
Approximate battery operating time: 8 months with rechargeable battery (operation period for normal use without exposure to light after charging), 23 months with battery rechargeable (operating period when stored in total darkness with the power saving function activated after a full charge)
Accuracy
Accuracy: ±15 seconds per month (without battery calibration signal)
Other features
12/24 hour format
Regular timekeeping:
hour, minute, second, pm, month, date, day
Time adjustment details
Time calibration signals
Station Name: DCF77 (Mainflingen, Germany)
Frequency: 77.5kHz
Station Name: MSF (Anthorn, England)
Frequency: 60.0kHz
Station Name: WWVB (Fort Collins, United States)
Frequency: 60.0kHz
Station Name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima)/60.0 kHz (Fukuoka/Saga)
Station Name: BPC (Shangqiu City, Henan Province, China)
Frequency: 68.5 kHz
Time calibration signal reception
Automatic reception up to six* times a day (remaining automatic receptions are canceled when successful)
*5 times a day for Chinese calibration signal
Manual reception
The latest signal reception results
Sensor function details
Manual data recording up to 40 records (altitude, barometric pressure / temperature, direction, time (Save time) )
GW-9400-1
