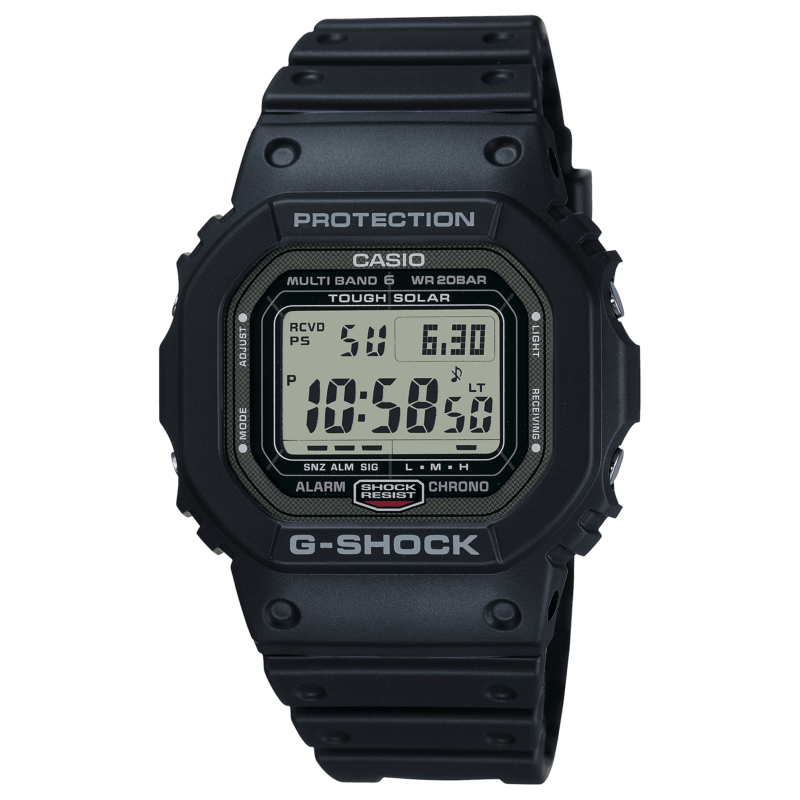

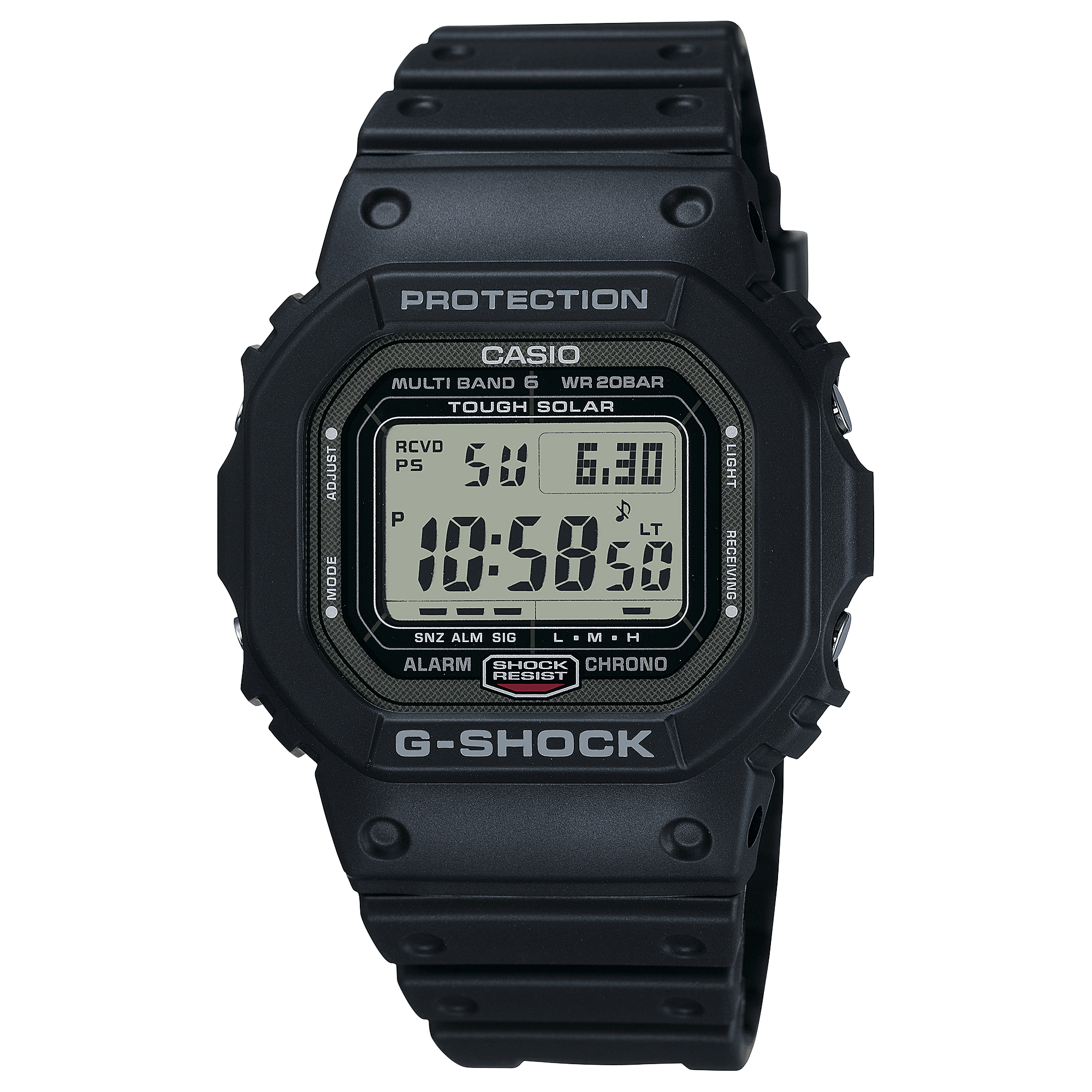

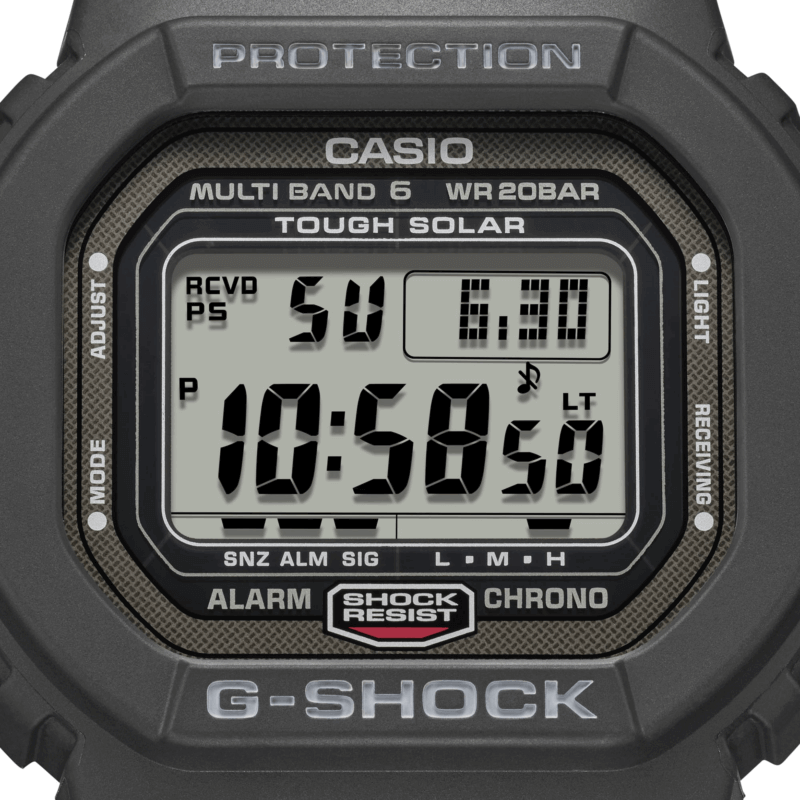

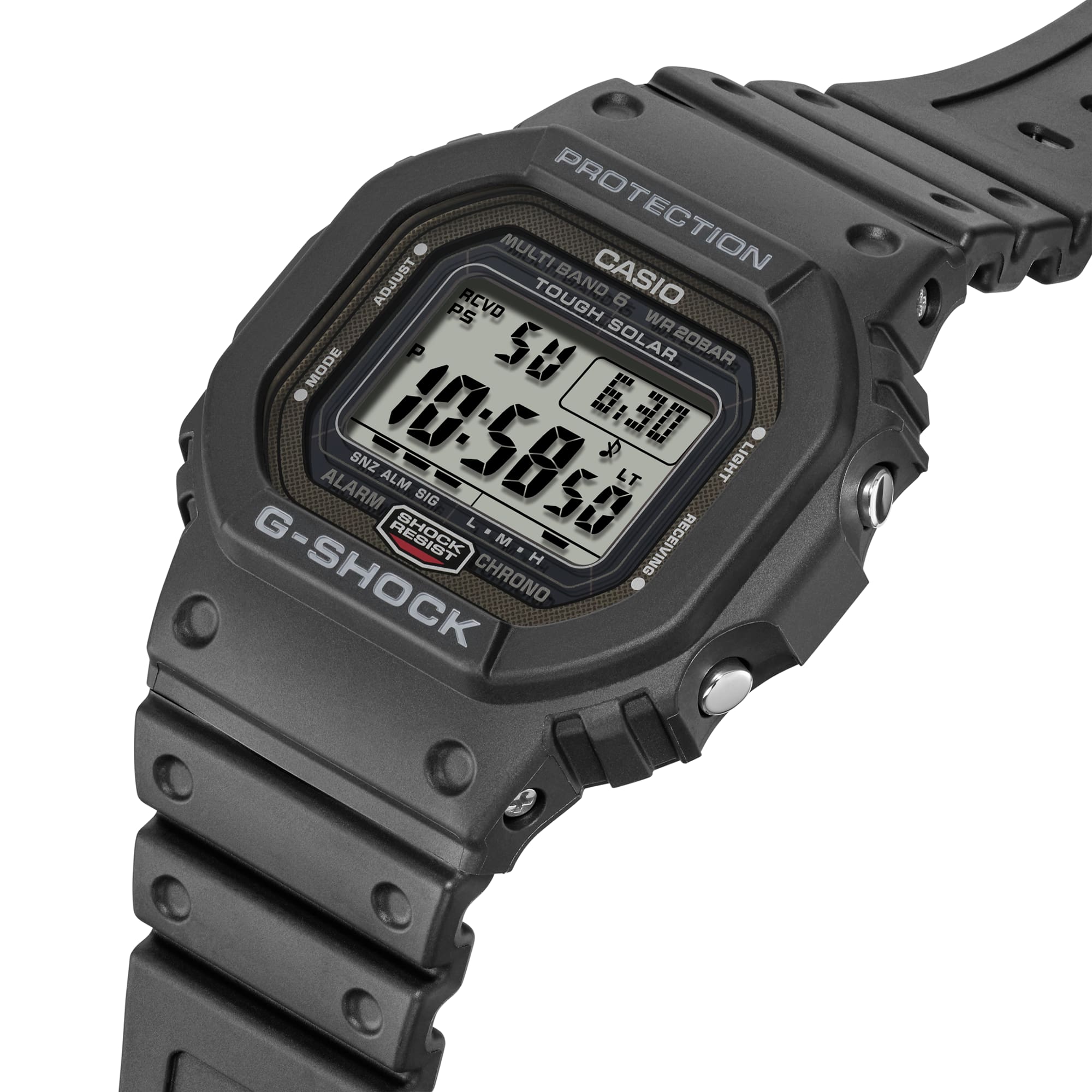

Pursuing greater ruggedness and inheriting the DNA of the first G-SHOCK model (DW5000), the GW5000U-1 is built with a solid metal case and a screw-down case back. This watch is also equipped with an advanced technology, Multi-Band 6, which receives standard radio waves from 6 stations around the world. The metal case and screw-down caseback are made of DLC (diamond-like) to improve wear resistance, while the screw-down caseback is mirror-polished to create a luxury finish. In addition, the resin band uses a urethane that is soft and comfortable to wear. Evolved from the original G-SHOCK design, born in 1983, the GW5000U-1 is a refined model that boasts high-quality technology and finishes.
Case dimensions (H x W x D)
48.9 × 42.8 × 13.5 mm
Weight
74 g
Case and bezel material
Stainless steel / Resin

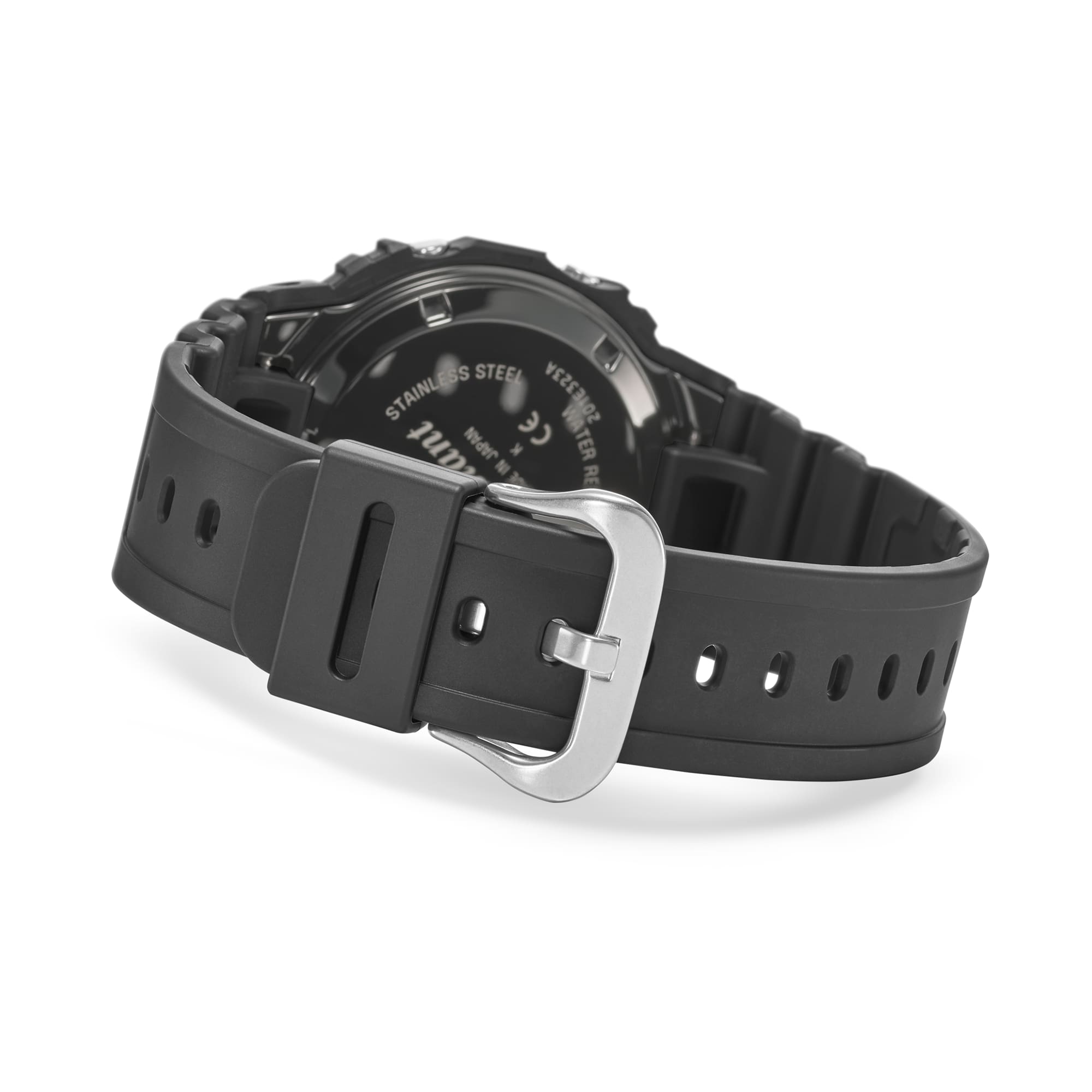

Strap
Stainless steel strap resin
Structure
Shock resistant
Waterproof
Waterproof up to 20 bar
Time adjustment
Radio controlled clock; Multi Band 6
Power and battery life
Tough Solar (solar powered)
Glass
Mineral glass

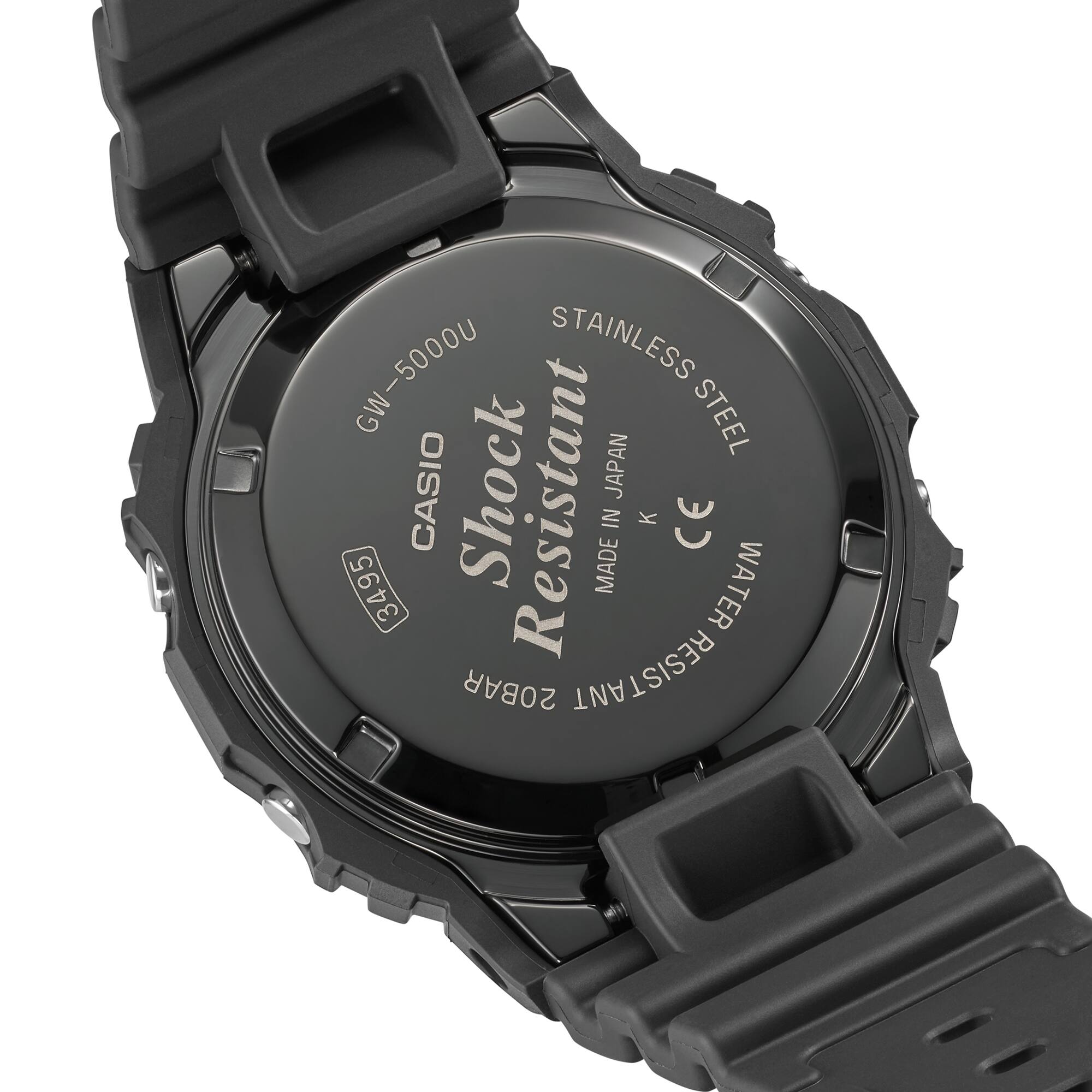

Back plate
Screw lock back
Surface treatment
Diamond-like coating
Now international
5 International hours
31 time zones (48 cities + Coordinated Universal Time), daylight saving time on/off, switching between local time and world time
Stopwatch
Hundredths of a second stopwatch
Measuring Capability:
00’00”00~59’59”99 (for the first 60 minutes)
1:00’00~23:59’59 (after 60 minutes)
Unit of measurement:
1 hundredth of a second (for the first 60 minutes)
1 second (after 60 minutes)
Measurement modes: elapsed time, split time, 1st and 2nd place times
Timer
Countdown timer
Unit of measurement: 1 second
Countdown interval: 24 hours
Countdown start time setting range: 1 second to 24 hours (1-second increments, 1-minute increments and 1-hour increments)
Audible Reminder / Time Signal
5 daily audible reminders (with 1 delayed audible reminder)
Signal time

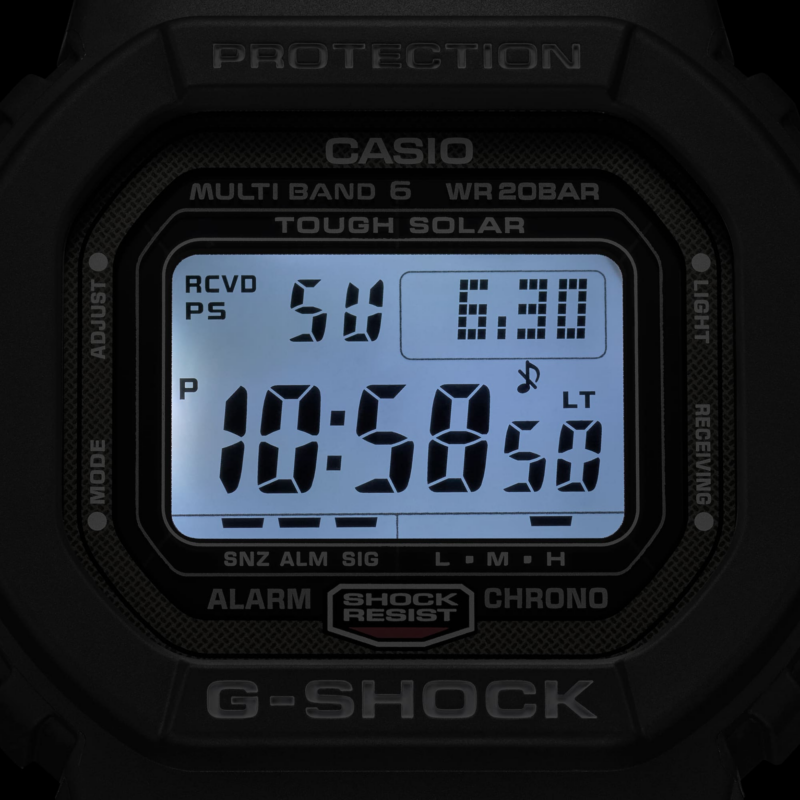

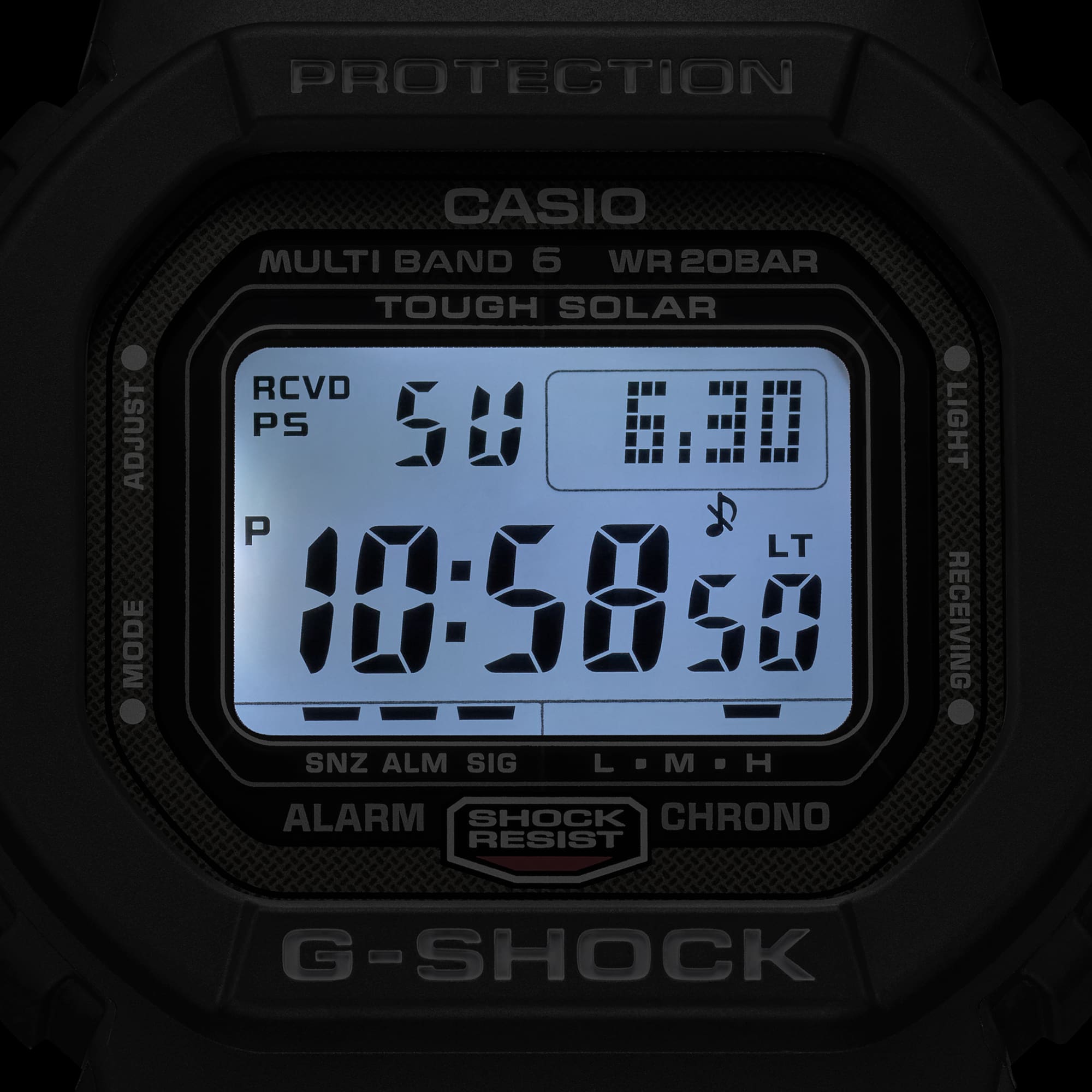

Light
LED backlight (Super Illuminator)
Fully automatic LED lighting, selectable lighting duration (1.5 seconds or 3 seconds), luminescence
Light color
LED: white
Calendar
h2>Full automatic calendar (up to the year 2099)
Mute the volume
Turn the pressure tone on/off buttons
Energy saving function
Energy saving (display turns off to save energy when the watch is left in the dark)
Status display/alert battery life
Battery level indicator
Ride timing
Approximate battery run time:
10 months with rechargeable battery (operation period for normal use without exposure to light after charging)
22 months with rechargeable battery (operating period when stored in completely dark conditions with the energy saving function activated after a full charge)
Accuracy
Accuracy: ±15 seconds per month
Other features
12/24 hour format
Date/month display switching
Day display (days of week selectable in six languages)
Regular time display:
hour, minute, second, pm, month, date, day
Time adjustment details
Receiving the time calibration signal
Automatic reception up to six* times a day (remaining automatic receptions are canceled when successful)
*5 times a day for Chinese calibration signal
Manual reception
The latest signal reception results
Time calibration signals
Station Name: DCF77 (Mainflingen, Germany)
Frequency: 77.5kHz
Station Name: MSF (Anthorn, England)
Frequency: 60.0kHz
Station Name: WWVB (Fort Collins, United States)
Frequency: 60.0kHz
Station Name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima)/60.0 kHz (Fukuoka/Saga)
Station Name: BPC (Shangqiu City, Henan Province, China)
Frequency: 68.5 kHz
GW-5000U-1
