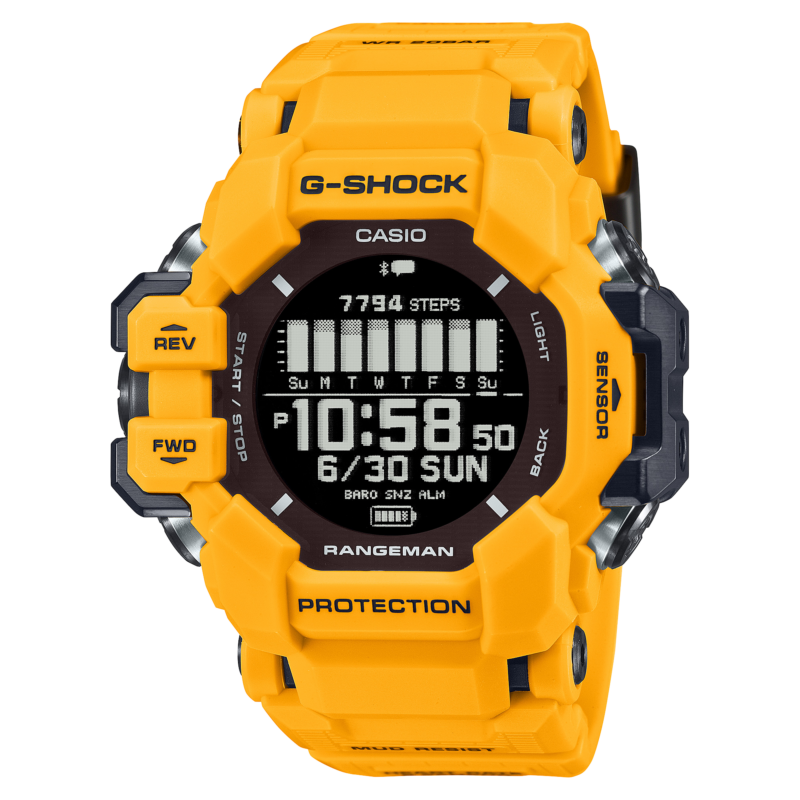

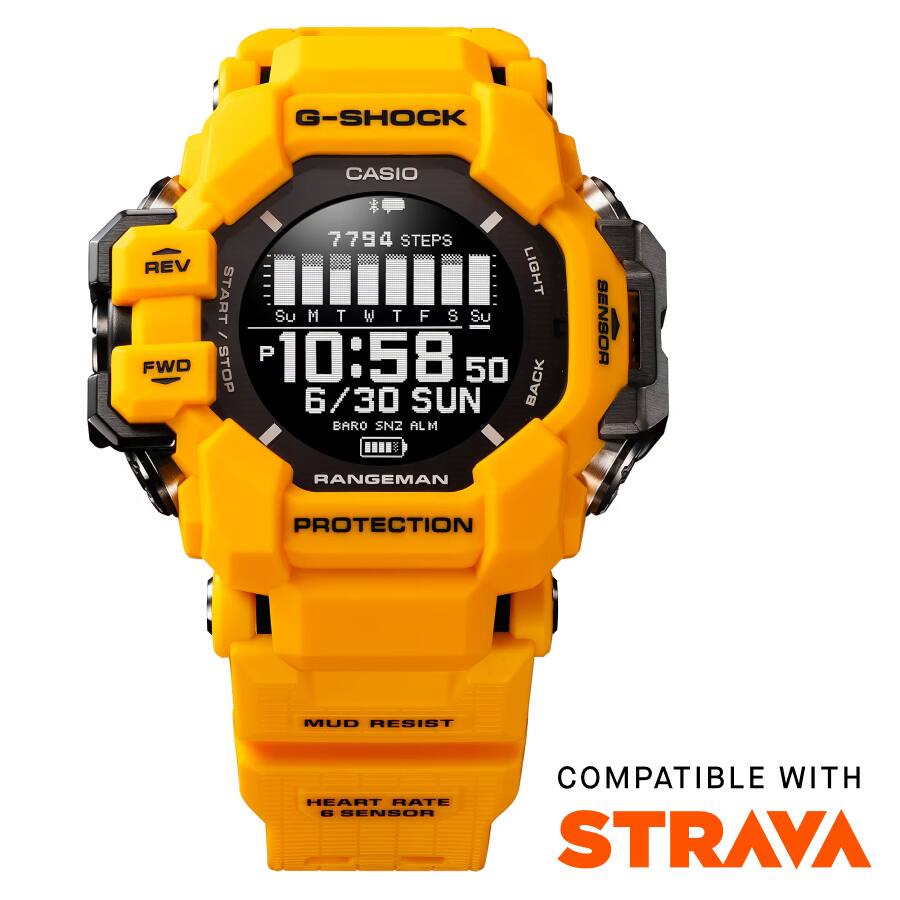

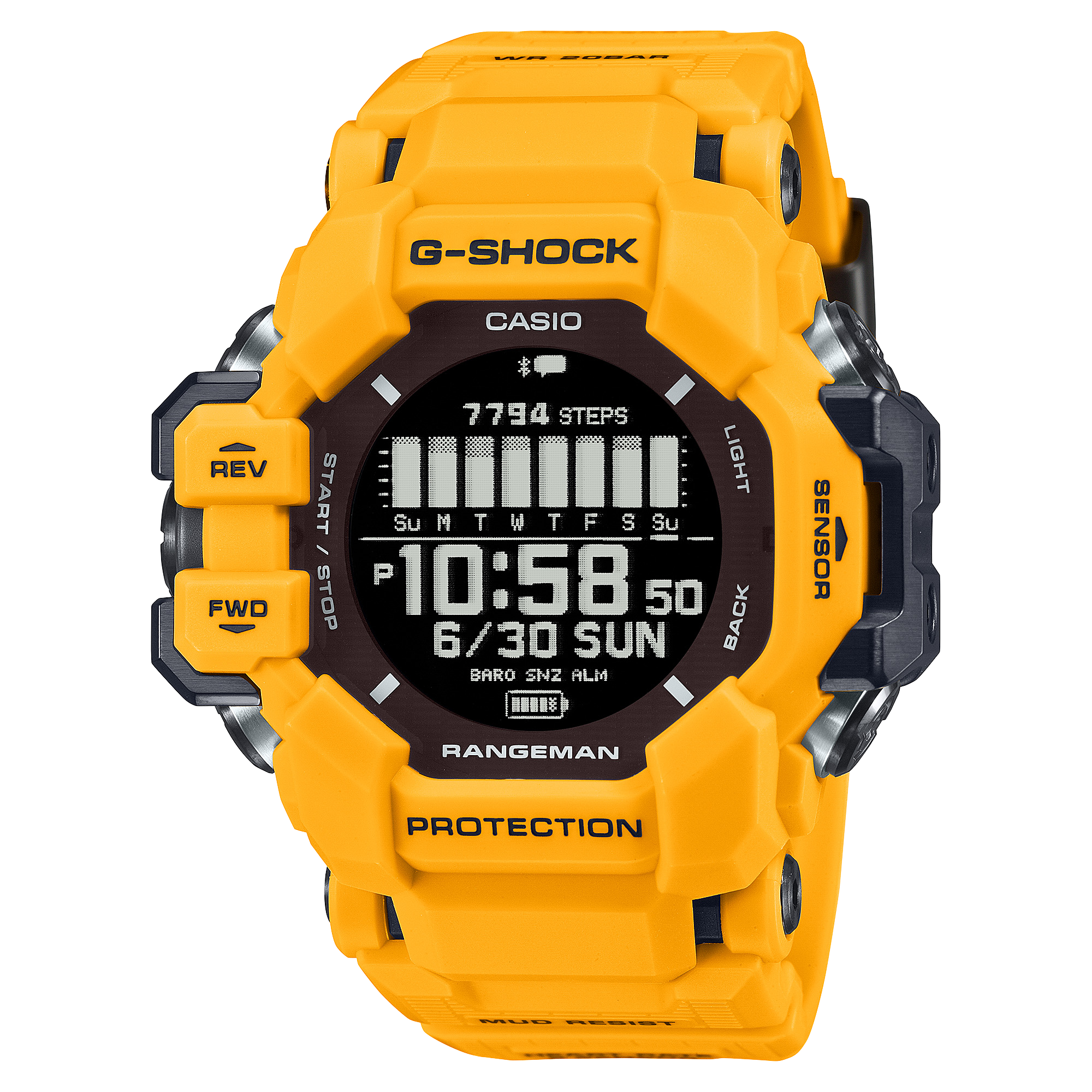

The RANGEMAN GPR-H1000 comes with a brand new level of ruggedness and additional features, such as a built-in heart rate monitor, GPS system and high-contrast, easy-to-read LCD display with Memory-in-Pixel (MIP) technology.

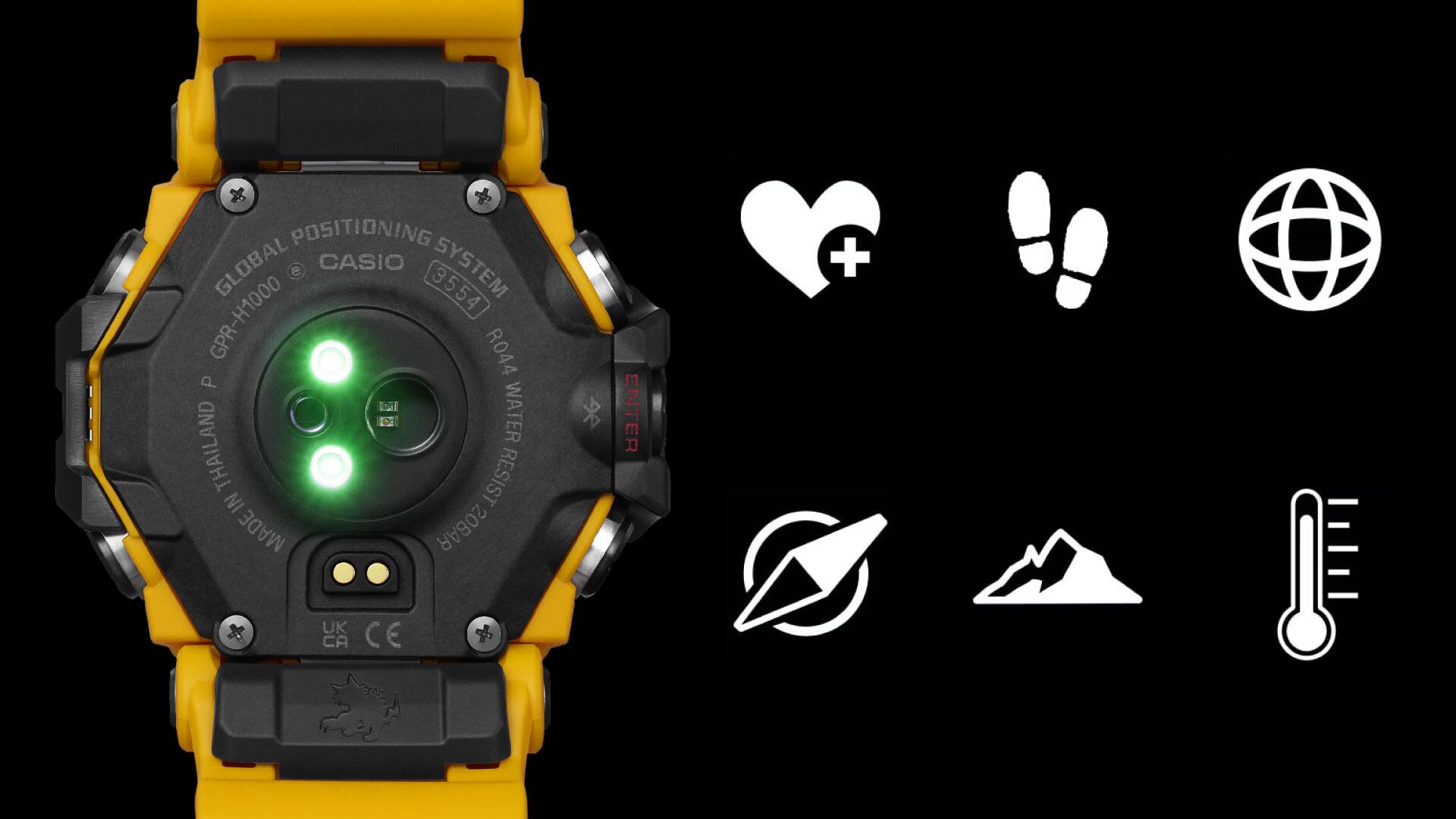

To track your movements in real time, six sensors accurately detect body movements and changes in the environment: heart rate monitor to measure changes in blood flow and monitor heart rate; accelerometer to measure activity such as the number of steps taken; gyroscope to track strokes and turns in the pool; and magnetic, pressure and thermal sensor.
The watch is equipped with data collection systems for sports activities (trekking, running, walking, cycling, swimming, gym workouts), offering performance even in the most difficult conditions and resisting shocks, dust, mud and to water.

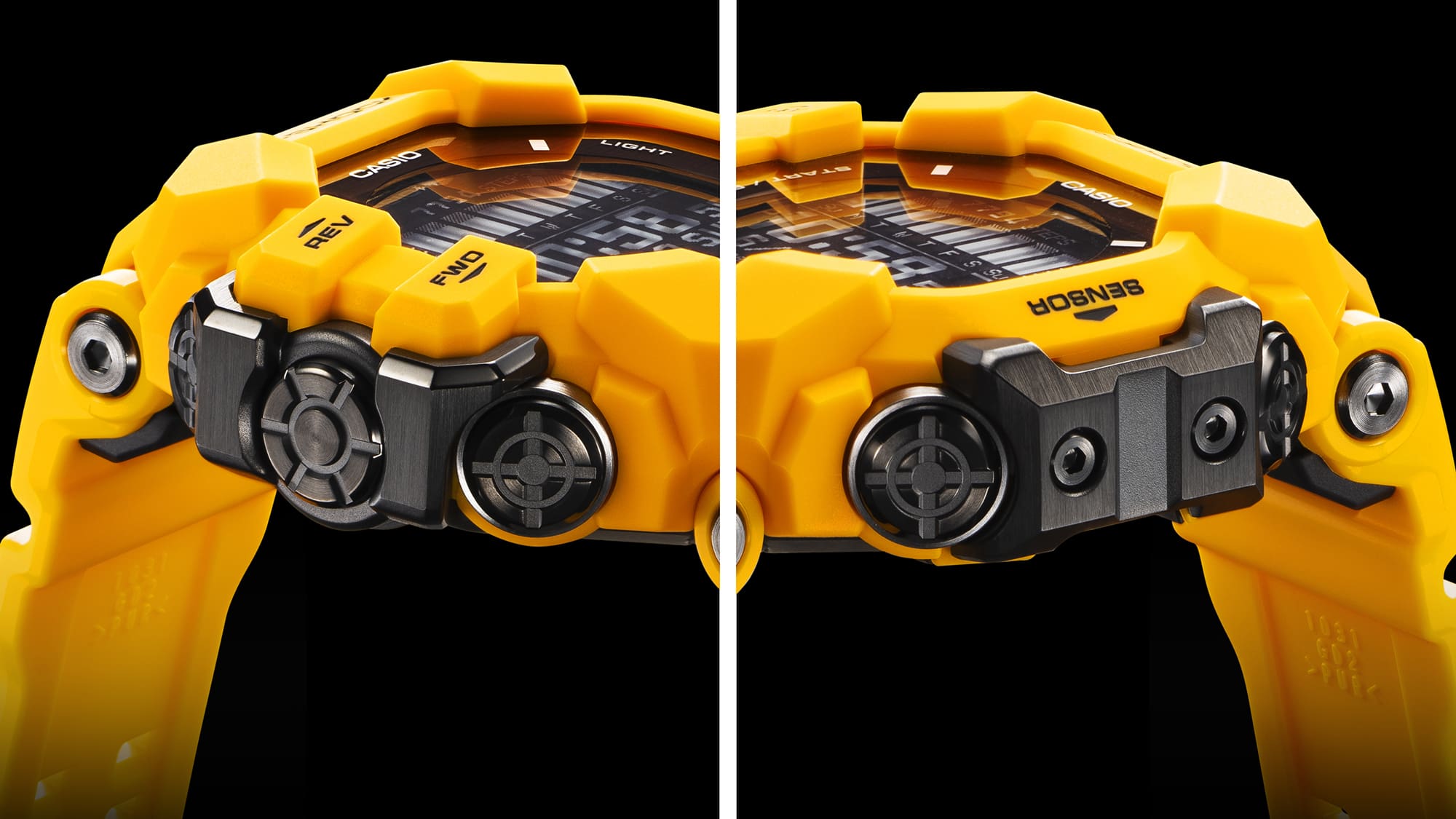

The internal structure of the watch is protected by large metal components on the sides, which protect the GPS antenna and the six internal sensors. The buttons are protected by cylindrical stainless steel parts and gaskets to avoid contamination with mud and dust.
The watch also includes built-in GPS functionality to measure location, distance and movement speed. Track your movements in real time while you’re on the move.

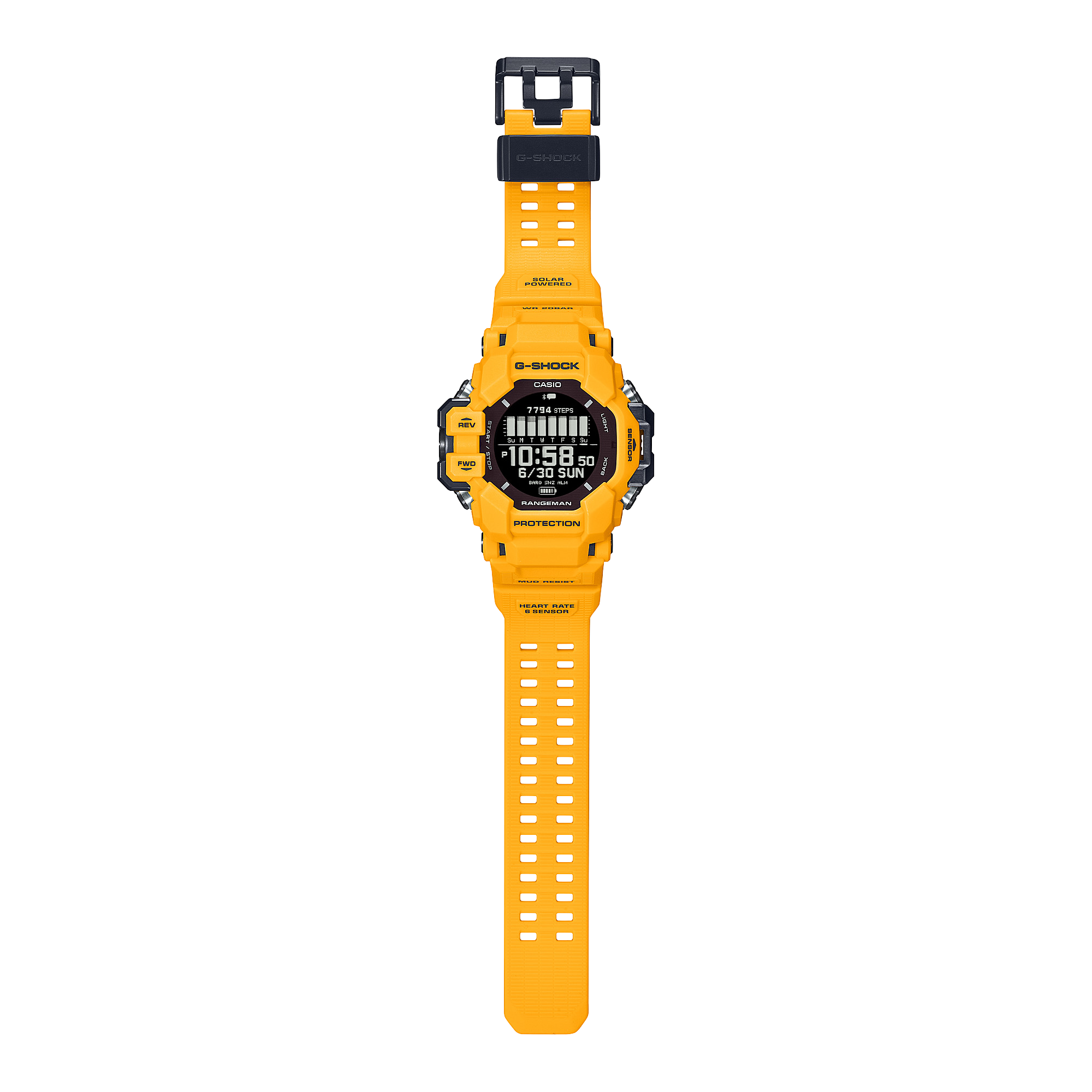

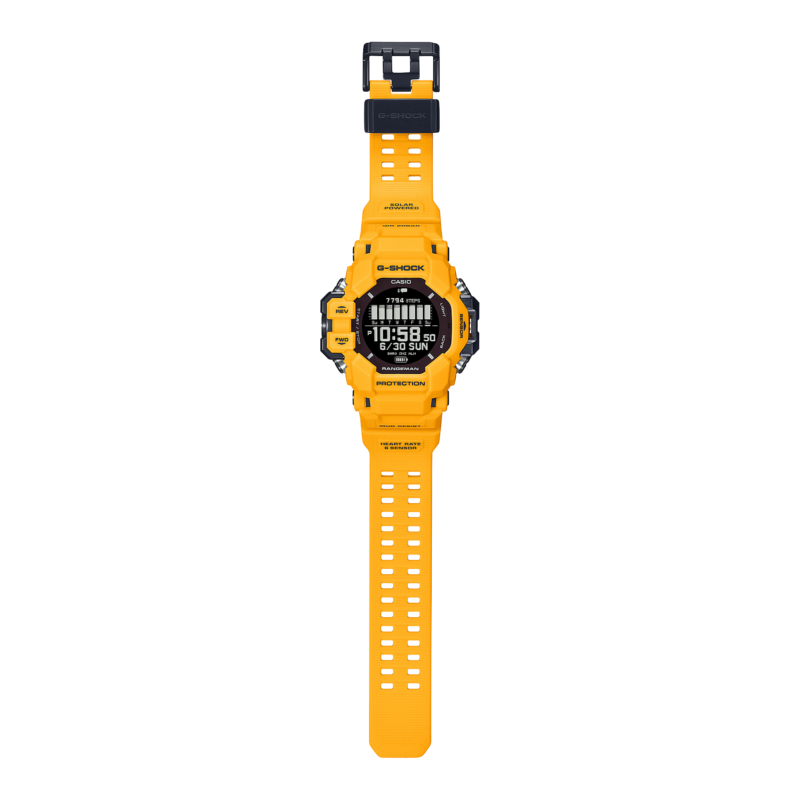

The strap is made of soft urethane to ensure an extremely comfortable fit on the wrist. Furthermore, the surface of the strap has a non-slip texture.
The main resin components of the bezel, case and strap are made from bio-based resin.
We’ve done our best to prepare you to challenge the limits of endurance.
Case dimensions (H x W x D)
60.6 × 53.2 × 20.3 mm
Weight
92 g
Case and bezel material
Resin/Bio-based resin
Strap
Resin-based strap biological
Structure
Mud resistant
Shock resistant
Waterproof
Waterproof up to 20 bar< /div>
Adjusting the time
GPS signal reception: Manual reception (location information, time information)
Power and battery life battery

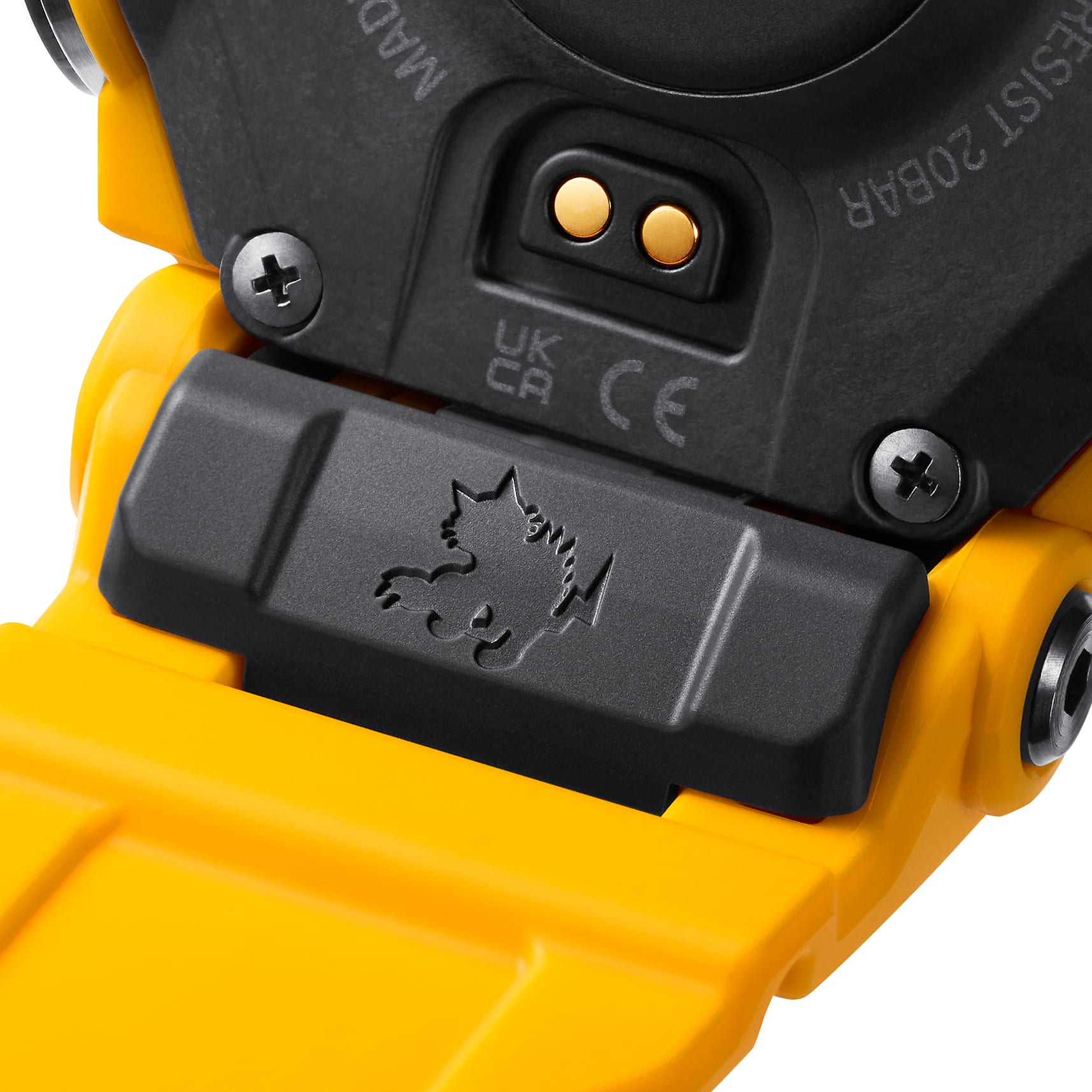

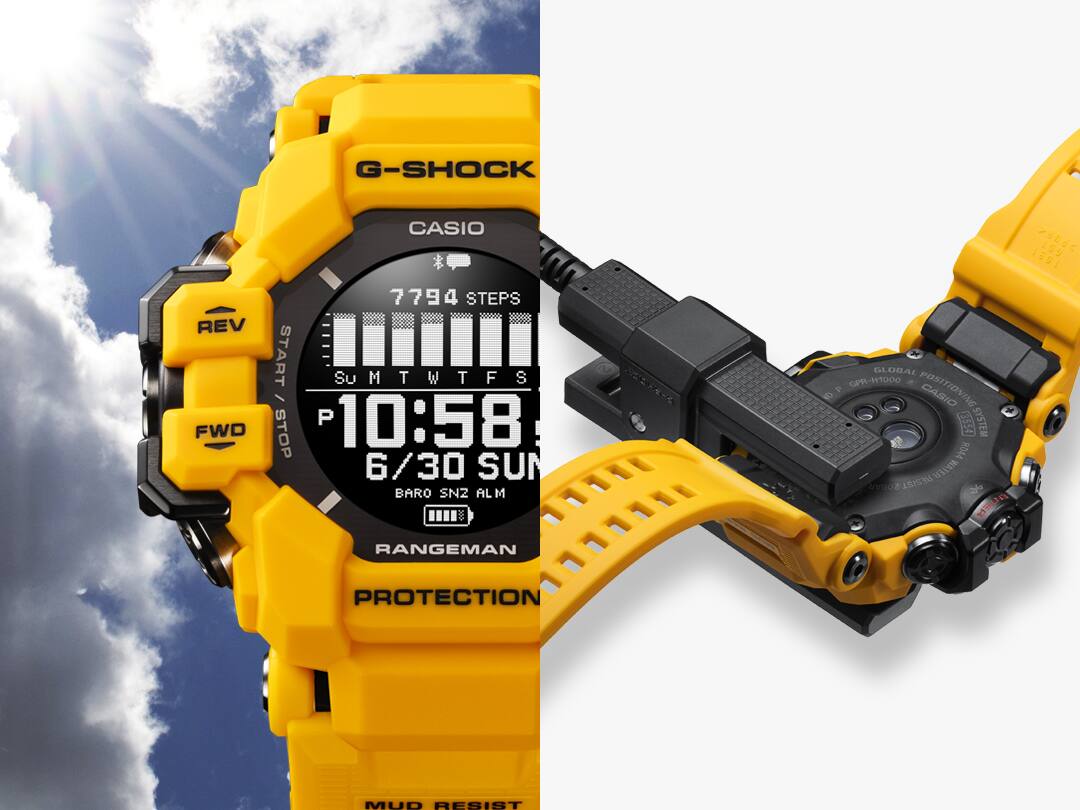

Compatible charging system with dedicated cable (requires a device with a USB type A terminal)
Solar powered
Sensor function
Activities: Multisport (running, trekking, walking, cycling, swimming, other); calculate and display distance, speed, pace and other information using GPS or accelerometer; automatic/manual lap time function; automatic pause function
Training analysis: Cardiac load status
Activity log data: Up to 100 runs with a maximum of 200 laps each, measurement time, distance , pace, running index, calories burned, energy source used, heart rate, maximum heart rate, heart load, pace rate, maximum pace rate, stride, altitude reached, number of strokes, SWOLF
Wrist heart rate measurement (30-220 bpm): Heart rate, setting target heart rate, graphical indication of heart rate zone, heart rate graph, maximum heart rate, minimum heart rate
Sleep measurement: Recovery state during sleep (6 stages), recovery level display during sleep, sleep state (5 stages), sleep score display range (1 to 100, units measurement: 1), autonomic nerve status (5 phases), ANS score range (-10 to +10, unit: 0.1)
Blood oxygen level measurement*
Breathing exercise: Setting range (2 to 20 minutes in 1 minute increments), biofeedback, zone-specific time summary
Step count measurement: 3-axis acceleration sensor, step count display range (0 to 99999 steps), step count reset: automatic reset every day at midnight
Activity time measurement: A special algorithm measures the movement using state analysis (walking, running, cycling, undefined)
Life Log: Step count, step count graph (week, month, 6 months), measurement of calories burned, measurement of activity time
Step reminder
Measurement of floor height
Digital compass:
Measurement range: 0° to 359°
16-way display
Automatic level correction
Altimeter:
Measurement range: -700 to 10,000 m (or -2,300 to 32,800 ft)
Display range: -10,000 to 10,000 m (-32,800 to 32,800 ft)
Unit of measurement: 1 m (or 5 feet)
Measuring interval: 2 minutes/5 seconds
Altitude Differential Measurement: -3,000 to 3,000 m (or -9,840 to 9,840 ft)
Altitude graph
Barometric pressure measurement:
Measuring range: 260 to 1,100 hPa (or 7.65 to 32.45 inHg)
Display range: 260 to 1,100 hPa (or 7.65 to 32.45 inHg)
Unit of measurement: 1 hPa (or 0.05 inHg)
Automatic measurement interval: 2 hours
Barometric pressure graph
Barometric pressure change indicator
Temperature measurement:
Measuring range: -10 to 60°C (14 to 140°F)
Display unit: -10 to 60°C (14 to 140°F)
Display unit: 0.1°C (0.2°F)
Pedometer
Smartphone connection function
Mobile Link (automatic connection, connection wireless via Bluetooth®)
App
CASIO WATCHES
App connection function
Watch adjustment automatic
Easy clock setting
Time zone setting
World time in approximately 300 cities
Notification function (incoming calls , incoming emails, new social media posts, calendar notifications, reminders)
Workout analytics
Activity history
Data Life Log
Sleep analysis data
Tide graph setup (approximately 3,300 global points)
Find phone
Glass
h2>Mineral glass
Adjustable strap
From 145 to 215 mm
World time
World time
38 time zones* (38 cities + Coordinated Universal Time), daylight saving time on/off, automatic daylight saving time (DST) switching
*Can be updated when connected to a smartphone.
Moon data
Moon data (moon age on specific date, moon phase)
Graph tide time
Tide graph
Sunrise and sunset display
Sunrise and sunset time display
Sunrise and sunset time for specific date
Stopwatch
1 second stopwatch
Measuring capacity: 99:59’59”
Measurement mode: elapsed time, split time
Timer
Measurement unit: 1 second
Countdown interval: 60 minutes
Countdown start time setting range: 1 second to 60 minutes (1 second increments)
Audible Reminder / Time Tone
4 daily audible reminders with Snooze function< /div>Smart alarm clock (with snooze ringtone)
Light

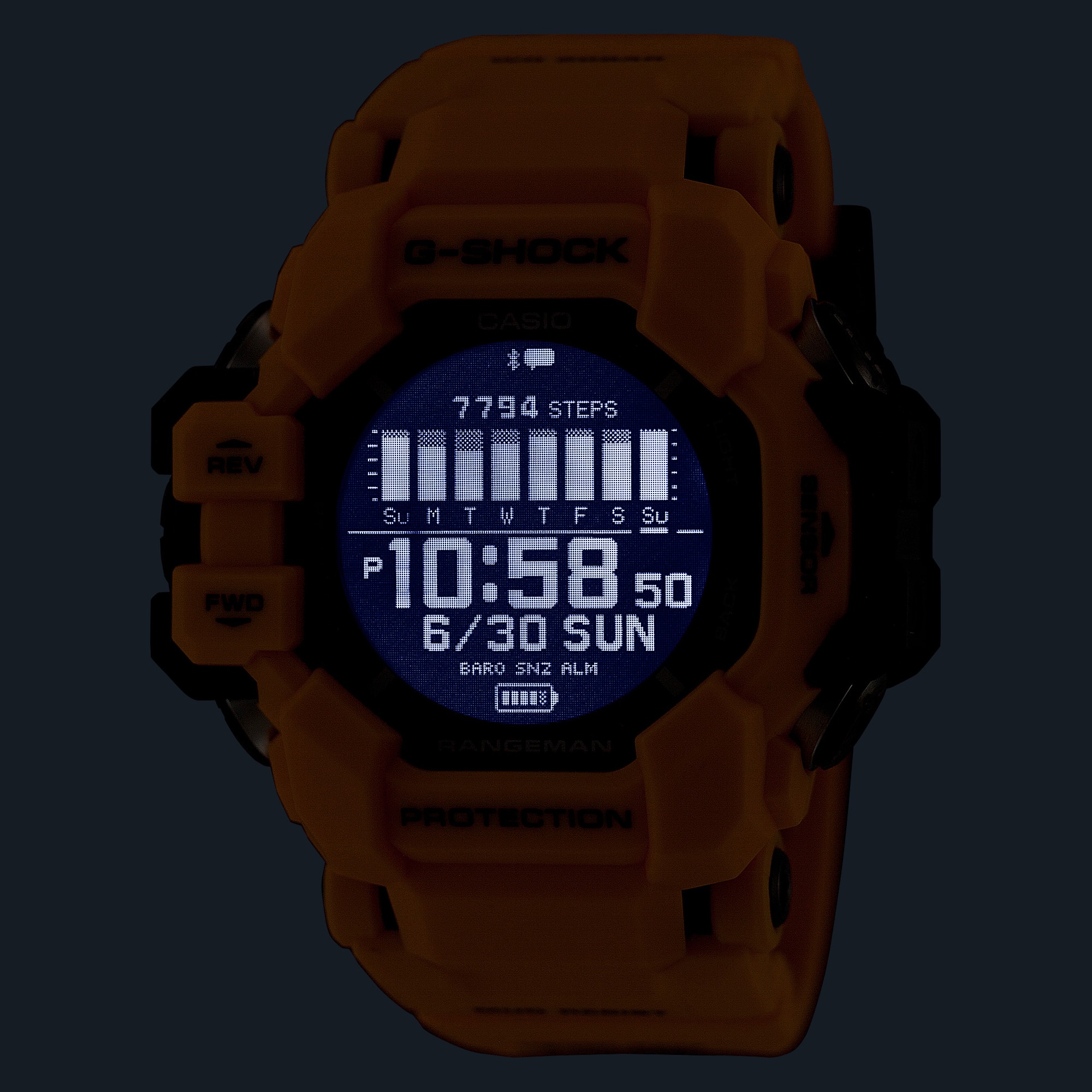

LED backlighting (Super Illuminator)
Fully automatic LED lighting, selectable lighting duration (1.5 seconds or 5 seconds), luminescence
Light color
LED: white
Calendar
h2>Full automatic calendar (up to the year 2099)
Mute the volume
Turn the pressure tone on/off buttons
Energy saving function
Energy saving (display turns off to save energy when the watch is left in the dark)
Status display/alert battery level
Battery level indicator
Timing your run
Using activity features (GPS, heart rate):
• HIGH FREQUENCY (continuous reception): About 14 hours max
• NORMAL (continuous reception): About 16 hours max
• LONG (intermittent reception): About 19 hours max
Use in watch mode with heart rate measurement deactivated: Approximately 2 months
Use with energy saving function activated: Approximately 23 months
* Varies depending on usage environment; from full charge, without solar energy.
Accuracy
Accuracy: ±15 seconds per month (without GPS signal reception and Mobile Link function)
Other features
Airplane mode
Vibration
12/24 hour format
Regular timekeeping:
hour, minute, second, am/pm, month, date, day
Turn vibration on/off
Sensor function details
* The blood oxygen level measurement function is not intended as a medical device for the diagnosis of specific diseases. It is intended exclusively for maintaining good health conditions.
GPR-H1000-9
