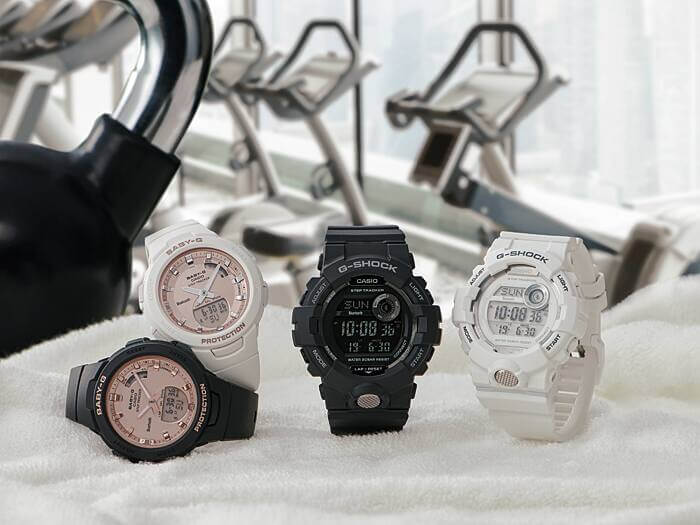

G-SQUAD
These are the latest additions to G-SHOCK’s G-SQUAD sports line. The two models in this line are available in black or white, making them suitable for everyday use as well as for sportswear.

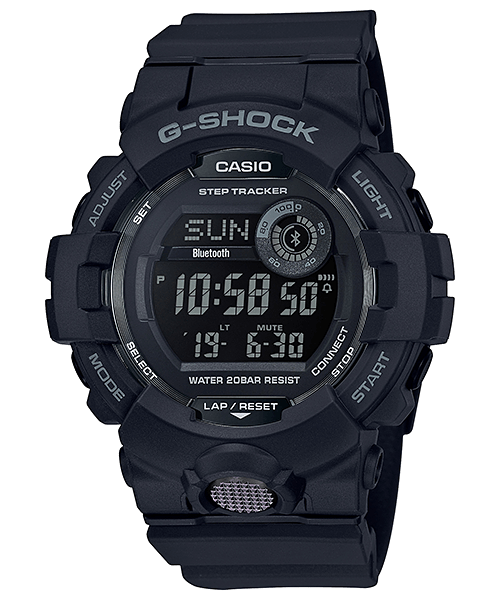

The basic GBD-800 model features a multi-segment digital display to improve readability and operation while engaging in sports.
The LCD display is divided into top, center and bottom sections and there is a digital dial on the top right. Each display area shows different information, relating to measurement, date and time and other information, which provides useful data on your daily activities. The metal front button* and vapor deposition dial add elegant colors for an eye-catching design.
Feature-wise, these watches connect with the CASIO WATCHES mobile app to provide access to a variety of workout-enhancing features. Daily health and fitness support features include a 3-axis accelerometer that tracks the number of steps, a Multi-Timer that allows you to create up to 20 combinations of five timers each, a memory for up to 200 recordings of circuit and more. The app also allows you to keep pedometer logs, calculate calories burned, specify a daily goal, create timer combinations and send them to the watch, store stopwatch measurement data, view data, and more. All of this combines to help you plan and log workouts, making them more effective and fun.
Other features include app-based automatic time adjustment and other functions for more precise time keeping, and an automatic LED light to facilitate workouts in low-light areas.

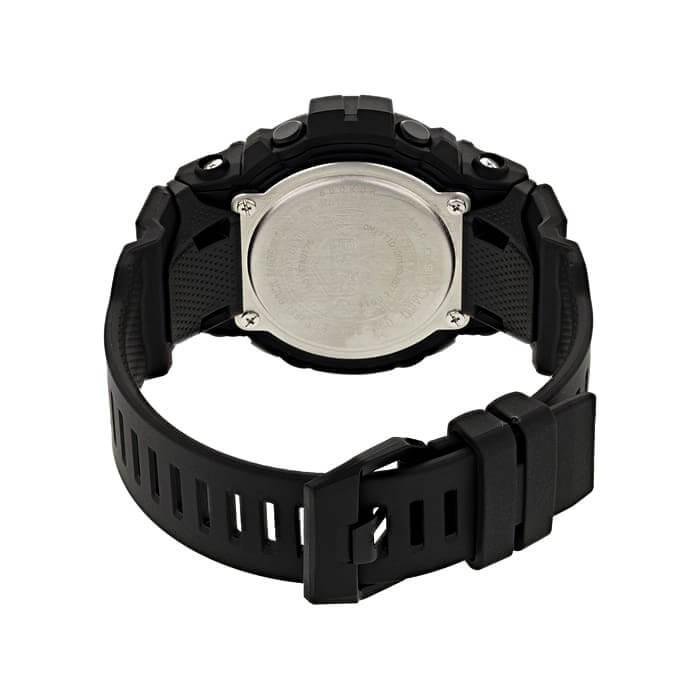

Back lugs on the inside of the band, where it connects to the case, a new ring shape that prevents sliding, and more holes to allow for a better fit, add to a more comfortable fit. You can precisely adjust the size of the strap.
The medium-sized design, ideal for running and training, Bluetooth, connection of phone apps and much more, make these new G-SQUAD models the perfect choice for sports and athletics.
• Connection to telephone
• Pedometer graph
• Calories burned display
• Combinable timers
• Stopwatch measurement data log
• Automatic time adjustment (four times a day)
• Easy clock setting
• World time for approximately 300 cities
• Change of time
• Sound reminder setting
• Step counting using a 3-axis accelerometer (step count graph, step goal progress graph)
• Stopwatch with sound reminder of target time (lap/split display switching, up to 10 target times, 200 lap time records)
• Interval timer with five time settings (auto repeat up to 20 times, skip, auto start, audible alert)
• Super Illuminator with automatic illumination
* Stylish appearance in lightweight aluminum.
G-SQUAD
The new G-SHOCK and BABY-G watch series was created to be suitable for an elite team of talented athletes.
Case dimensions (H x W x D)
54.1 × 48.6 × 15.5 mm
Weight
59 g
Case and bezel material
resin
Strap
Resin strap
Structure
Shock resistant
Waterproof
Waterproof up to 20 bar
Power and battery life
Approximate battery life: 3 years with CR2025
div>
Sensor Function
Step counting using a 3-axis acceleration sensor: Step count display range from 0 to 999,999
Viewing progress toward step goal (step count goal setting range: 1,000 to 50,000, 1,000 step increments)
Step Count Graph: Hourly step count for the last 7 hours on a 6-level graph
Step indicator
Energy saving: automatic insertion of the sensor’s sleep state after a certain period of inactivity
Smartphone connection function
Mobile Link (wireless connection via Bluetooth®)
< h2>App
CASIO WATCHES
Glass
Mineral glass
World time
Second time zone time (switching to your home time zone)
Stopwatch
Hundredths of a second stopwatch
Measuring Capability:
00’00”00~59’59”99 (for the first 60 minutes)
1:00’00~23:59’59 (after 60 minutes)
Unit of measurement:
1 hundredth of a second (for the first 60 minutes)
1 second (after 60 minutes)
Recorded data: Up to 200 records (month of measurement start, date, split/lap times)
Target time audible reminder up to 10 target time settings
Timer
Countdown timer
Interval measurement timer (up to five time settings) Unit of measurement: 1 second
Input range: 00’00” to 60’00” (1 second increments)
Other: automatic repeat (number of repetitions programmable from 1 to 20), automatic start
Audible reminder / Time signal
5 daily sound reminders
Time signal< /div>
Light
LED backlight (Super Illuminator)
Auto light switch, selectable light duration (1.5 seconds or 3 seconds), luminescence
Light color
LED: white
Calendar
< div>Full automatic calendar (up to the year 2099)
Muting the volume
Enabling/disabling the button press sound
Accuracy
Accuracy: ±15 seconds per month (without Mobile Link function)
Other features
12/24 hour format
Regular timekeeping:
hour, minute, second, pm, year, month, date, day
GBD-800-1B
Case dimensions (H x W x D)
54.1 × 48.6 × 15.5 mm
Weight
59 g
Case and bezel material
resin
Strap
Resin strap
Structure
Shock resistant
Waterproof
Waterproof up to 20 bar
Power and battery life
Approximate battery life: 3 years with CR2025
div>
Sensor Function
Step counting using a 3-axis acceleration sensor: Step count display range from 0 to 999,999
Viewing progress toward step goal (step count goal setting range: 1,000 to 50,000, 1,000 step increments)
Step Count Graph: Hourly step count for the last 7 hours on a 6-level graph
Step indicator
Energy saving: automatic insertion of the sensor’s sleep state after a certain period of inactivity
Smartphone connection function
Mobile Link (wireless connection via Bluetooth®)
< h2>App
CASIO WATCHES
Glass
Mineral glass
World time
Second time zone time (switching to your home time zone)
Stopwatch
Hundredths of a second stopwatch
Measuring Capability:
00’00”00~59’59”99 (for the first 60 minutes)
1:00’00~23:59’59 (after 60 minutes)
Unit of measurement:
1 hundredth of a second (for the first 60 minutes)
1 second (after 60 minutes)
Recorded data: Up to 200 records (month of measurement start, date, split/lap times)
Target time audible reminder up to 10 target time settings
Timer
Countdown timer
Interval measurement timer (up to five time settings) Unit of measurement: 1 second
Input range: 00’00” to 60’00” (1 second increments)
Other: automatic repeat (number of repetitions programmable from 1 to 20), automatic start
Audible reminder / Time signal
5 daily sound reminders
Time signal< /div>
Light
LED backlight (Super Illuminator)
Auto light switch, selectable light duration (1.5 seconds or 3 seconds), luminescence
Light color
LED: white
Calendar
< div>Full automatic calendar (up to the year 2099)
Muting the volume
Enabling/disabling the button press sound
Accuracy
Accuracy: ±15 seconds per month (without Mobile Link function)
Other features
12/24 hour format
Regular timekeeping:
hour, minute, second, pm, year, month, date, day
GBD-800-1B
