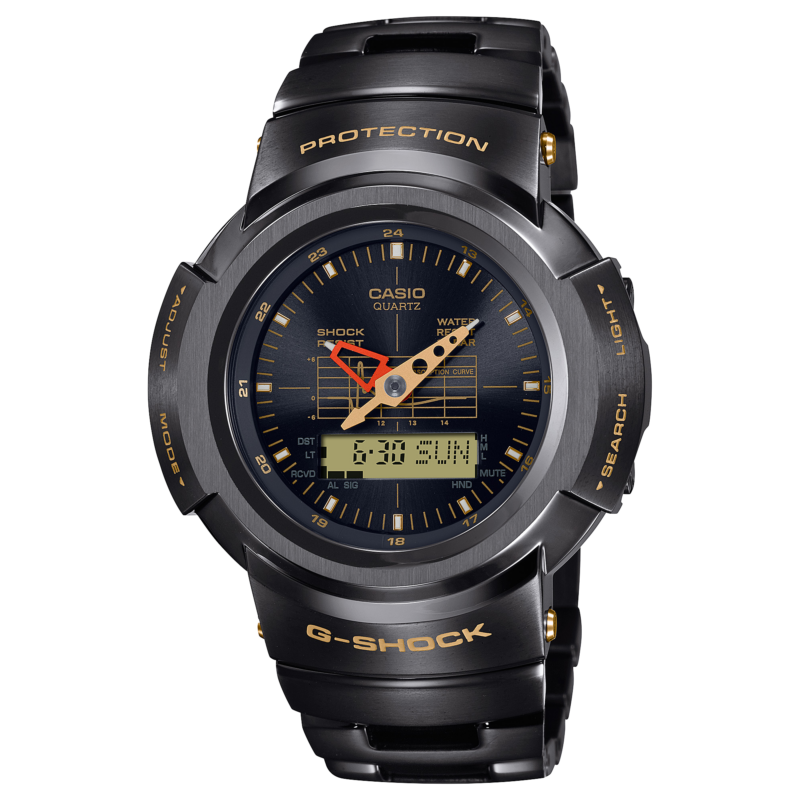

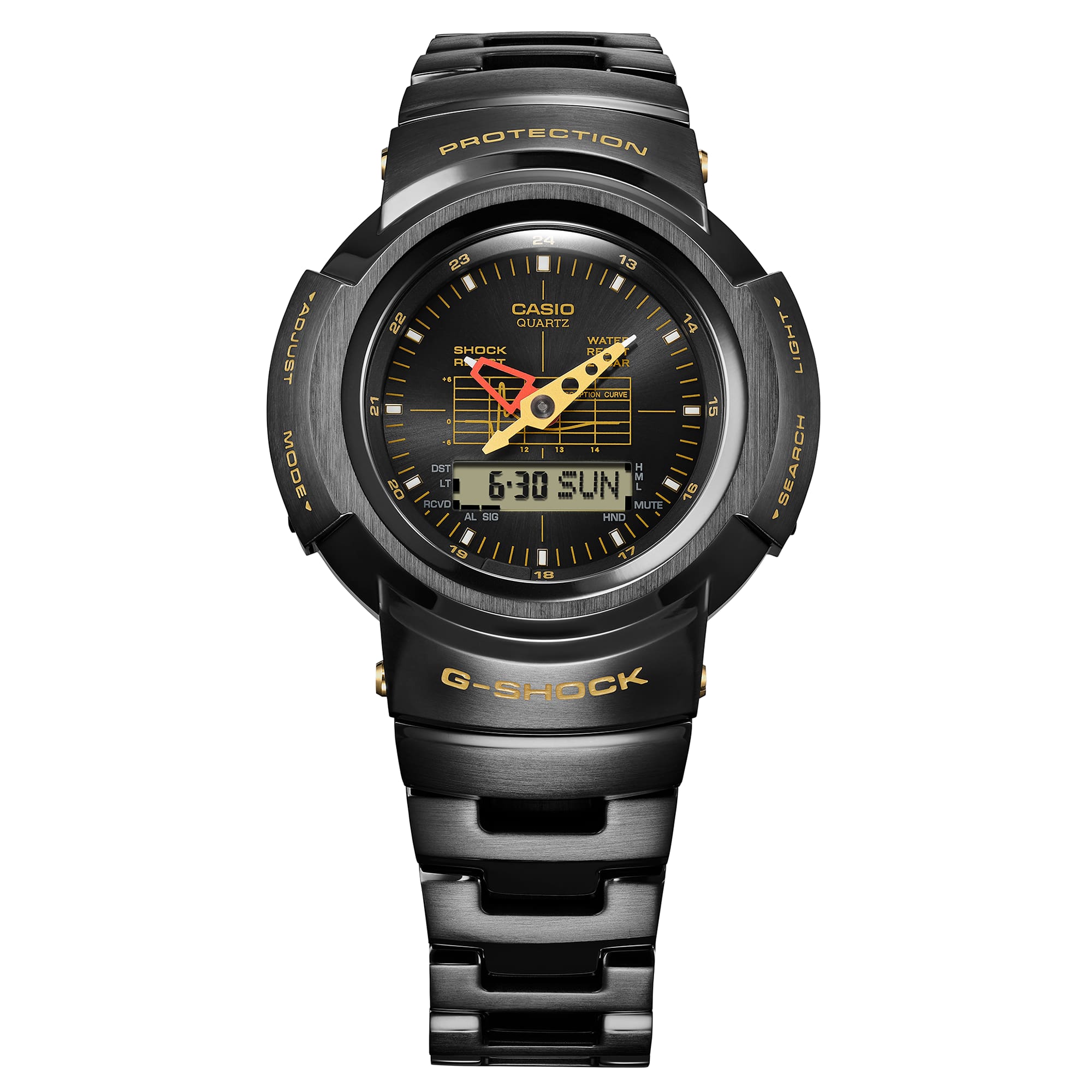

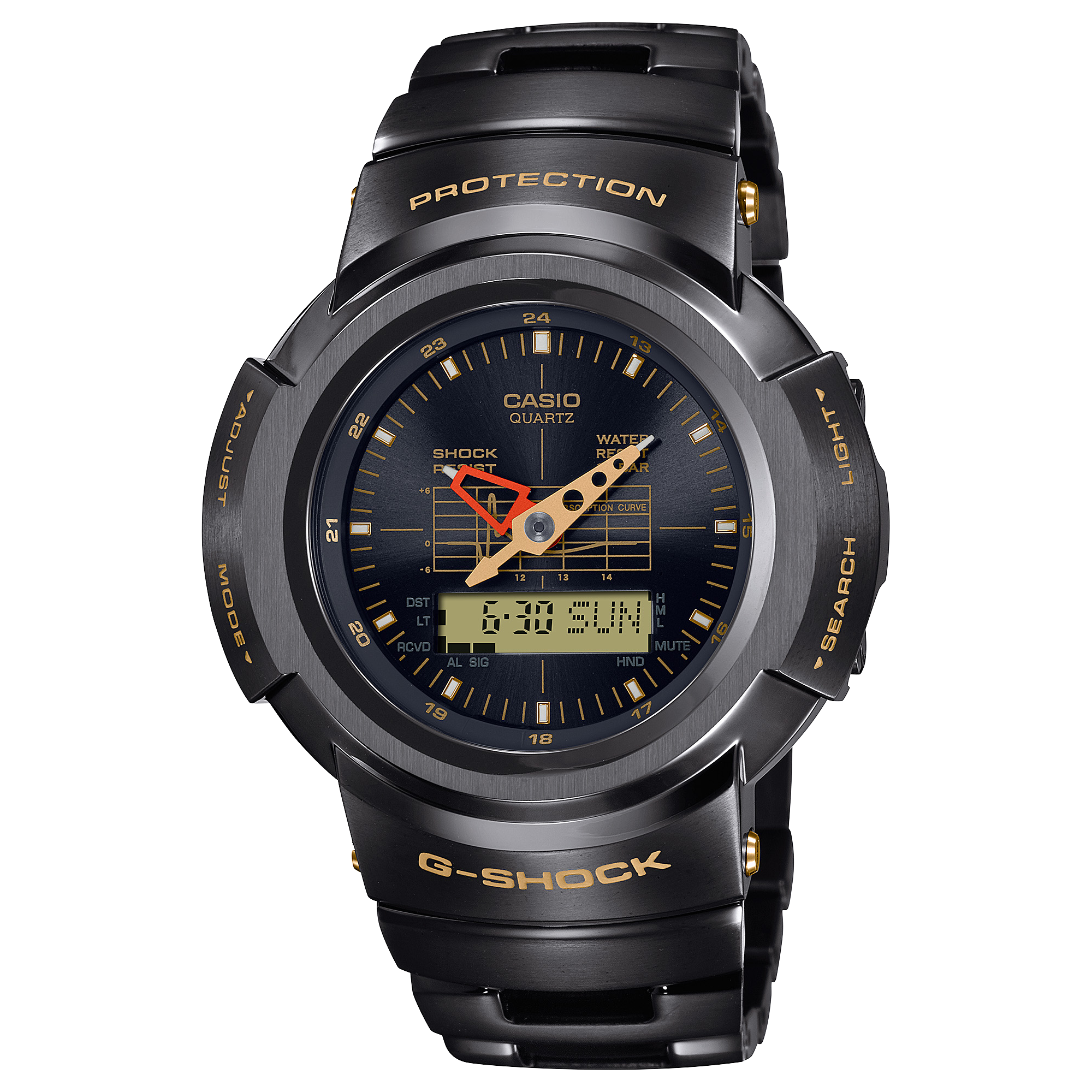

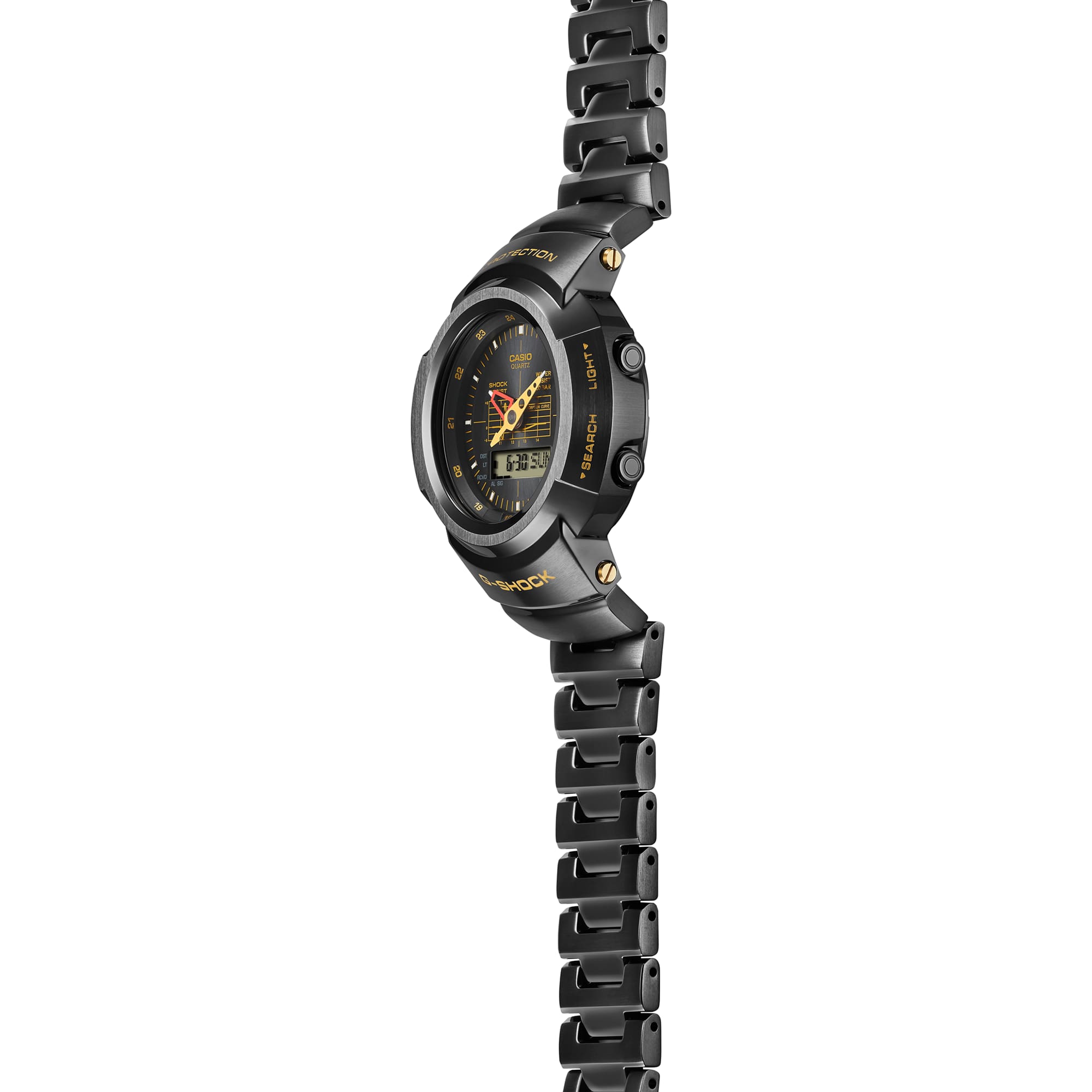

The iconic AW-500G, originally launched in 1989, has now been reissued in an eye-catching all-metal edition. The dial features the original shock-absorbent gold-print graphics, harking back to the early days of G-SHOCK. Current diamond-like carbon coating technology ensures a highly scratch-resistant stainless steel bezel and an elegant black stainless steel bracelet. This isn’t just a nostalgic revival. This is a watch equipped with the latest Casio technology for full functionality.

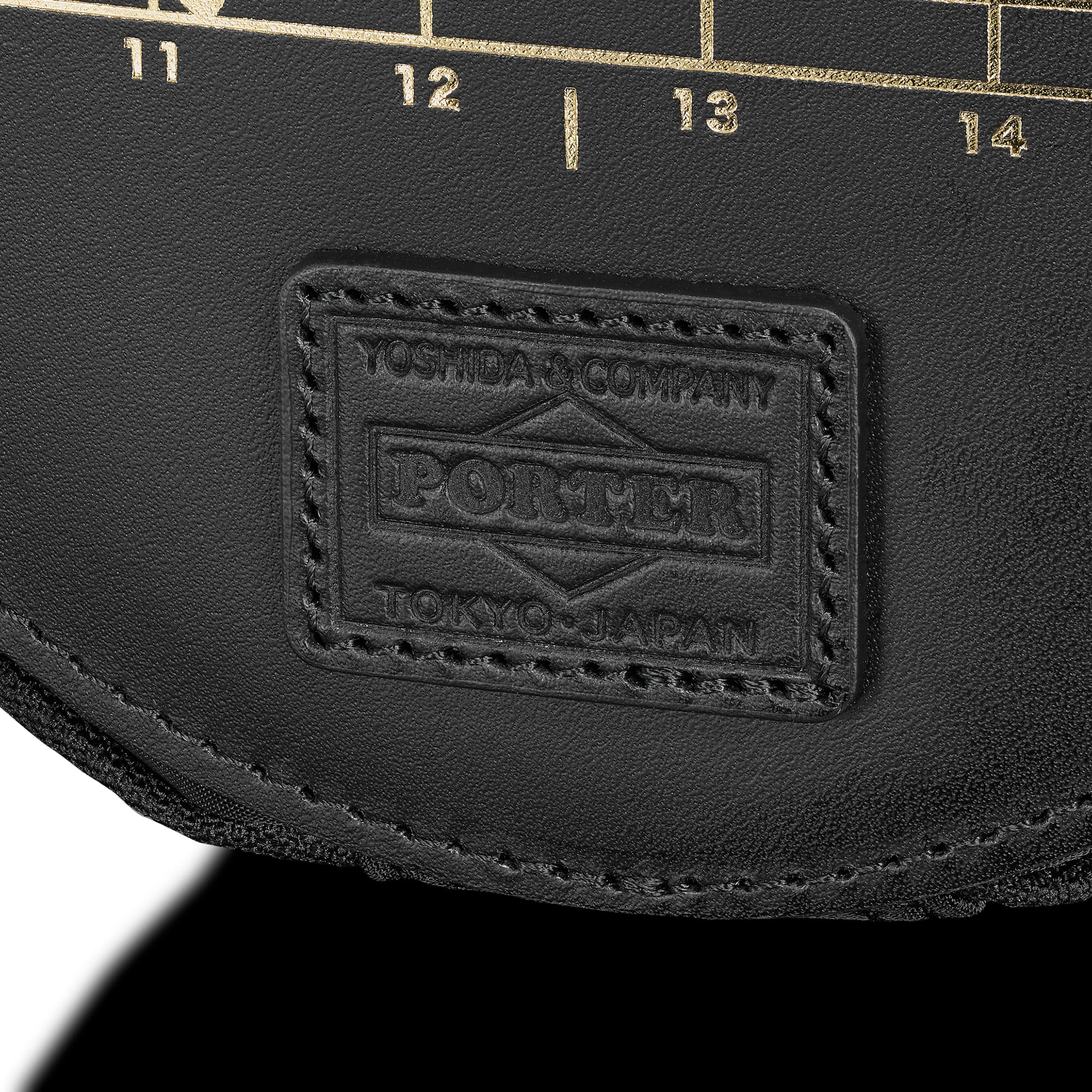

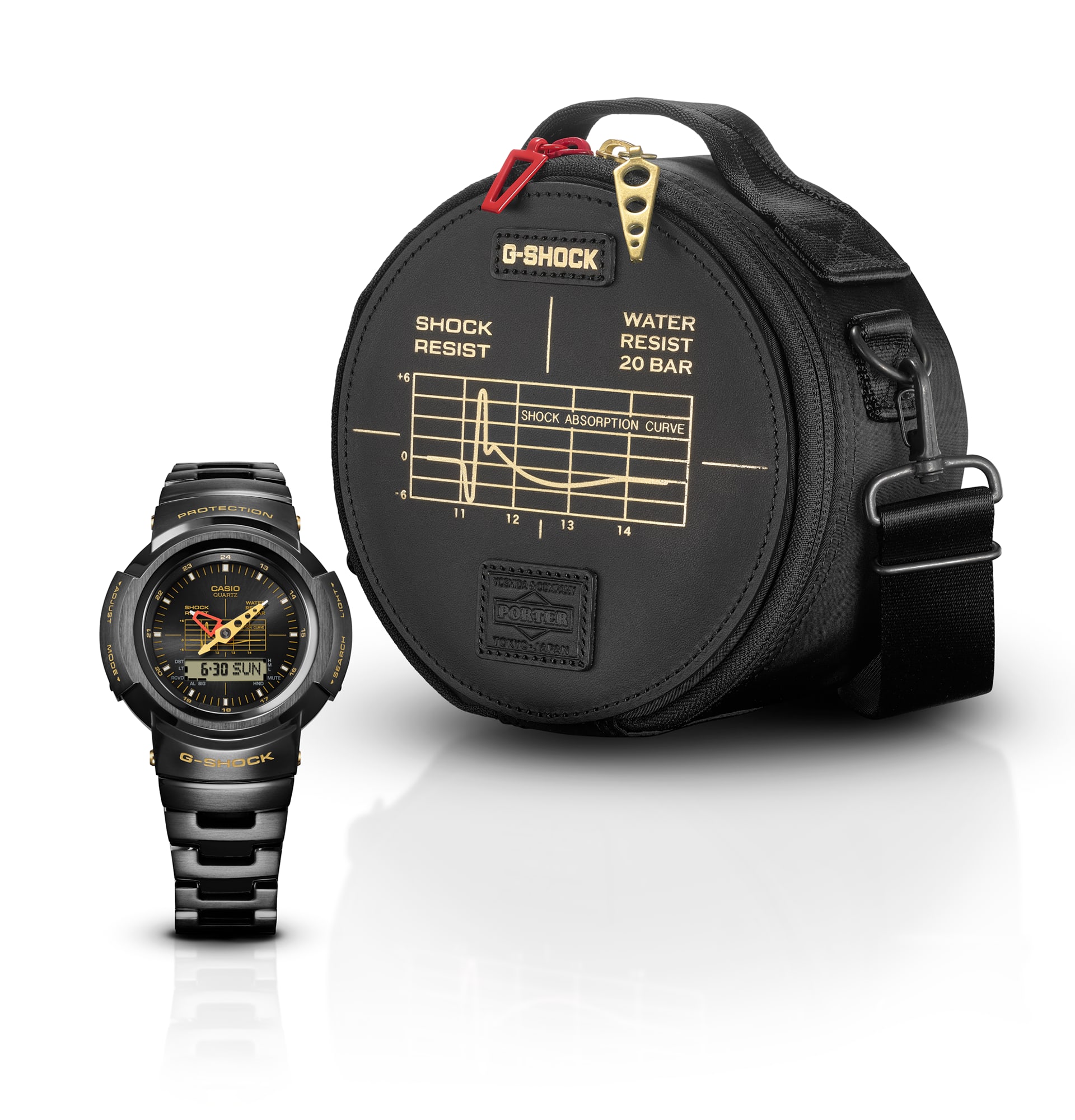

For this collaboration, PORTER provides a unique case that pays homage to the watch’s original graphics and design. The hinge is inspired by the red hour hand and the golden minute hand. The same shock resistance chart is embossed in gold on the top of the case.
PORTER
PORTER was introduced in 1962 as the flagship brand of Yoshida & Co. founded in 1935. PORTER aims to make bags that will be loved for a lifetime, producing bags “Made in JAPAN” and striving for excellence at every stage, from component selection to design and sewing.
The brand name was adopted by “PORTERS” who look after customers’ bags in hotels, indicating their closeness and understanding of bags.
Case dimensions (H x W x D)
51.8 × 44.5 × 14.2 mm
Weight
175 g
Case and bezel material
stainless steel
Strap
Steel strap stainless
Resistant strap
3-fold one-touch closure
Structure
Shock resistant
Waterproof
Waterproof up to 20 bar
Time adjustment
Radio-controlled watch; Multi Band 6
Power and battery life
Tough Solar (solar powered)
Glass
Mineral glass

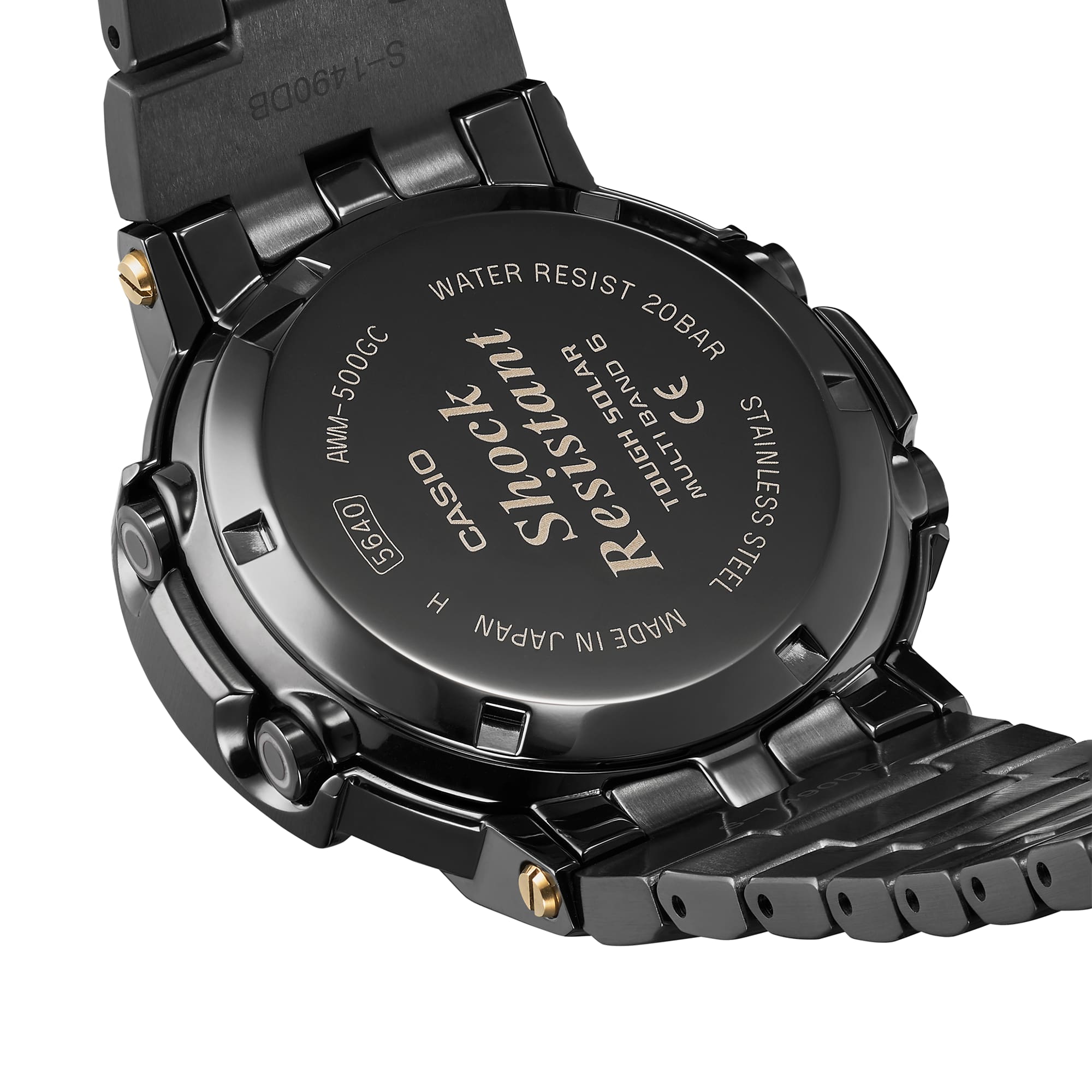

Back plate
Back with screw lock
Surface treatment
Coating similar to diamond
Miscellaneous
Neobrite
World Time
World Time 31 time zones* (48 cities + Coordinated Universal Time), activation/ turning off daylight saving time, switching from your Home City to your World Time City
Stopwatch
1/100-second stopwatch Measuring capability: 00’00”00~59’59”99 Measurement mode: elapsed time, split time, 1st and 2nd place times
Timer
Countdown timer Measurement unit: 1 second Countdown interval: 100 minutes Countdown start time setting range: 1 second to 100 minutes (1 second increments, 1 minute increments)
Audible Reminder / Time Signal
5 daily audible reminders (with countdown)
Time Signal
Light
Double LED light
LED light for the dial (fully automatic LED illumination, Super Illuminator, selectable illumination duration (1.5 or 3 seconds), luminescence)
LED backlight for the digital display (fully automatic LED lighting, Super Illuminator, selectable lighting duration (1.5 or 3 seconds), luminescence)
Light color
LED: white
Light color
LED: white
Calendar
Full automatic calendar (up to the year 2099)
Mute the volume
Turn the signal on/off button pressing sound
Energy saving function
Energy saving (hands stop to save energy when the watch is left in the dark)
Display/ battery status alert
Battery charge level indicator
Ride timing
Approximate battery run time: 11 months with rechargeable battery (operation period for normal use without exposure to light after charging), 28 months with rechargeable battery (operation period when stored in total darkness with the energy saving function activated after a full charge)
Accuracy
Accuracy: ±15 seconds per month (without signal calibration)
Other features
12/24 format hours
Hand shifting function (hands move to avoid blocking the display of digital display content).
Regular timekeeping:
Analog: 2 hands (hour, minute (hand moves every 20 seconds))
Digital: hour, minute, second, pm, month, date, day
Time adjustment details
Time calibration signals
Station Name: DCF77 (Mainflingen, Germany)
Frequency: 77.5kHz
Station Name: MSF (Anthorn, England)
Frequency: 60.0kHz
Station Name: WWVB (Fort Collins, United States)
Frequency: 60.0kHz
Station Name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima)/60.0 kHz (Fukuoka/Saga)
Station Name: BPC (Shangqiu City, Henan Province, China)
Frequency: 68.5 kHz
Time calibration signal reception
Automatic reception up to six* times a day (remaining automatic receptions are canceled when successful)
*5 times a day for Chinese calibration signal
Manual reception
The latest results of signal reception
AWM-500GC-1A
