Are you ready for a durable watch for the outdoors? Casio and Toyota are teaming up together for a new collaboration bringing together Team Land Cruiser Toyota Auto Body (TLC) and G-SHOCK.
This watch takes the MUDMAN design, known for its maximum performance in the most difficult conditions, and combines it with the spirit of challenge that characterizes the TLC, veteran of the most difficult race in the world, the Dakar Rally.

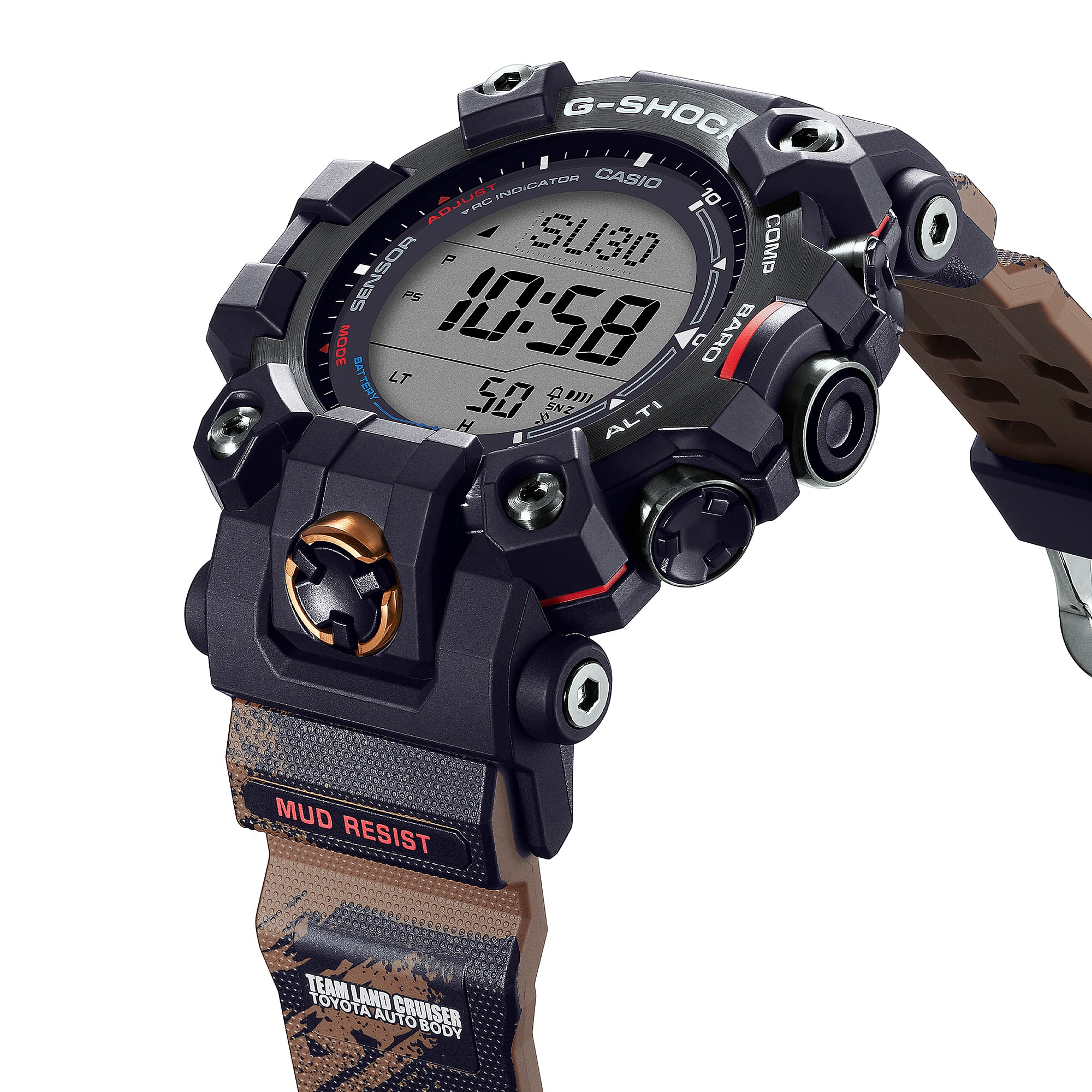

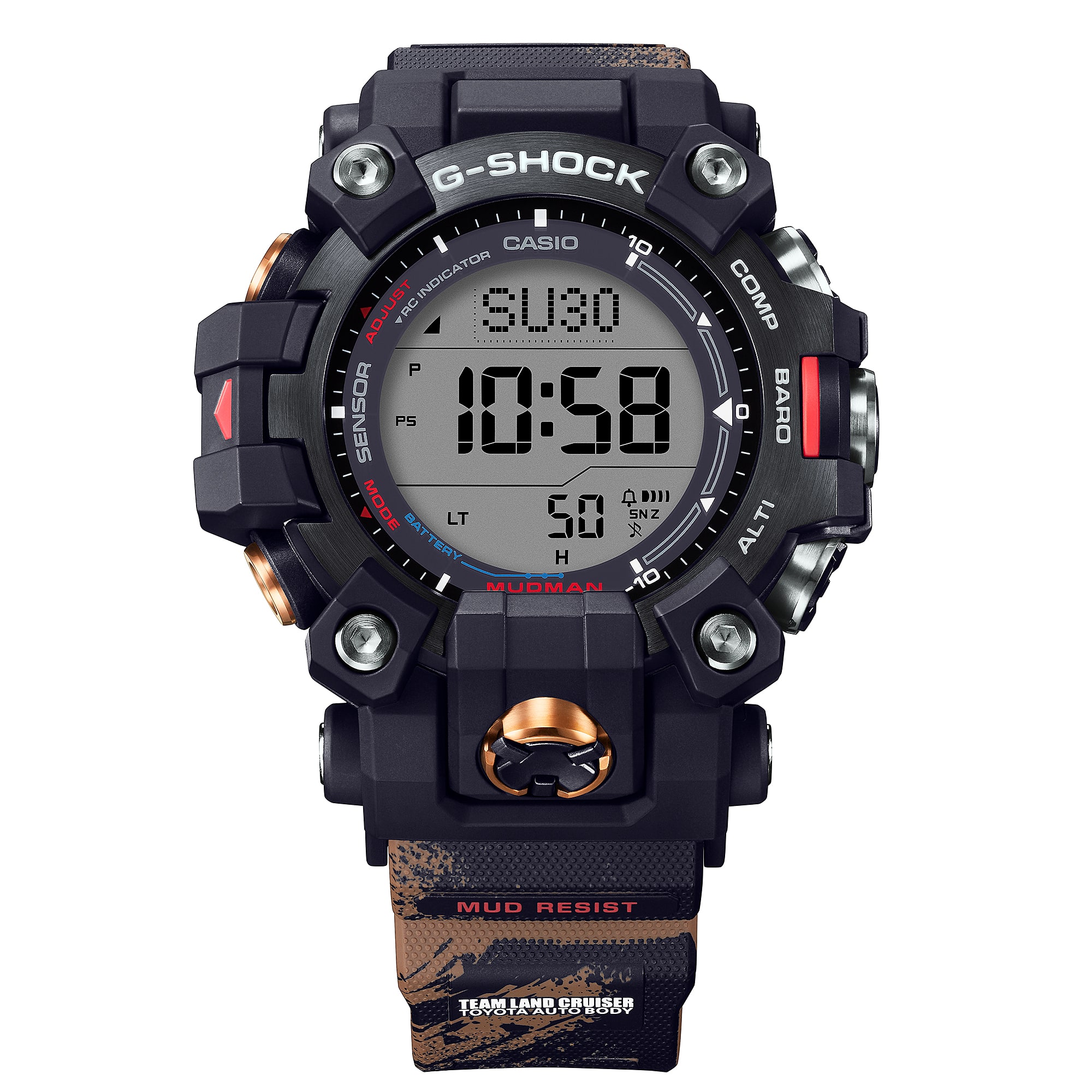

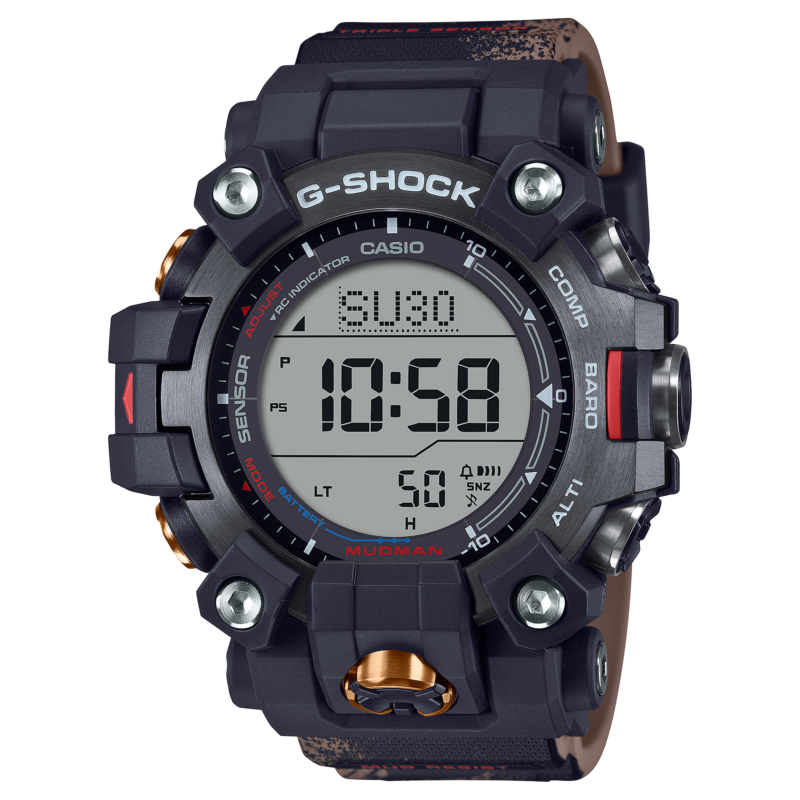

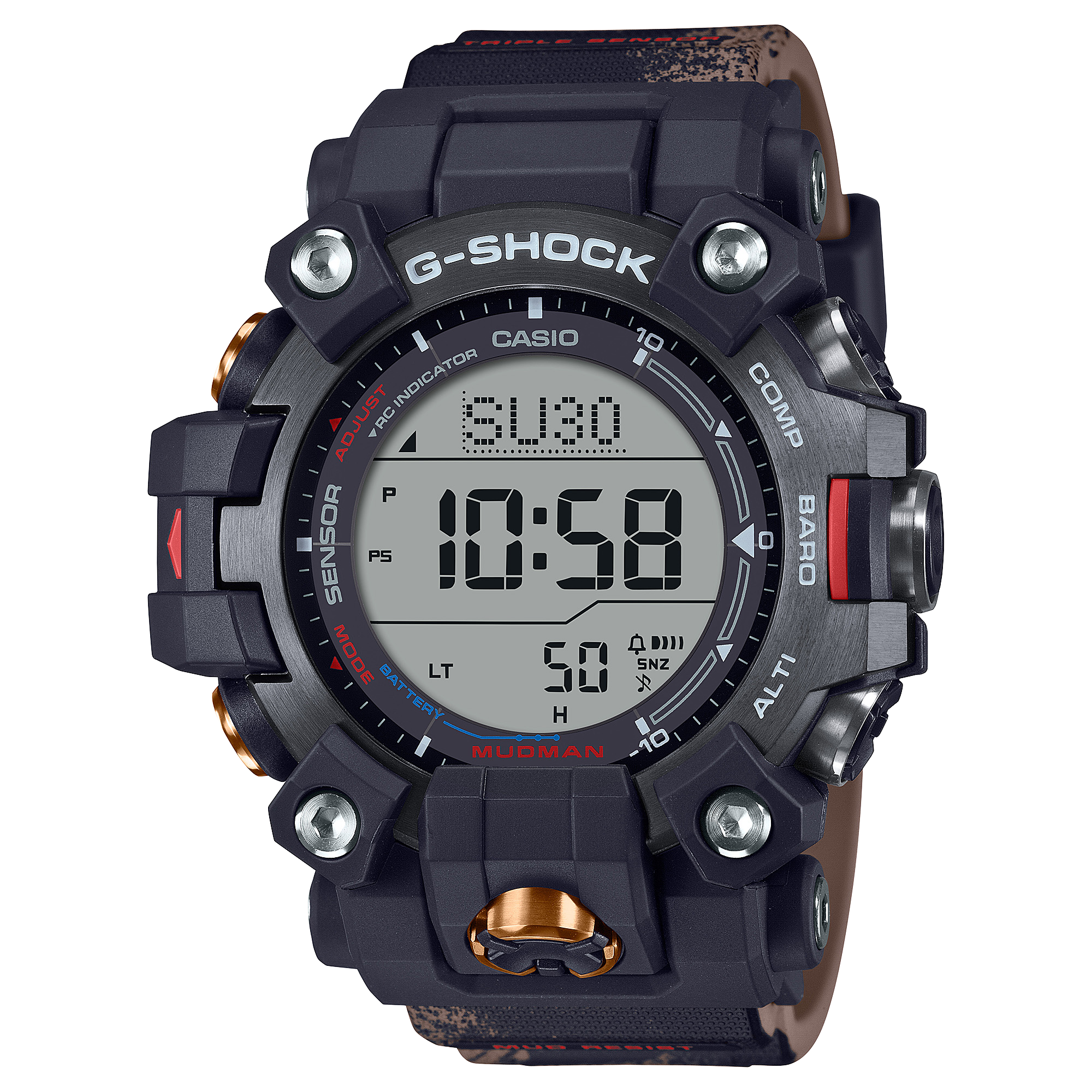

The MUDMAN GW-9500, with its Carbon Core Guard construction, is a dust and mud resistant watch, and equipped with a duplex LCD, offering exactly what you will need to face any challenge.

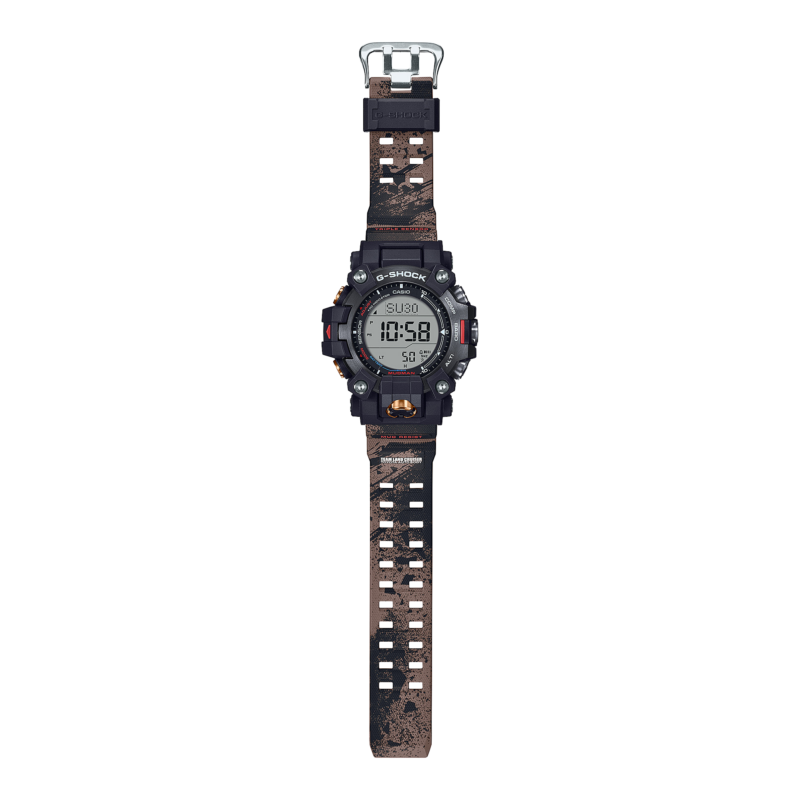

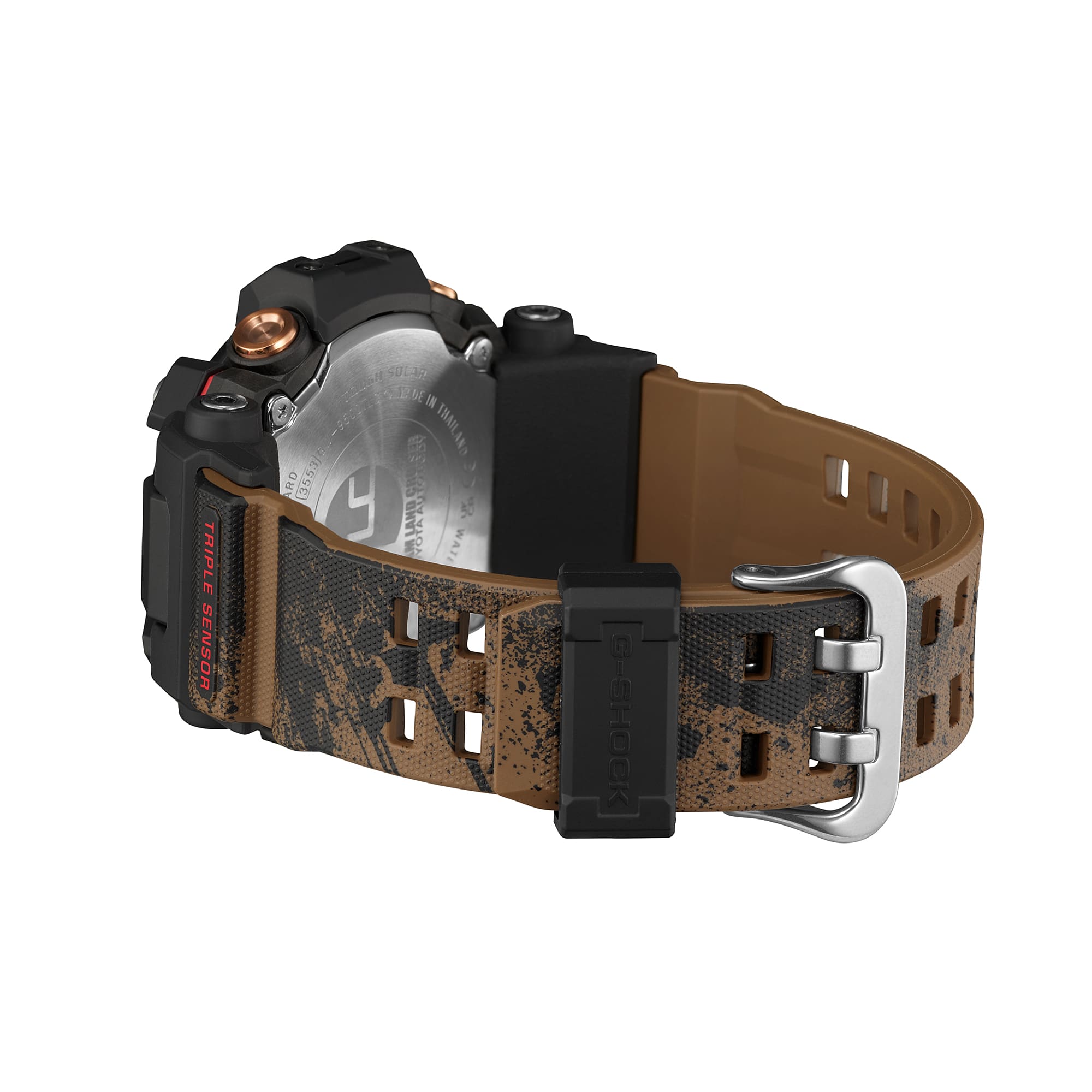

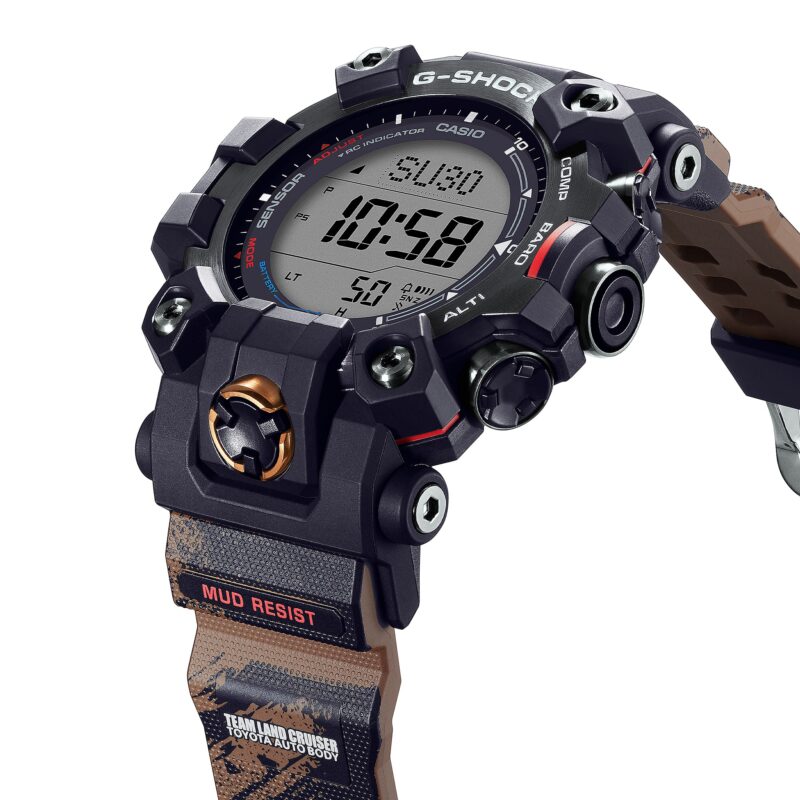

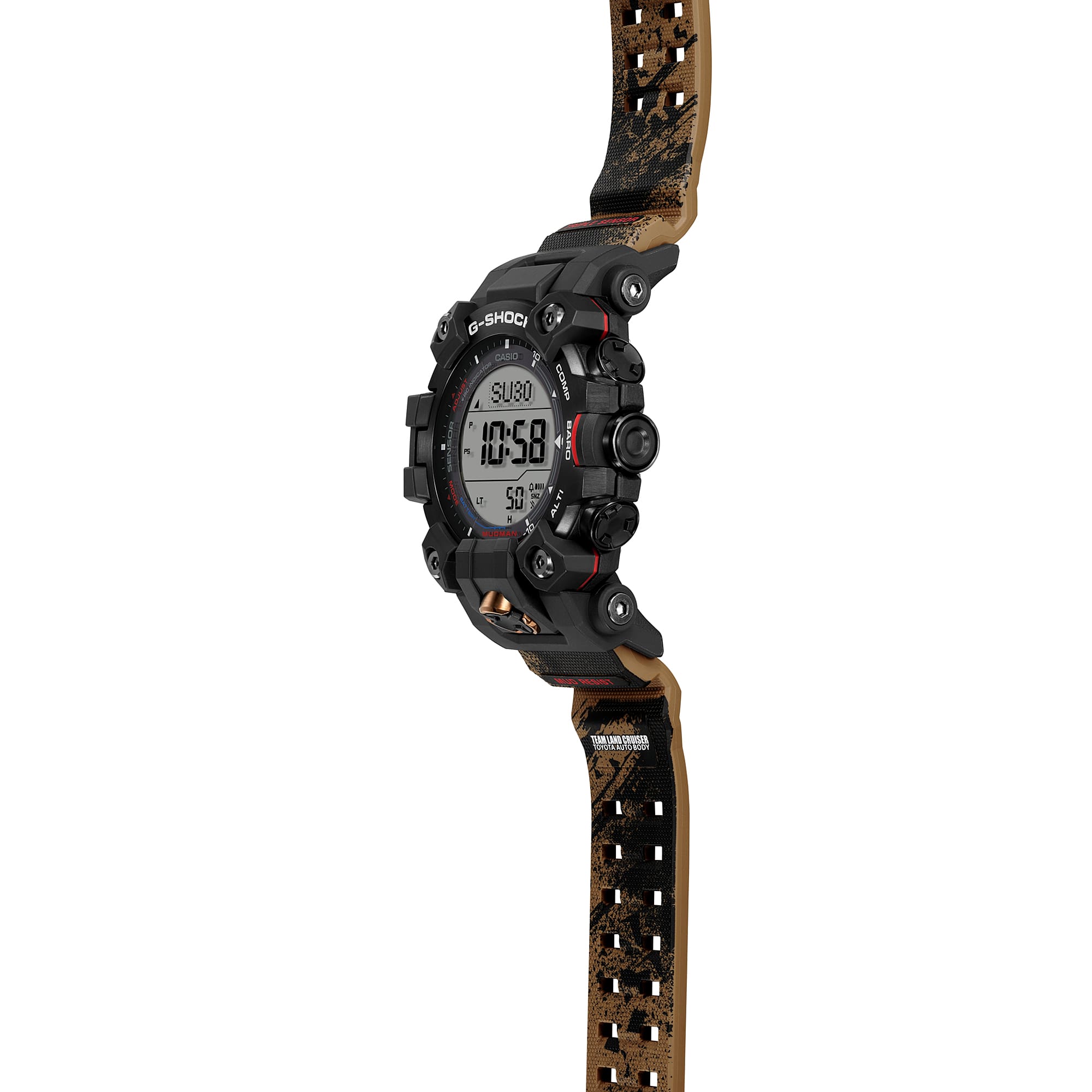

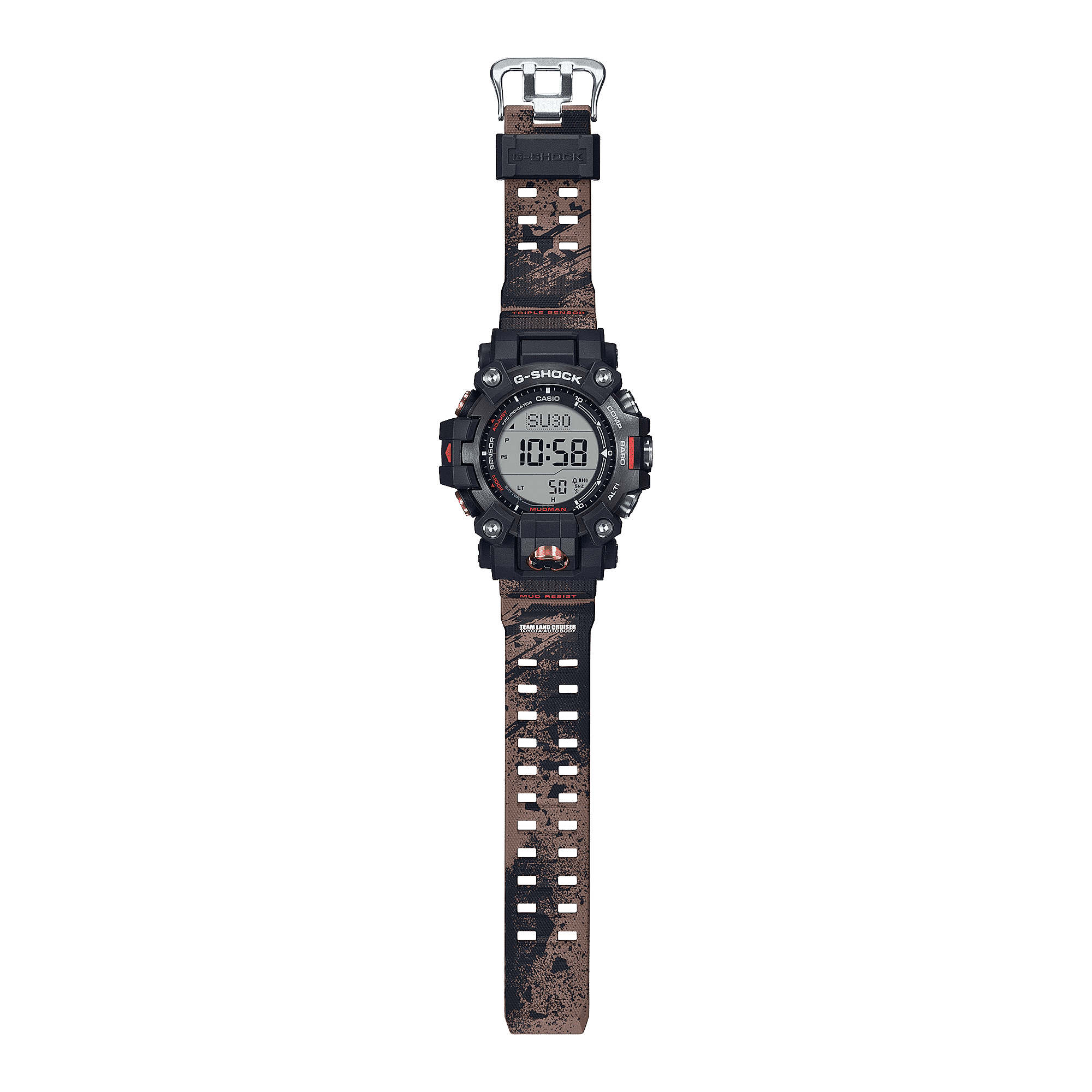

Designed to capture the feeling of racing across desert sands, the sand-colored strap is printed with a black sketch pattern that evokes the tracks left by racing drivers. The stainless steel bezel components, a first for the GW-9500 model, have been subjected to an IP black treatment to ensure safety and resistance.

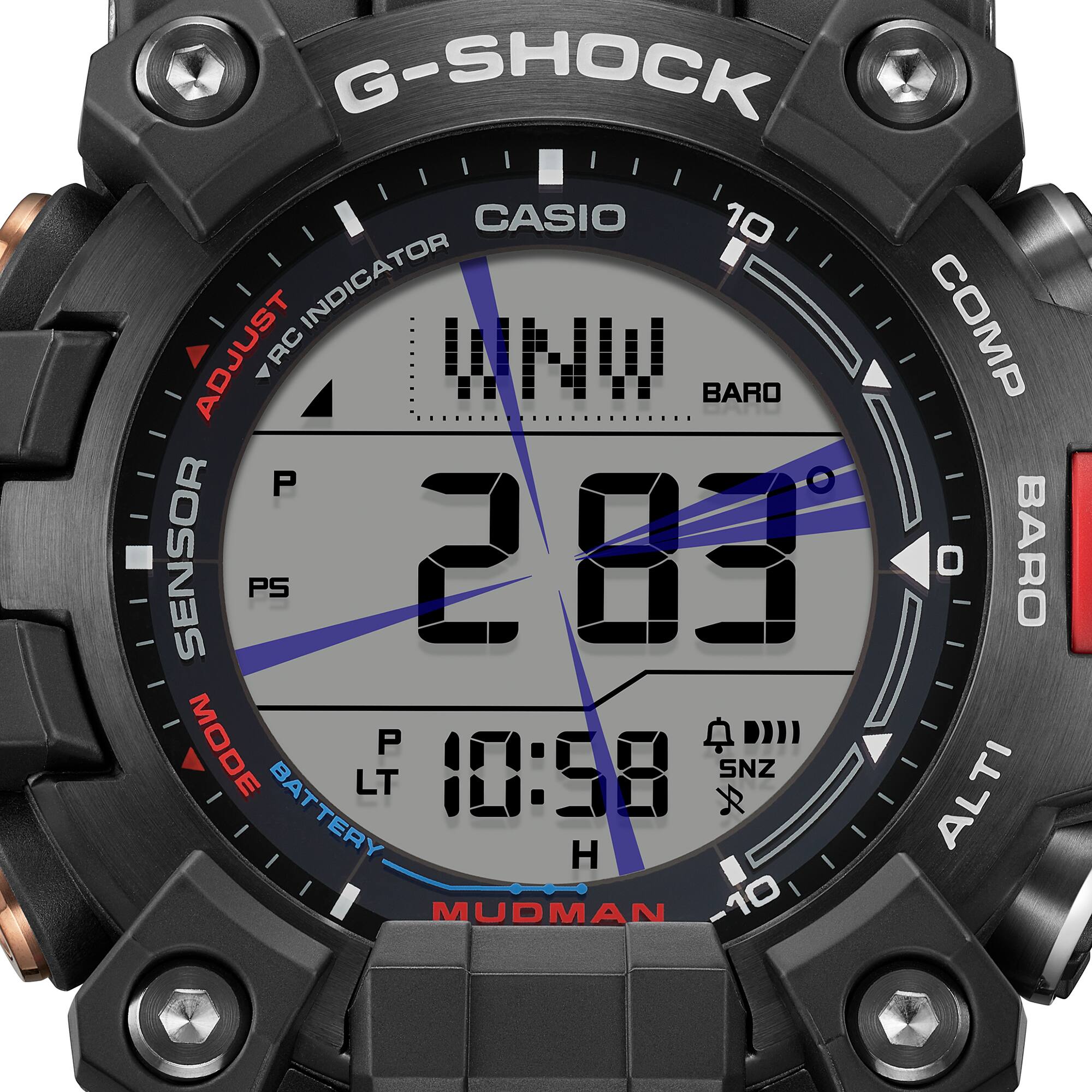

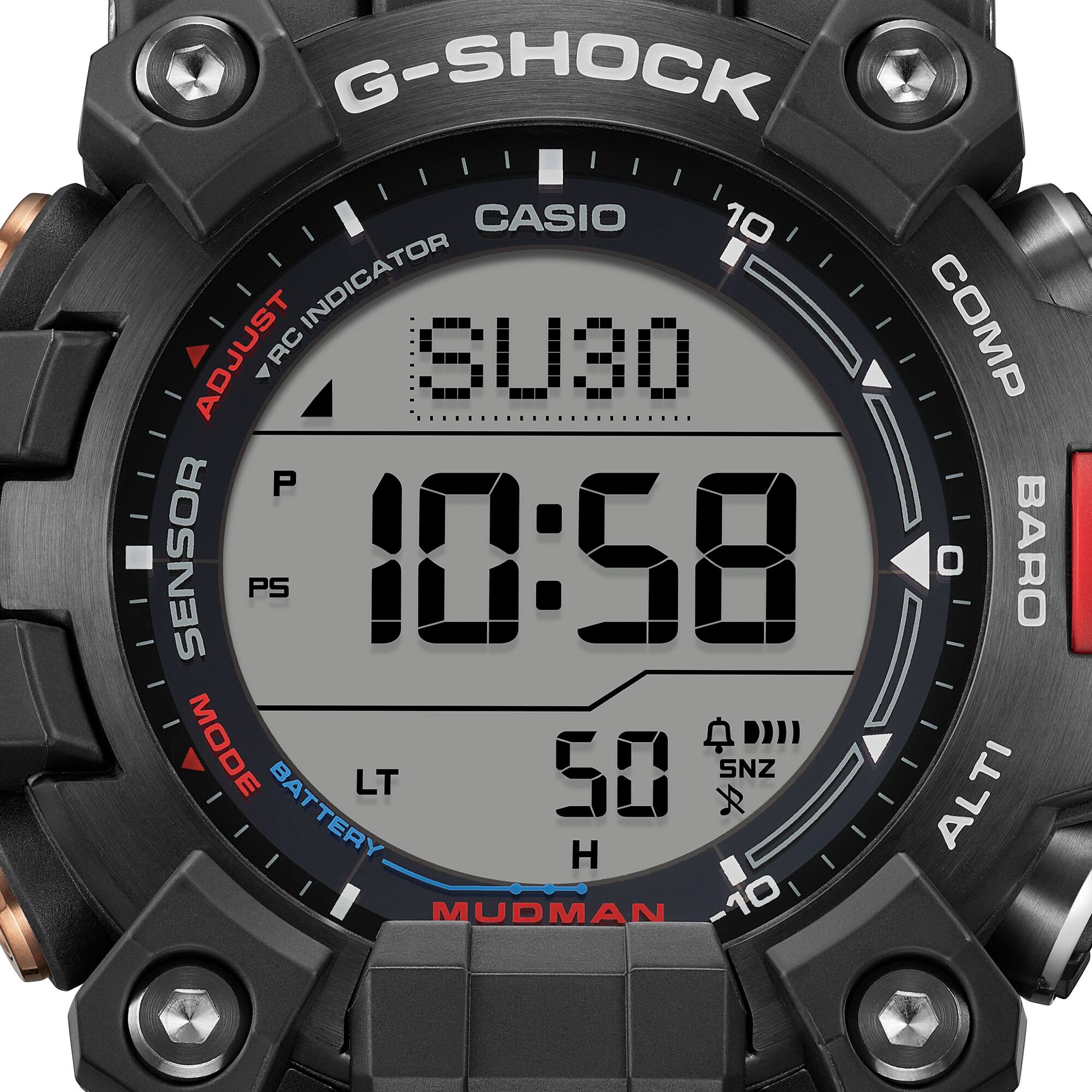

The duplex LCD display offers a separate compass graphic layer for a larger digital compass display, allowing you to more easily navigate to your destination in emergency situations. Radio-controlled calibration provides the precision time needed for success for teams facing the toughest conditions.

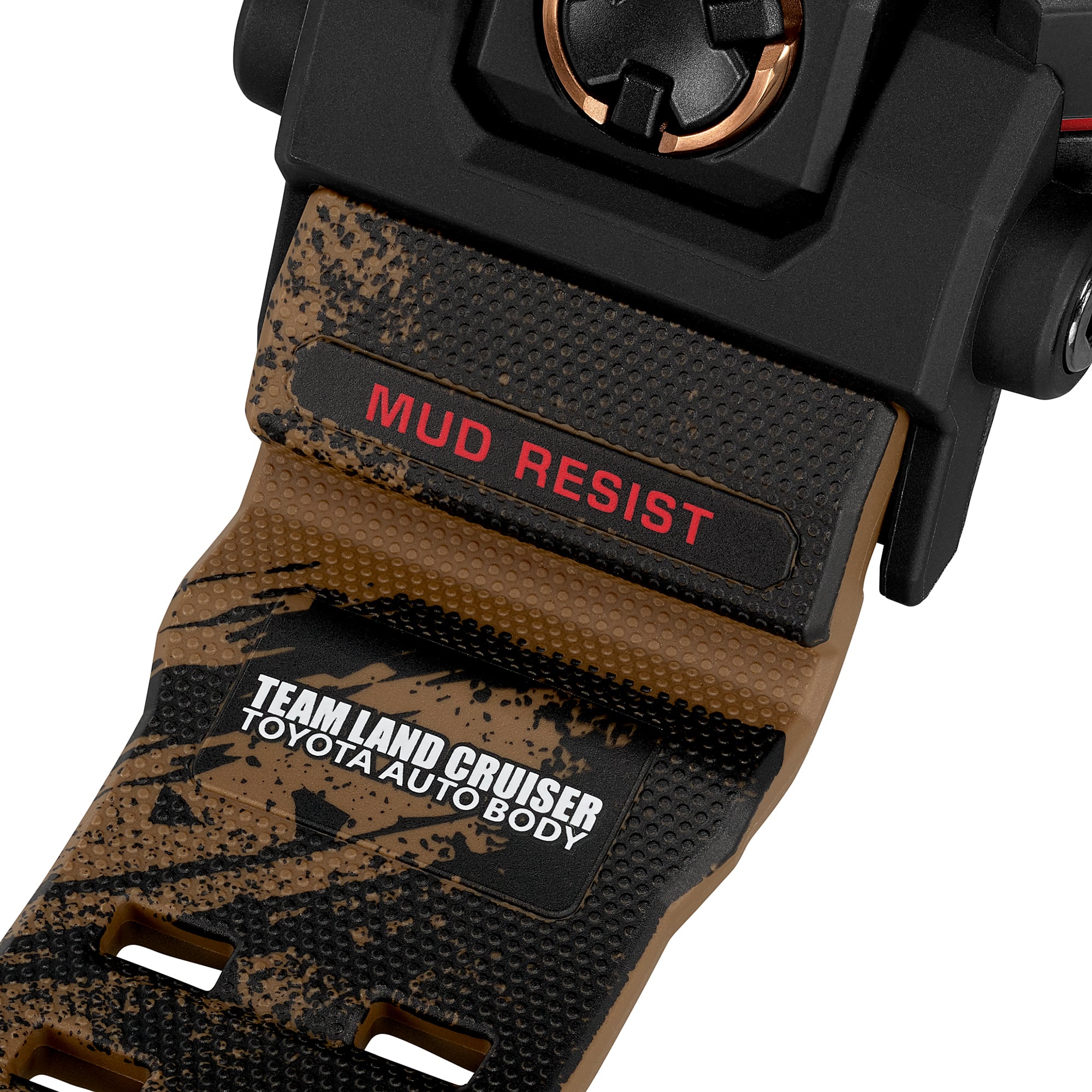

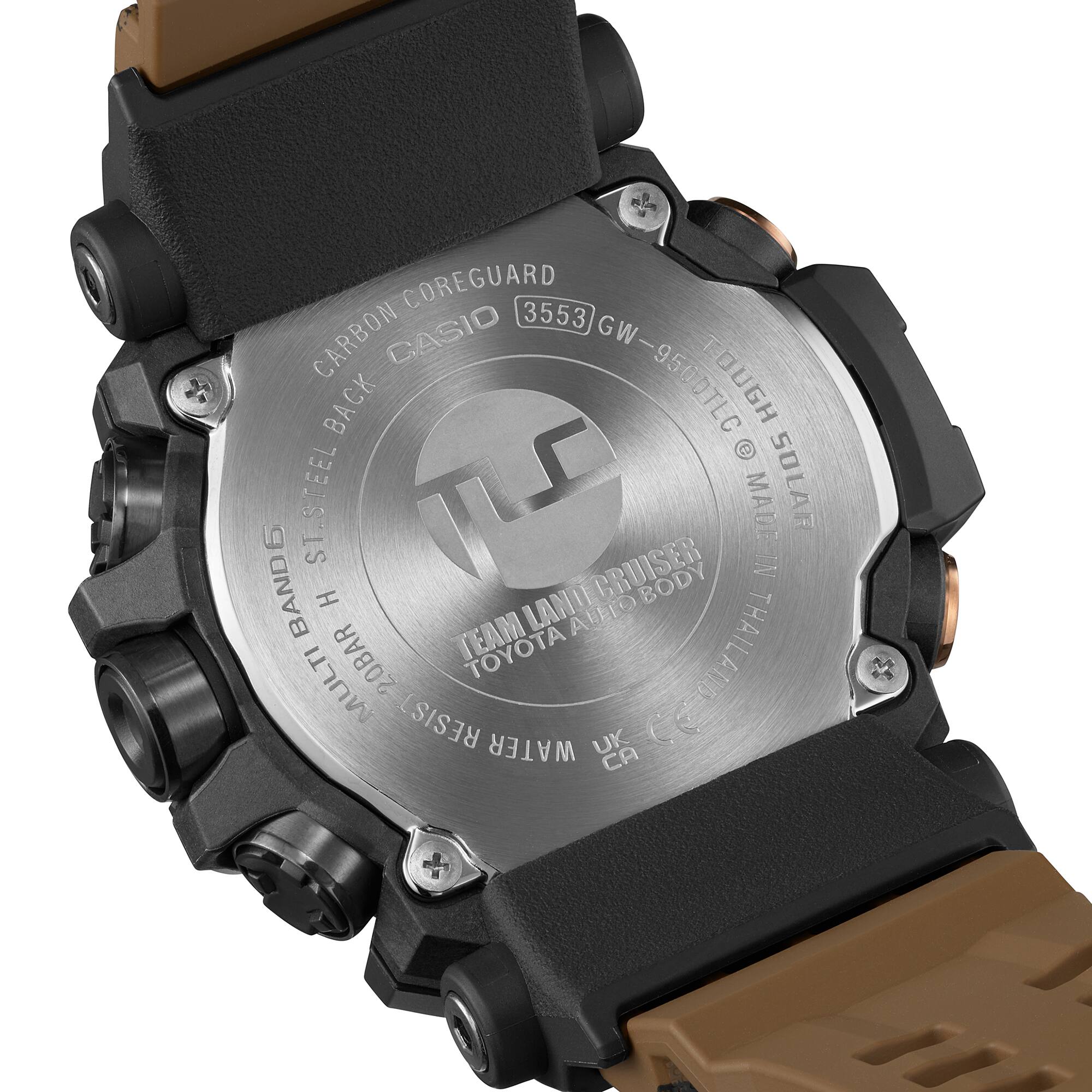

The TLC team colors (blue, white and red) highlight the design, while the team logo on the strap and caseback adds the finishing touches for a special collaboration that celebrates the two teams.
TEAM LAND CRUISER TOYOTA AUTO BODY
The corporate team of Toyota Auto Body, a Toyota Group manufacturer of minivans, commercial vehicles and SUVs. TLC has participated in the Dakar Rally, considered the most extreme rally in the world, with the Land Cruiser every year since 1995.
Case dimensions (H x W x D)
56.7 × 52.7 × 14.8 mm
Weight
88 g
Case and bezel material
Bio-based resin/Stainless steel
Strap
Bio-based resin strap
Structure< /h2>Shock resistant
Mud resistant
Carbon Core Guard structure
Waterproof
Waterproof up to 20 bar
Time adjustment
Radio controlled clock; Multi Band 6
Power and battery life
Tough Solar (solar powered)
Sensor function
Digital compass
Measures and displays direction as one of 16 points
Measurement range: 0 to 359°
Unit of measurement: 1°
60 seconds continuous measurement
Graphic direction pointer
Bidirectional calibration
Magnetic declination correction
Heading memory

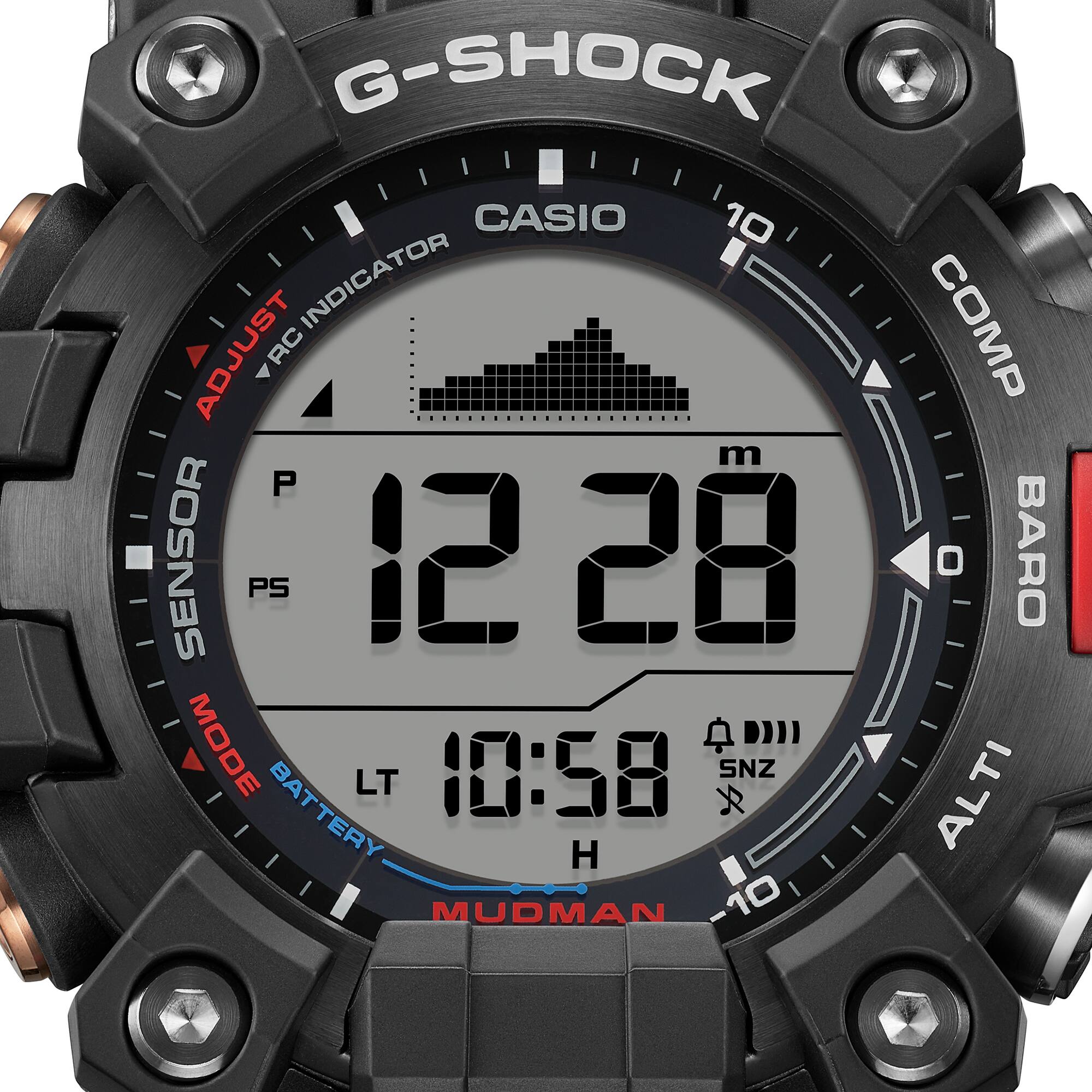

Altimeter
Measurement range: -700 to 10,000 m (-2,300 to 32,800 ft)
Unit of measurement: 1 m (5 feet)
Manual memory measurements (up to 30 records, each including altitude, date, time)
Automatic recording data (high/low altitudes, automatic cumulative ascent and descent)
Route recording data (up to 14 records of high/low altitudes, automatic cumulative ascent and descent of particular routes)
Other: Relative altitude values (-3,000 to 3,000 m),
Selectable measurement interval: 5 seconds or 2 minutes
*1 second for the first 3 minutes only
*Conversion between meters (m) and feet (ft)

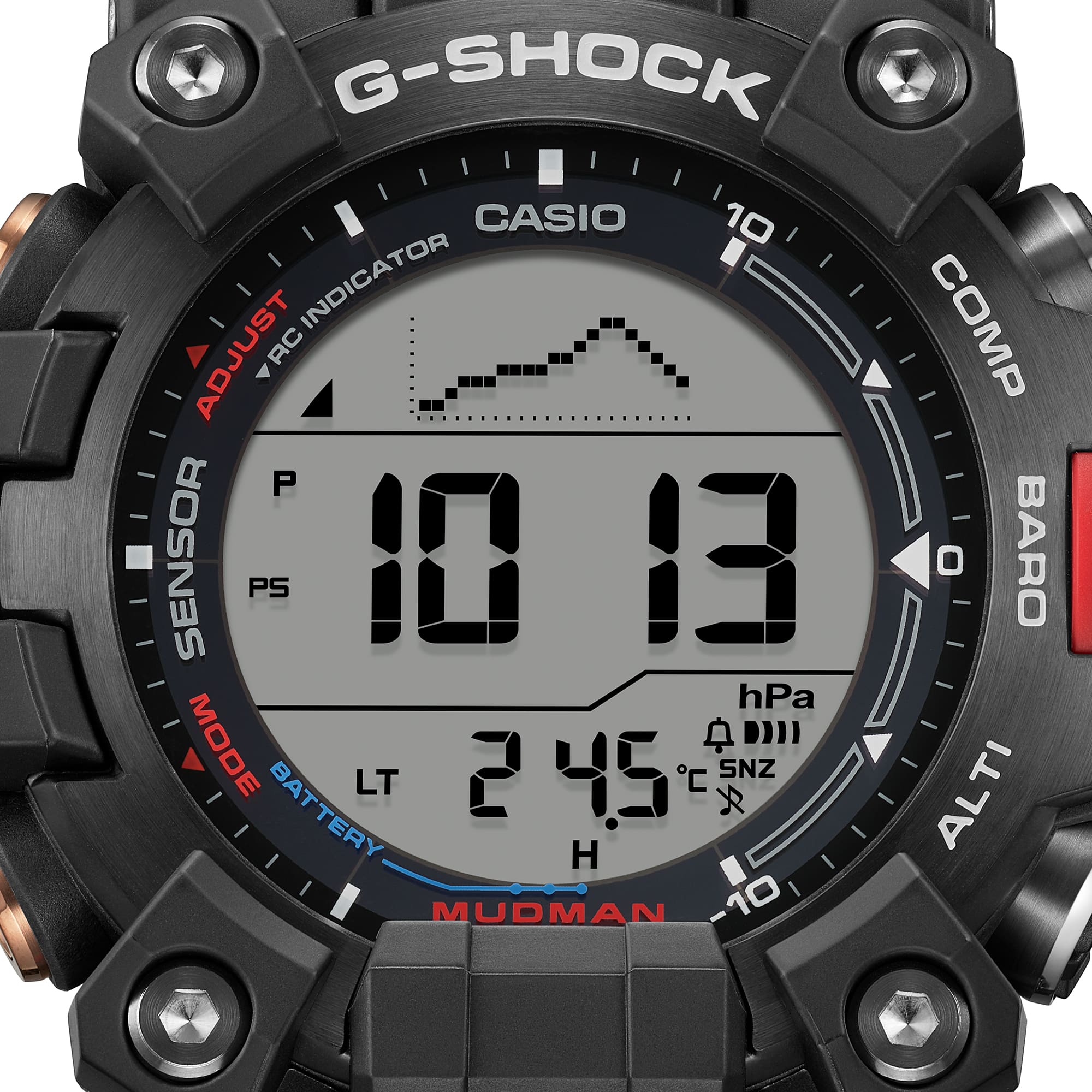

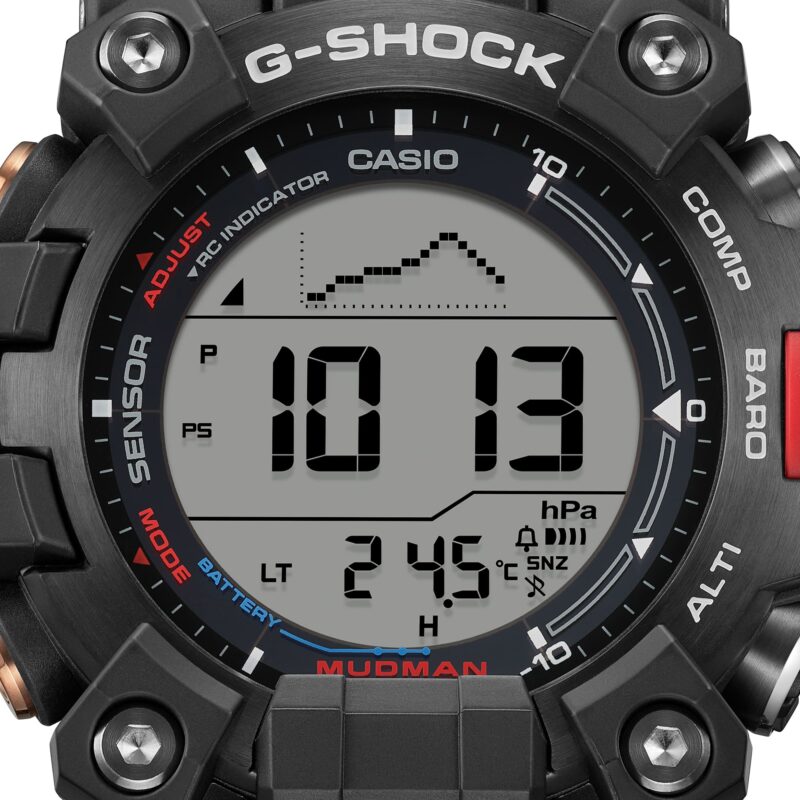

Barometer
Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg)
Display unit: 1 hPa (0.05 inHg)
Barometric pressure trend graph (last 42 hours of recordings)
Barometric pressure difference graph
Barometric pressure trend information alert (beeper and arrow indicate significant pressure changes)
*Conversion between hPa and inHg
Thermometer
Display range: -10 to 60°C (14 to 140°F)
Display unit: 0.1°C (0.2°F)
*Conversion between Celsius (°C) and Fahrenheit (°F)
Glass
Mineral glass
Surface treatment
Black bezel with ion plating
Adjustable strap
From 145 to 215 mm
World time
World time
31 time zones (48 cities + Coordinated Universal Time), daylight saving time on/off
Sunrise and sunset display
Sunrise and sunset time display
Sunrise and sunset time for specific date
Stopwatch
Tenth-of-second stopwatch
Measuring capacity: 999:59’59.9”
Measurement modes: elapsed time, split time, 1st and 2nd place times
Timer
Countdown timer
Unit of measurement: 1 second
Countdown start time setting range: 24 hours
Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments)
Sound Reminder / Time Tone
5 reminders daily sounds (with 1 delayed sound reminder)
Time signal
Light

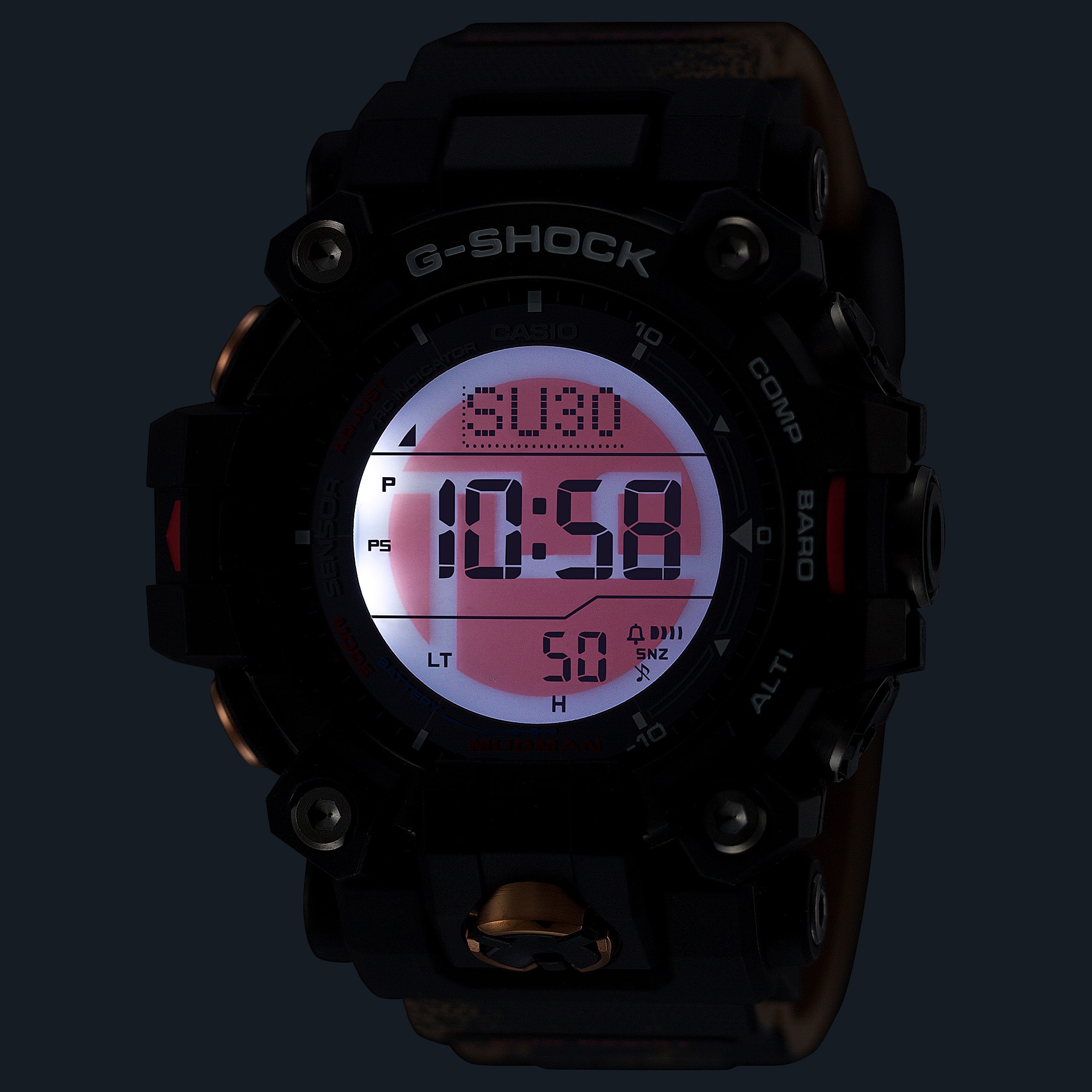

LED backlight (Super Illuminator)
Fully automatic LED lighting, selectable lighting duration (1.5 seconds or 3 seconds), luminescence
Light color
LED: white
Calendar
h2>Full automatic calendar (up to the year 2099)
Muting the volume
Enabling/disabling the button press sound
Display function energy saving
Energy saving (turns off the display when the watch is left in the dark)
Battery status display/alert
Battery level indicator
Ride Timing
Approximate battery run time:
6 months with rechargeable battery (operation period with normal use without exposure to light after fully charged)
26 months with rechargeable battery (operating period when stored in total darkness with the energy saving function activated after full charge)
Accuracy
Accuracy: ±15 seconds per month (without signal calibration)
Other features
12/24 hour format
Regular timekeeping:
hour, minute, second, pm, month, date, day
Duplex LC display
Details on time adjustment
Calibration signal reception of the time
Automatic reception up to six* times a day (remaining automatic receptions are canceled when successful)
*5 times a day for Chinese calibration signal
Manual reception
The latest signal reception results
Time calibration signals
Station Name: DCF77 (Mainflingen, Germany)
Frequency: 77.5kHz
Station Name: MSF (Anthorn, England)
Frequency: 60.0kHz
Station Name: WWVB (Fort Collins, United States)
Frequency: 60.0kHz
Station Name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima)/60.0 kHz (Fukuoka/Saga)
Station Name: BPC (Shangqiu City, Henan Province, China)
Frequency: 68.5 kHz
GW-9500TLC-1
